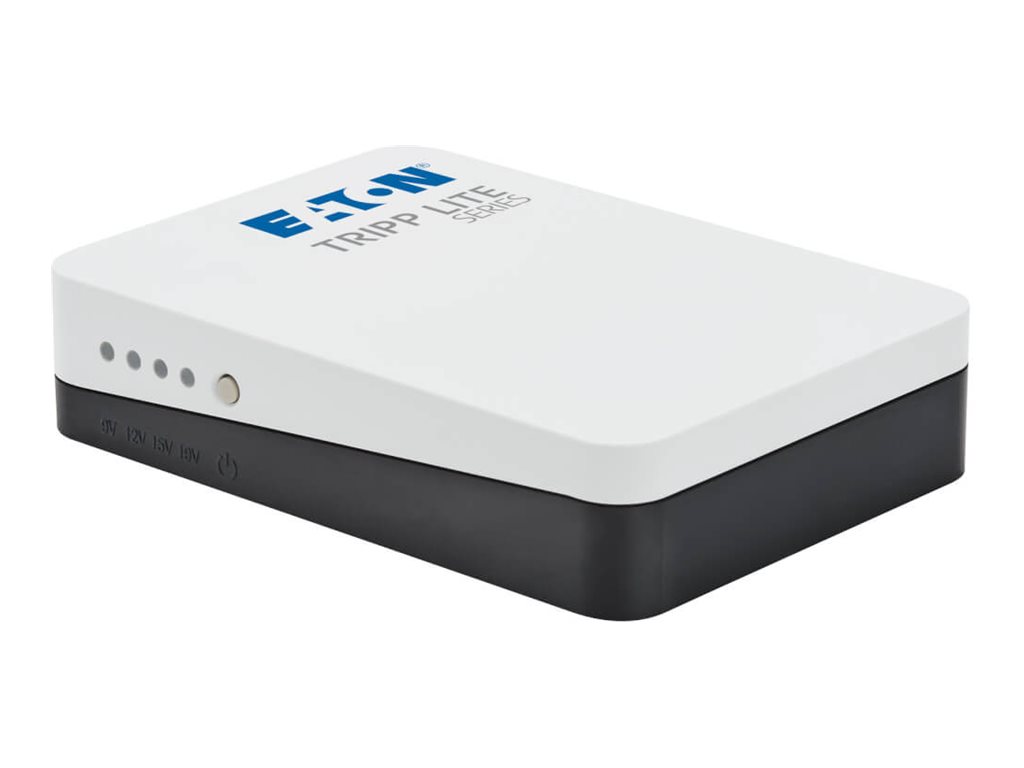

100-240V, 36VA/36W, Lithium-Ion Battery, NEMA 5-15P Plug, 4 Barrel Connectors - UPS - AC 100/110/115/120/230/240 V - 36 Watt - 36 VA - output connectors: 1 - black, white
Not for sale in the USA until further notice.
Desktop Battery Backup Keeps Critical Home Equipment Running During Power Outages
You have devices in your home that need to be operational at all times, especially when the power is out. The Internet router that keeps you connected to the world. The IP cameras that help keep you safe. The home assistants, such as the Amazon Echo and Google Nest, and the smart controllers that maintain lighting and temperature. The BC36ML AC-to-DC battery backup not only keeps those devices up and running during a power outage, but it also maintains your ability to control them remotely.
Compatible with a Wide Range of Essential Home Devices
The BC36ML single-device mini UPS system is ideal for routers, modems, wi-fi extenders, IP cameras, access control devices, VoIP phones, medical alert solutions, portable computer monitors and other low-power devices that may need battery backup. It replaces the standard AC power adapter provided with your device, which ensures power protection without additional equipment.
Dual Lithium-Ion Batteries Ensure Reliable Backup Power
This 36V battery backup features two 2200mAh lithium-ion batteries that ensure continuous operation for one connected device at a time in your home office or residential application. The cold-start function also allows the unit to be used as a power bank.
Adaptable to Your Power Needs
The BC36ML allows you to select the appropriate output DC voltage corresponding to your equipment: 9V/3A, 12V/3A, 15V/2.4A or 19V/1.9A (12V is the default). It features an attached output cord and four barrel adapters (6.3 x 3.0 mm, 4.75 x 1.7 mm, 5.5 x 2.1 mm, 5.5 x 2.5 mm) that take the place of your connected device's power cord. Just connect the BC36ML to an AC wall outlet using the included input cord with NEMA 5-15P plug.
Recommended for Home Office or Residential Purposes
Easy-to-read LED indicators let you at a glance which output voltage you've selected and how much battery capacity remains in the BC36ML. The unit is small, silent and stylish to fit inconspicuously into your home or business environment. It's easy to set up in just a few minutes.
The Eaton Tripp Lite Series Home Network Battery Backup ensures your devices remain powered during outages with a robust 36VA/36W power capacity and a lithium-ion battery that offers up to 10.8 minutes of run time at full load, extending to 30.4 minutes at half load. Its quick 6 hr recharge time gets your system back up and running in no time.
Designed to safeguard your home network against power irregularities, this UPS features overcurrent, overheat, and overvoltage protection. The inclusion of remote control capabilities allows for easy management of your power settings, ensuring your devices are protected in any situation.
With an integrated power cable and an additional NEMA 5-15P power cable, both extending up to 91 cm, this backup battery offers flexible installation options. The unit's external form factor and multiple DC output voltages (9/12/15/19 V) support a wide range of home network configurations.
Main Specifications | |
---|---|
Product Description | Eaton Tripp Lite Series Home Network Battery Backup - 100-240V, 36VA/36W, Lithium-Ion Battery, NEMA 5-15P Plug, 4 Barrel Connectors - UPS - 36 Watt - 36 VA |
Device Type | UPS - external |
Weight | 12.34 oz |
Input Voltage | AC 100/110/115/120/230/240 V |
Output Voltage | DC 9 / 12 / 15 / 19 V |
Power Capacity | 36 Watt / 36 VA |
Input Connectors | Power NEMA 5-15P |
Battery | Lithium ion |
Batteries Qty | 2 |
Run Time (Up To) | 10.8 min at full load |
Included Accessories | 4 barrel output connectors |
Color | Black, white |
Dimensions (WxDxH) | 3.7 in x 5.4 in x 1.2 in |
Manufacturer Warranty | 2-year warranty |
General | |
Device Type | UPS - external |
Color | Black, white |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Miscellaneous | |
Included Accessories | 4 barrel output connectors |
Cables Included | Power cable - integrated - 3 ft ¦ Power cable (NEMA 5-15P) 3 ft |
Features | Overcurrent protection, overvoltage protection, overheat protection, remote control, LED indicators, cold-start function |
Compliant Standards | CAN/CSA-C22.2 No. 62368-1, UL 62368-1, FCC Part 15 Class B, REACH, RoHS, WEEE, TUV US |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 95 °F |
Battery | |
Quantity | 2 |
Technology | Lithium ion |
Run Time (Up To) | 10.8 min at full load ¦ 30.4 min at half load |
Recharge Time | 6 hours |
Power Device | |
UPS Technology | Off-line |
Input Voltage | AC 100/110/115/120/230/240 V |
Frequency Required | 50/60 Hz |
Input Connectors | Power NEMA 5-15P |
Output Voltage | DC 9 / 12 / 15 / 19 V |
Power Capacity | 36 Watt / 36 VA |
Dimensions & Weight | |
Width | 3.7 in |
Depth | 5.4 in |
Height | 1.2 in |
Weight | 12.34 oz |
