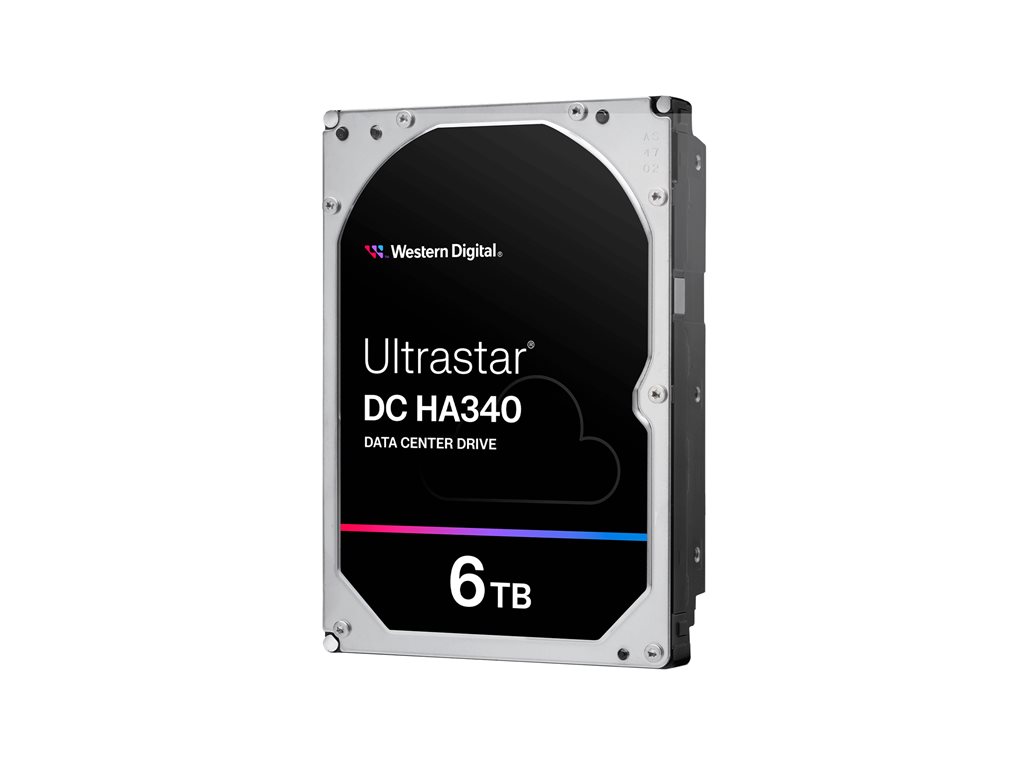

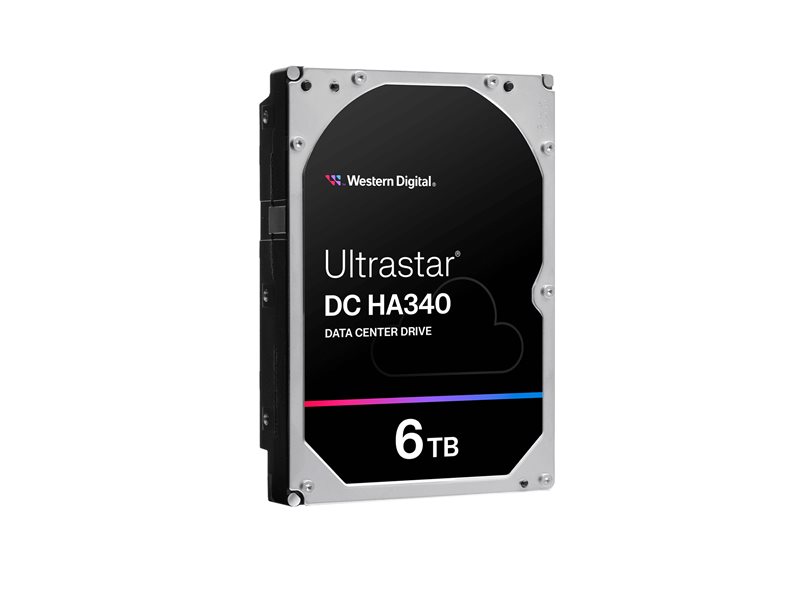

Western Digital - WD Ultrastar DC HA340 WUS721206BLE6L4
Hard drive - Data Center - 6 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 256 MB
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | WD Ultrastar DC HA340 WUS721206BLE6L4 - hard drive - Data Center - 6 TB - SATA 6Gb/s |
| Type | Hard drive - internal |
| Capacity | 6 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Buffer Size | 256 MB |
| Spindle Speed | 7200 rpm |
| Drive Class | Data Center |
| Features | Advanced format 512e, non-volatile cache, Dual Stage Actuator (DSA), Rotational Vibration (RV) compensation technology, Conventional magnetic recording (CMR), 24x7 continuous operation, NAS compatible, RAID ready |
| Dimensions (WxDxH) | 4 in x 5.8 in x 1 in |
| Weight | 25.22 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Hard drive - internal |
| Capacity | 6 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Features | Advanced format 512e, non-volatile cache, Dual Stage Actuator (DSA), Rotational Vibration (RV) compensation technology, Conventional magnetic recording (CMR), 24x7 continuous operation, NAS compatible, RAID ready |
| Width | 4 in |
| Depth | 5.8 in |
| Height | 1 in |
| Weight | 25.22 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 7 watt (operating) ¦ 5.8 watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 300 g @ 2 ms |
| Vibration Tolerance (operating) | 0.67 g @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 g @ 2-200 Hz |
| Performance | |
| Drive Class | Data Center |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 267 MBps |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,000,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Software & System Requirements | |
| OS Required | Linux, Microsoft Windows, Microsoft Windows Server |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
