Document scanner - Contact Image Sensor (CIS) - Duplex - 241 x 6096 mm - 600 dpi - up to 70 ppm (mono) / up to 70 ppm (color) - ADF (120 sheets) - up to 11000 scans per day - USB 3.1 Gen 1
| Main Specifications | |
|---|---|

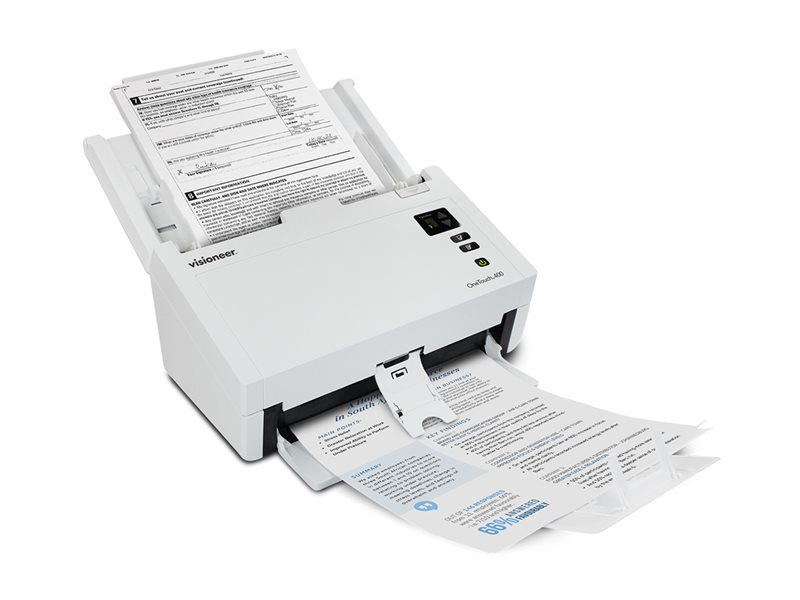

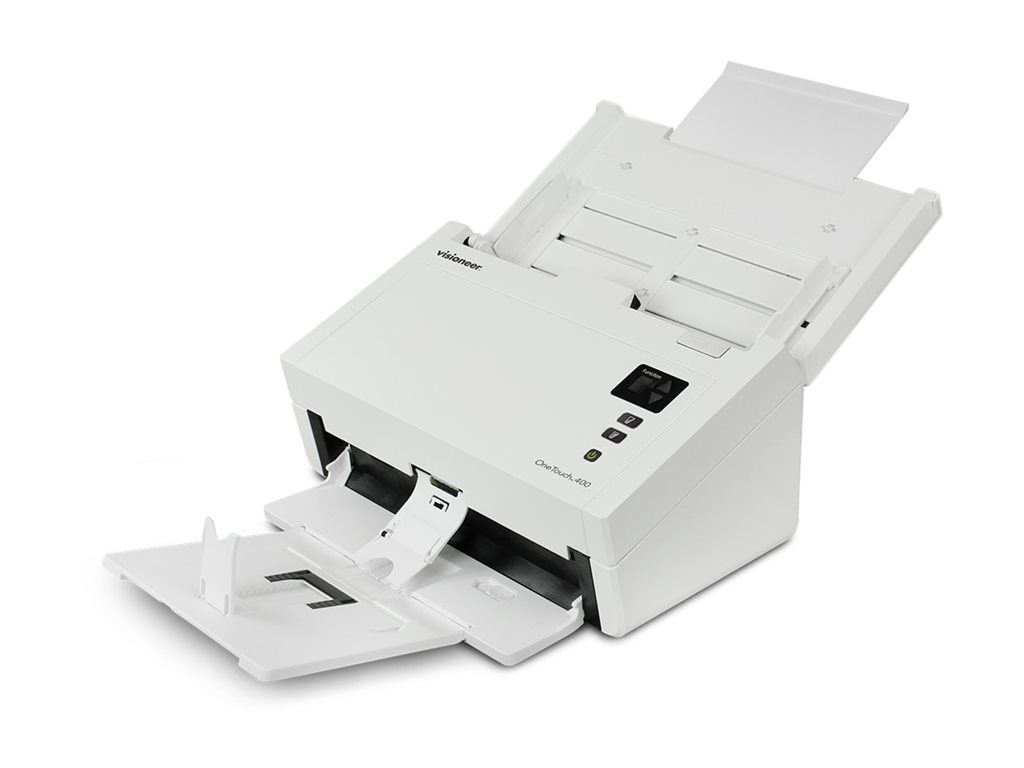

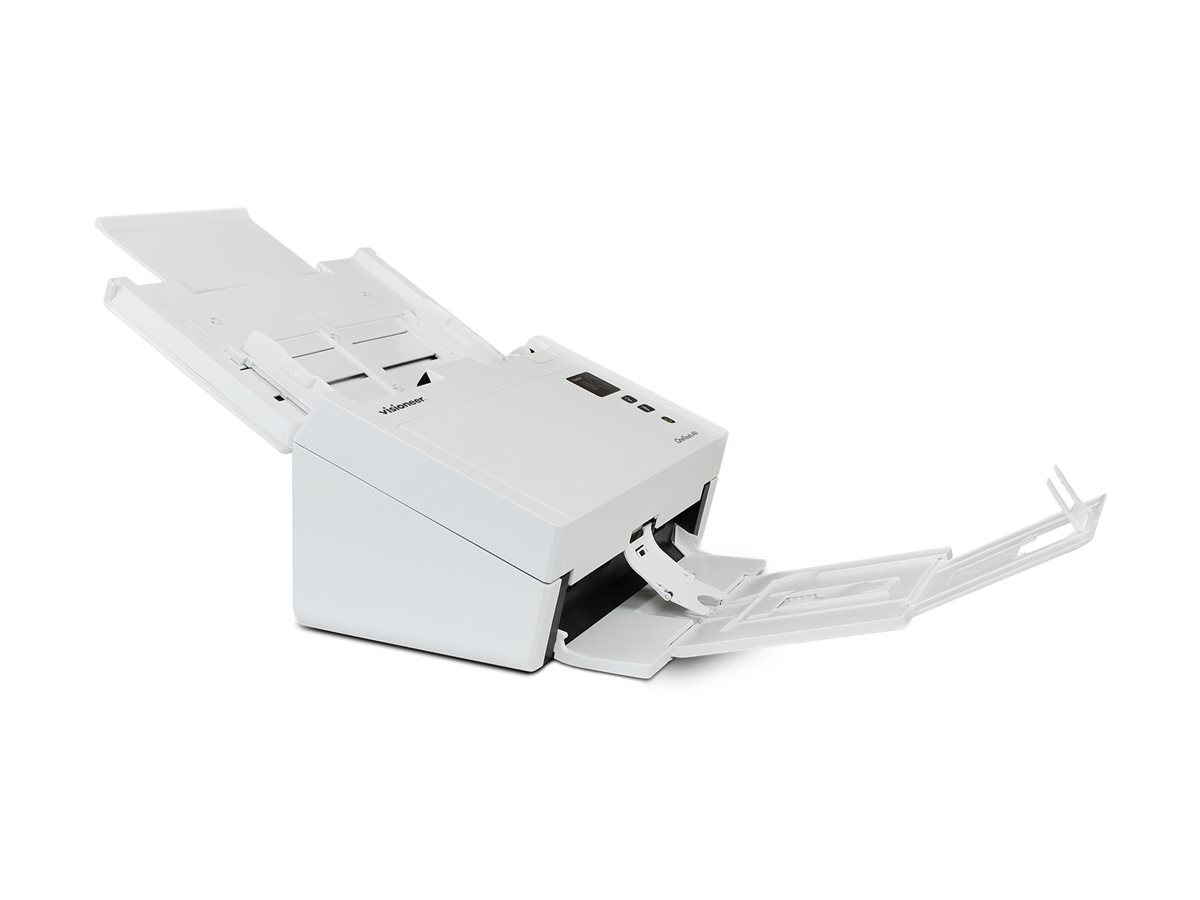

| Product Description | Visioneer VOT400-U - document scanner - desktop - USB 3.1 Gen 1 |
| Device Type | Document scanner - desktop |
| Interface Type | USB 3.1 Gen 1 |
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Light Source | LED |
| Max Supported Document Size | 241 x 6096 mm |
| Input Type | Color |
| Grayscale / Color Depth (External) | 8-bit (256 gray levels) / 24-bit (16.7 million colors) |
| Optical Resolution | 600 dpi |
| Interpolated Resolution | 1200 dpi |
| Max Document Scan Speed | 70 ppm (mono) / 70 ppm (color) |
| Max Document Size | 9.5 in x 240 in |
| Automatic Duplexing | Yes |
| Supported Document Type | Plain paper, plastic card |
| Document Feeder Type | Automatic |
| Feeder Capacity | 120 sheets |
| Duty Cycle | 11000 scans per day |
| System Requirements | Microsoft Windows 7 / 8 / 10, Apple MacOS |
| Dimensions (WxDxH) | 12.4 in x 6.6 in x 7.5 in |
| Weight | 9.92 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Document scanner - desktop |
| Interface Type | USB 3.1 Gen 1 |
| Max Supported Document Size | 241 x 6096 mm |
| Expansion / Connectivity | |
| Interfaces Details | USB 3.1 Gen 1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Media Handling | |
| Max Document Size | 9.5 in x 240 in |
| Supported Document Type | Plain paper, plastic card |
| Document Feeder Type | Automatic |
| Feeder Capacity | 120 sheets |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | Visioneer OneTouch, Visioneer Acuity, Visioneer DriverPLUS, Visioneer Capture SE, Visioneer Organizer AI, ABBYY FineReader |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple MacOS |
| Scanner | |
| Input Type | Color |
| Grayscale Depth (External) | 8-bit (256 gray levels) |
| Color Depth (External) | 24-bit (16.7 million colors) |
| Optical Resolution | 600 dpi |
| Interpolated Resolution | 1200 dpi |
| Automatic Duplexing | Yes |
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Lamp / Light Source Type | LED |
| Max Document Scan Speed B/W | 70 ppm |
| Max Document Scan Speed Color | 70 ppm |
| Duty Cycle | 11000 scans per day |
| Scanner Speed Details | 70 ppm - color - 200 dpi ¦ 70 ppm - black&white - 200 dpi ¦ 140 ipm - color - 200 dpi ¦ 140 ipm - black&white - 200 dpi ¦ 70 ppm - black&white - 300 dpi ¦ 140 ipm - black&white 300 dpi (back) ¦ 50 ppm - color - 300 dpi ¦ 100 ipm - color - 300 dpi |
| Scanner Features | Visioneer OneTouch Technology, Visioneer Acuity Technology |
| Compliant Standards | TWAIN, WIA, ISIS |
| Dimensions & Weight | |
| Width | 12.4 in |
| Depth | 6.6 in |
| Height | 7.5 in |
| Weight | 9.92 lbs |
