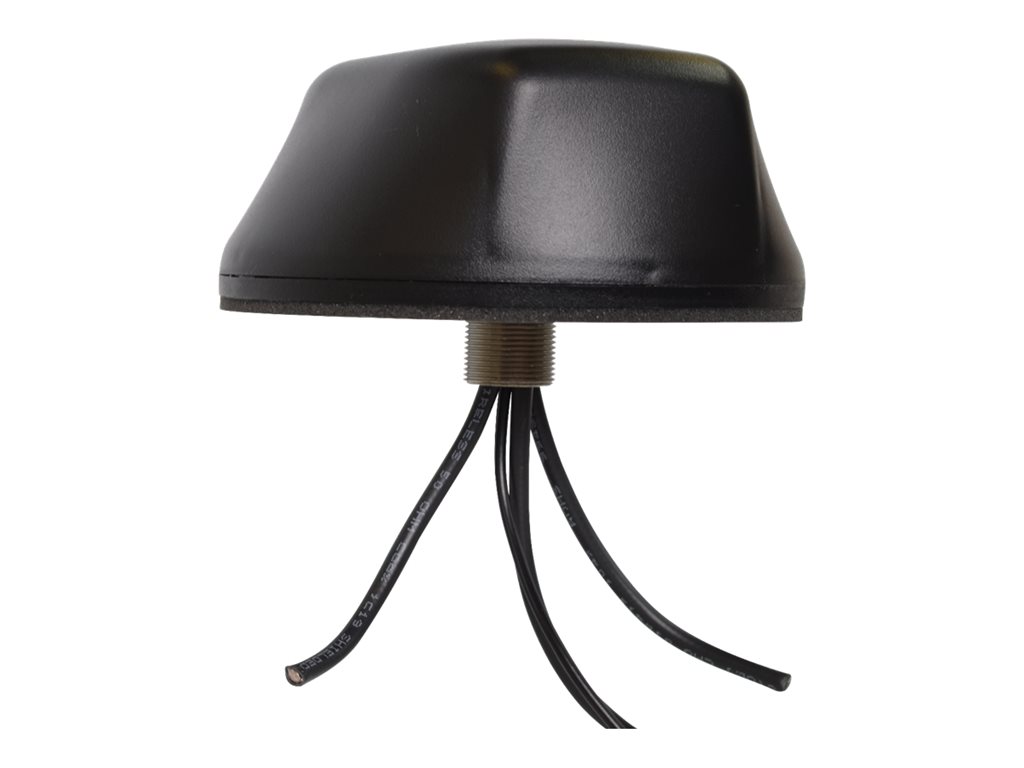

Mobile Mark - Mobile Mark LTM401
Antenna - navigation, cellular, Wi-Fi - 5 dBi (for 2.4 - 2.5 GHz), 3 dBi (for 694 - 960 MHz), 4 dBi (for 1710 - 2170 MHz), 5 dBi (for 4.9 - 6.0 GHz), 5 dBi (for 1575.42 MHz), 5 dBi (for 1575 MHz), 5 dBi (for 1612 MHz) - surface mountable - black
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Mobile Mark LTM401 - antenna |
| Product Type | Antenna |
| Product Material | Plastic |
| Color | Black |
| Intended For | Navigation, cellular, Wi-Fi |
| Antenna Placing / Mounting | Surface mountable |
| Compatibility | GPS, LTE, GLONASS, Wi-Fi |
| Frequency Range | 1.71 - 2.17 GHz, 4.9 - 6.0 GHz, 2.4 - 2.5 GHz, 1575.42 MHz, 1575 MHz, 694 - 960 MHz, 1612 MHz |
| Gain | 5 dBi (for 2.4 - 2.5 GHz), 3 dBi (for 694 - 960 MHz), 4 dBi (for 1710 - 2170 MHz), 5 dBi (for 4.9 - 6.0 GHz), 5 dBi (for 1575.42 MHz), 5 dBi (for 1575 MHz), 5 dBi (for 1612 MHz) |
| General | |
| Product Type | Antenna |
| Product Material | Plastic |
| Cable Length | 15 ft |
| Enclosure Color | Black |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Cabling & Wiring | |
| Connector Provided | 3 x SMA male ¦ 1 x RP-SMA male |
| Antenna | |
| Intended For | Navigation, cellular, Wi-Fi |
| Antenna Placing / Mounting | Surface mountable |
| Compatibility | GPS, LTE, GLONASS, Wi-Fi |
| Frequency Range | 1.71 - 2.17 GHz, 4.9 - 6.0 GHz, 2.4 - 2.5 GHz, 1575.42 MHz, 1575 MHz, 694 - 960 MHz, 1612 MHz |
| Gain | 5 dBi (for 2.4 - 2.5 GHz), 3 dBi (for 694 - 960 MHz), 4 dBi (for 1710 - 2170 MHz), 5 dBi (for 4.9 - 6.0 GHz), 5 dBi (for 1575.42 MHz), 5 dBi (for 1575 MHz), 5 dBi (for 1612 MHz) |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Impedance | 50 Ohm |
