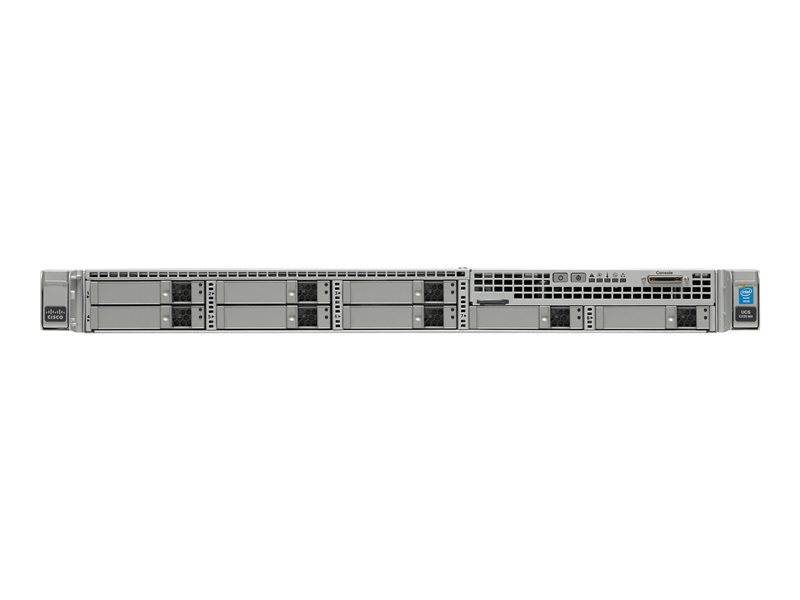

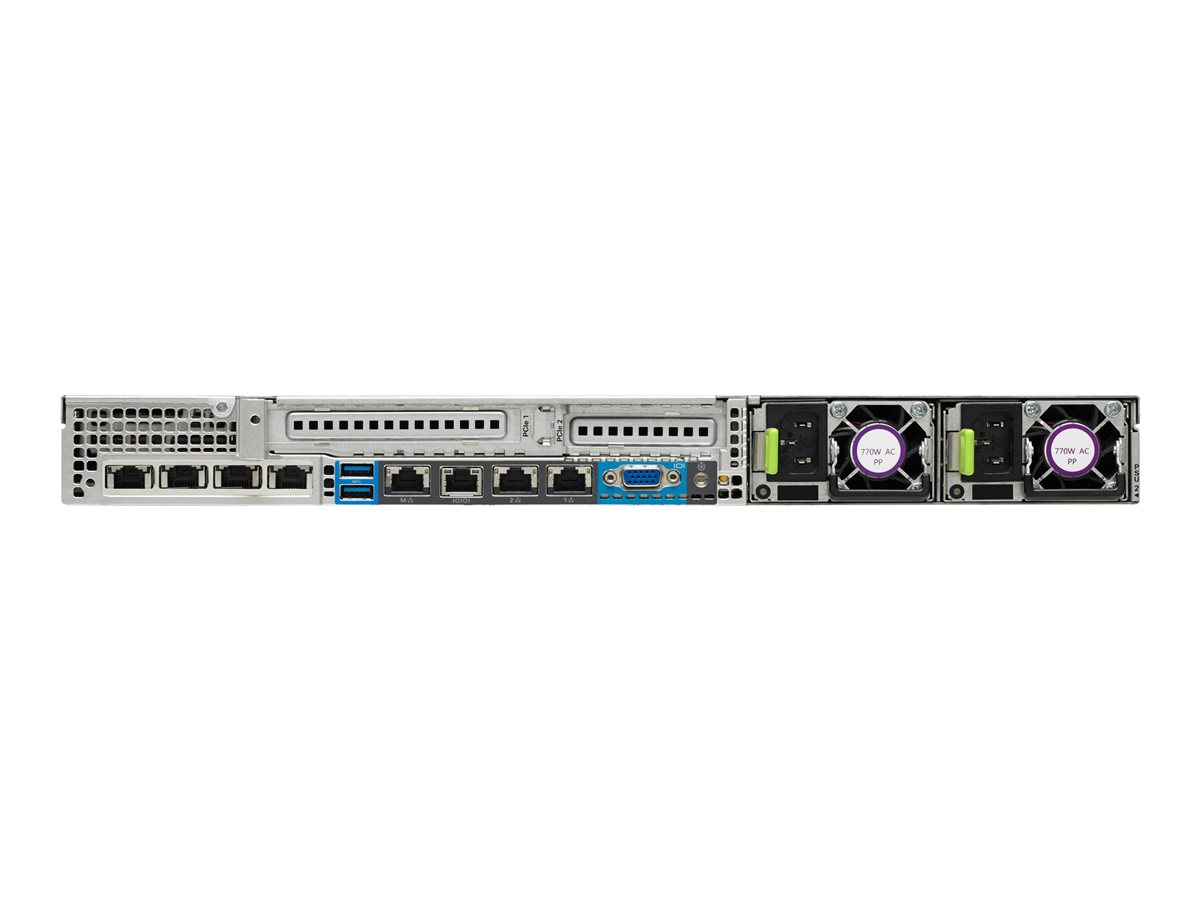

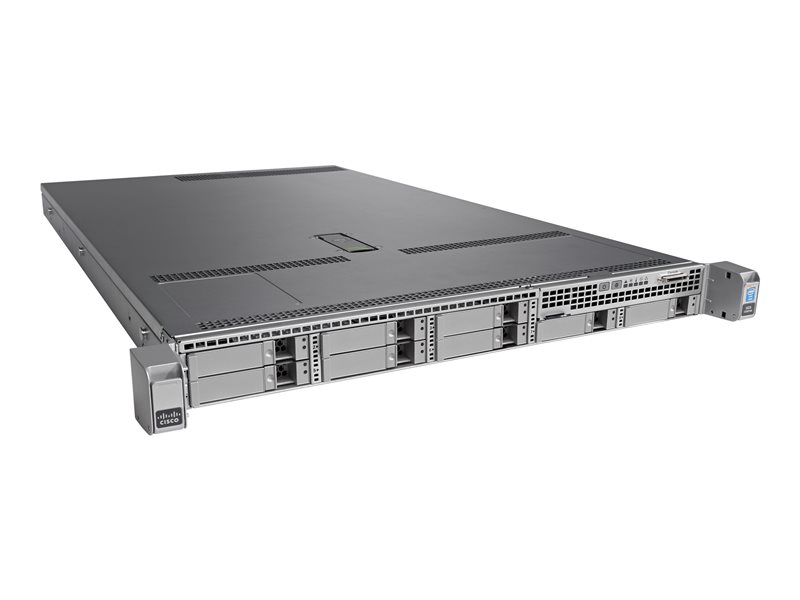

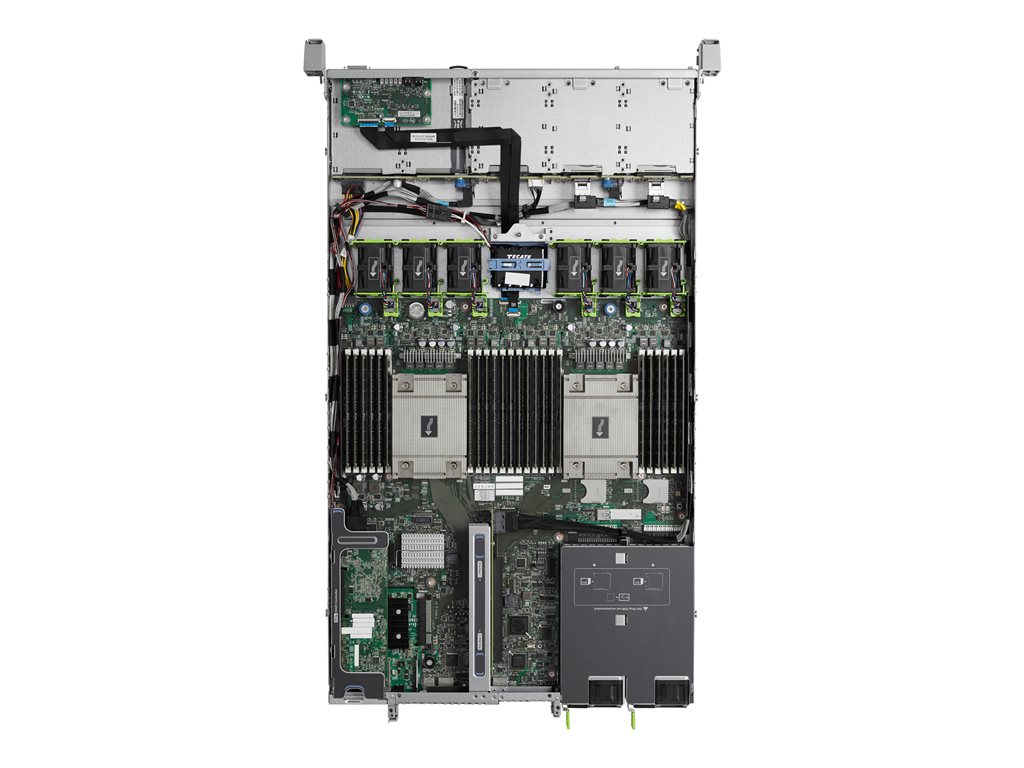

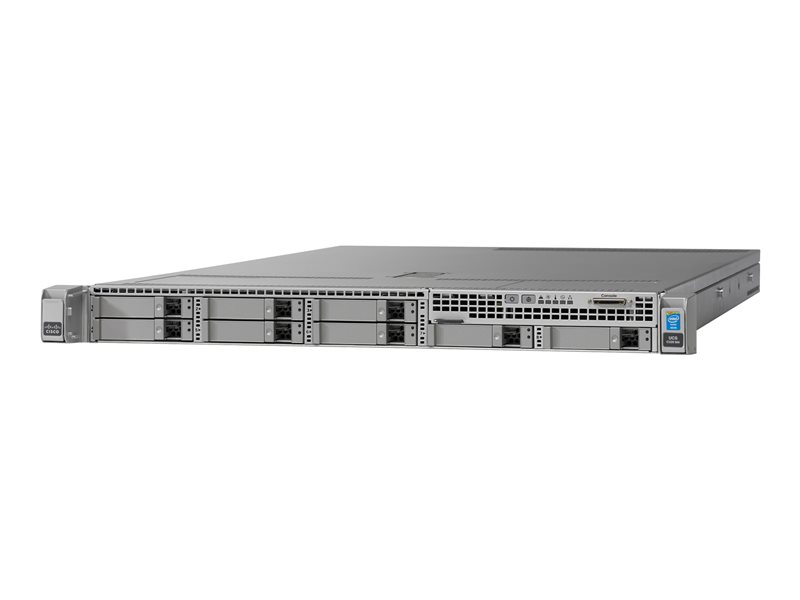

Cisco - Cisco Business Edition 6000M (Export Unrestricted) M4
Server - rack-mountable - 1U - 2-way - 1 x Xeon E5-2630V3 / up to 3.2 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - HDD 6 x 300 GB - G200e - Gigabit Ethernet - no OS - monitor: none - remanufactured - with VMware Support and Subscription for VMware vSphere Hypervisor
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco Business Edition 6000M (Export Unrestricted) M4 - rack-mountable - Xeon E5-2630V3 2.4 GHz - 32 GB - HDD 6 x 300 GB |
| Type | Server - rack-mountable |
| Bundled Services | VMware Support and Subscription for VMware vSphere Hypervisor |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5-2630V3 / 2.4 GHz (, up to 3.2 GHz, (8-core) |
| Processor Socket | LGA2011-v3 Socket |
| Cache Memory | 20 MB L3 cache |
| Cache Per Processor | 20 MB |
| RAM | 32 GB (installed) / 384 GB (max) - DDR4 SDRAM - ECC - PC4-17000 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 6 x HDD 300 GB (hot-swap) - SAS 6Gb/s - 10000 rpm |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200e |
| Video Memory | 8 MB |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Software Included | Cisco Business Edition 6000 Export Unrestricted 10.x-11.x, VMware vSphere Hypervisor Host 5.0 |
| Dimensions (WxDxH) | 16.9 in x 29.8 in x 1.7 in |
| Pricing Type | Remanufactured |
| General | |
| Type | Server |
| Bundled Services | VMware Support and Subscription for VMware vSphere Hypervisor |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Expansion / Connectivity | |
| Bays | 8 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 3.0 x24 - three-quarter-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x24 - half-length, low-profile (x16 mode) ¦ 2 (total) / 2 (free) x SD card (internal) |
| Interfaces | 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x serial - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management (NIC) - RJ-45 ¦ 1 x KVM (1 in front) |
| Miscellaneous | |
| Included Accessories | CPU Heatsink, rack rail kit |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, GB4943.1-2001, EN 300386 |
| Pricing Type | Remanufactured |
| RAM | |
| Installed Size | 32 GB / 384 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2133 MHz |
| Memory Specification Compliance | PC4-17000 |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 22 (empty) |
| Features | Registered, single rank |
| Configuration Features | 2 x 16 GB |
| RAM Supported | 384 GB registered - ECC ¦ 768 GB Load-Reduced - ECC |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I350 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 770 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Buffer Size | 1 GB |
| Cache Memory | |
| Installed Size | L3 cache - 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200e |
| Video Memory | 8 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Cisco Business Edition 6000 Export Unrestricted 10.x-11.x, VMware vSphere Hypervisor Host 5.0 |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 6 x 300 GB |
| Interface Type | SAS 6Gb/s |
| Spindle Speed | 10000 rpm |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 29.8 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2630V3 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
