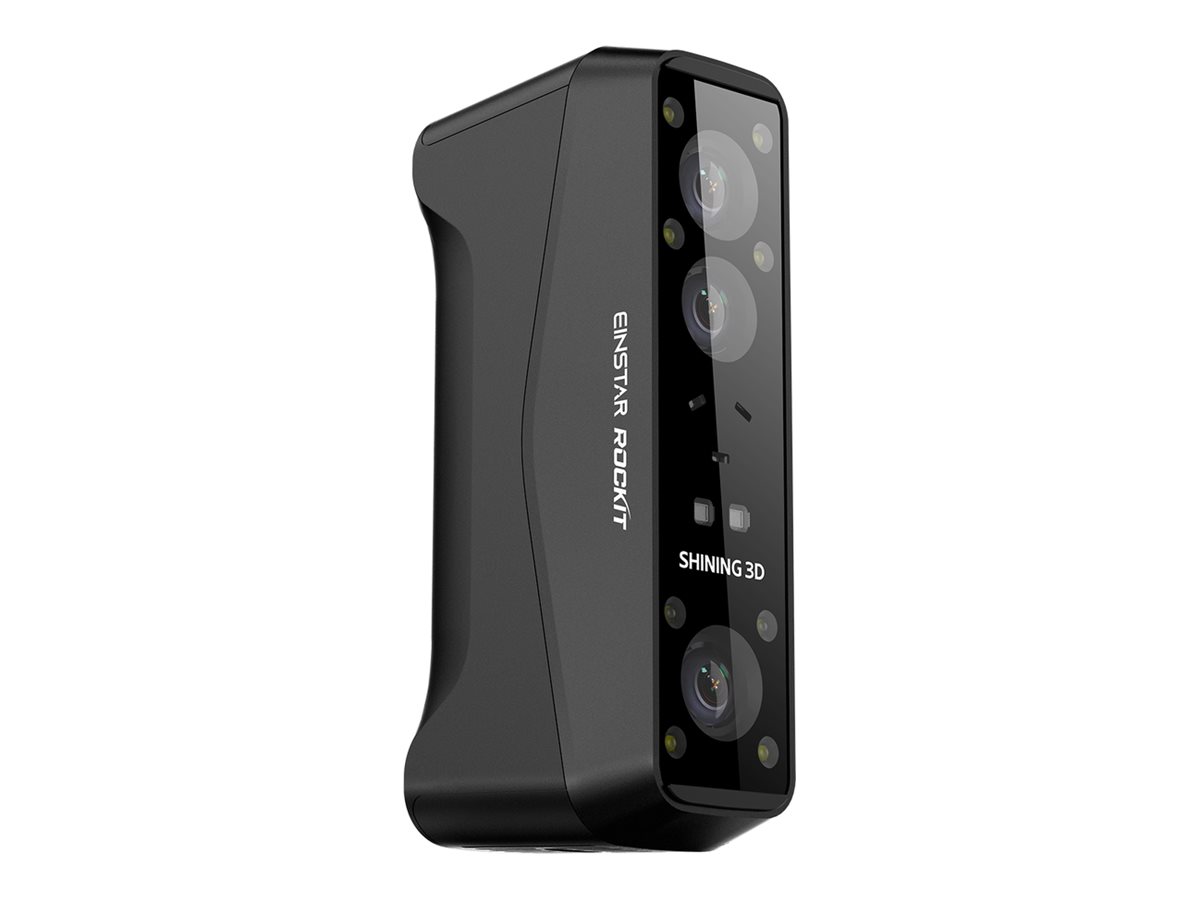

Afinia - Afinia Einstar Rockit

3D scanner - handheld - cameras - USB-C

43544
N/A
N/A
New

Price: $1,451.00

Total Available: 0

Product Description

Additional Details

  • Special Delivery: None

What's Included

Specifications

Main Specifications
Product Description Afinia Einstar Rockit - 3D scanner - handheld - USB-C
Device Type 3D scanner - handheld
Interface Type USB-C
Scanning Sensor Type Cameras
Light Source IR VCSEL / blue laser
Scan Speed 2800000 points/sec, 90 fps
Min Scan Size 1.97 in x 1.97 in x 1.97 in
Battery 2
System Requirements Windows 11 Pro (version 22H2)
Dimensions (WxDxH) 1.5 in x 2.4 in x 5.1 in
Weight 14.99 oz
General
Type 3D scanner - handheld
Interface Type USB-C
Expansion / Connectivity
Interfaces Details USB 3.0 - Type C
Miscellaneous
Included Accessories Carrying case, calibration board, universal holder, power adapter, power cable, reflective markers
Cables Included 1 x USB-C cable
Compliant Standards RoHS, FCC, WEEE, FDA, SRRC, IP50
Media Handling
Min Scan Size 1.97 in x 1.97 in x 1.97 in
Power
Power Device External power adapter
Software / System Requirements
Software Included ExStar Hub
OS Required Windows 11 Pro (version 22H2)
System Requirements Details Core i7 RAM 32 GB
Environmental Parameters
Min Operating Temperature 14 °F
Max Operating Temperature 104 °F
Battery
Battery Installed 2
Capacity 5500 mAh
Run Time (Up To) 3 hours
Scanner
Scanning Sensor Type Cameras
Lamp / Light Source Type IR VCSEL / blue laser
Scan Speed 2800000 points/sec, 90 fps
Scanner Features IR rapid scan mode, Laser HD mode, marker-free mode, outdoor scanning, full color scanning, 19 + 19 crossed laser lines, 2 depth cameras, RGB camera, swappable batteries, white flash LED, Wi-Fi Direct, 7 parallel laser lines, reflective surfaces scanning
Output File Formats STL, OBJ, PLY, 3MF, ASC
Dimensions & Weight
Width 1.5 in
Depth 2.4 in
Height 5.1 in
Weight 14.99 oz
