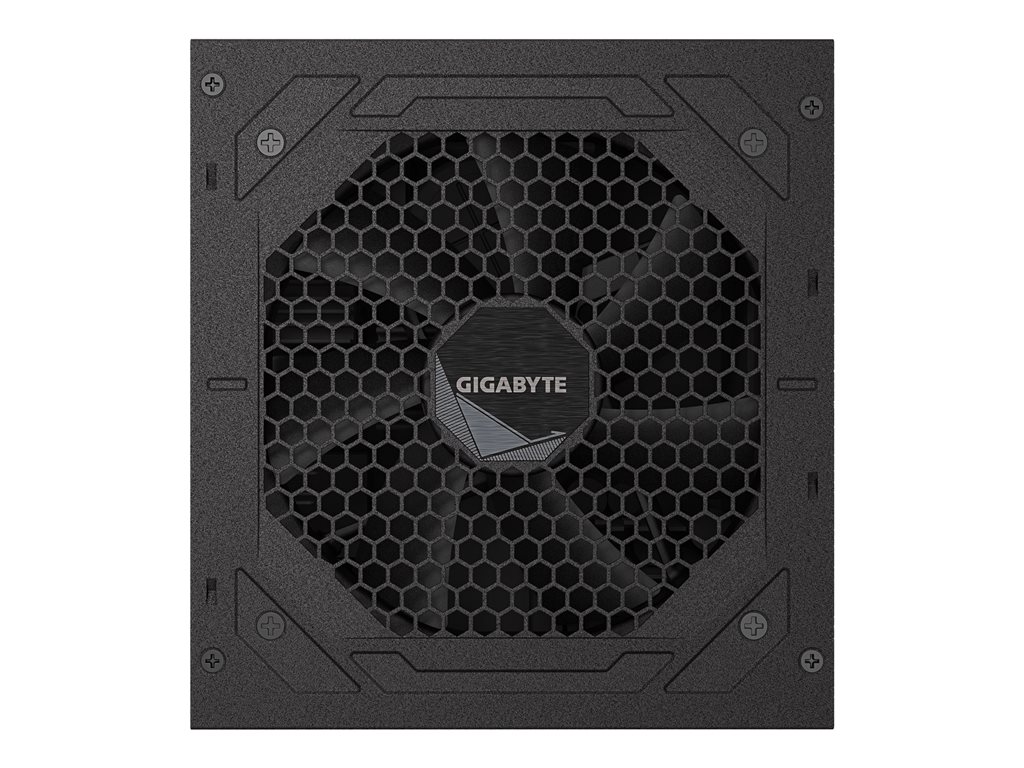

GIGABYTE - Gigabyte UD750GM PG5 V2
Power supply (internal) - ATX12V 3.1/ EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
Price: $149.02
MSRP: $119.99
Discount off MSRP: -24.19%
Total Available: 0
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Gigabyte UD750GM PG5 V2 - power supply - 750 watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power |
| Modular Cable Management | Yes |
| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 5.9 in x 5.5 in x 3.4 in |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| PSU Form Factor | ATX |
| Miscellaneous | |
| Cables Included | AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ Power 8 pin +12V with detachable 4 pin section modular cable 2.8 ft ¦ 16-pin PCIe 5.0 cable 2.3 ft ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 2.5 ft ¦ 2 x power 15 pin SATA cable 3.4 ft ¦ 4 pin internal power cable ¦ Floppy adapter |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Hydraulic bearing cooling fan, overvoltage protection, overpower protection, short-circuit protection, undervoltage protection, overcurrent protection, overheat protection, fully modular, Smart Fan Control Quiet technology |
| Compliant Standards | cRUus, CCC, FCC, EAC, TUV SUD, RoHS, ICC, RCM, UKCA |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Power Factor (PF) | 0.9 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.5 in |
| Height | 3.4 in |
