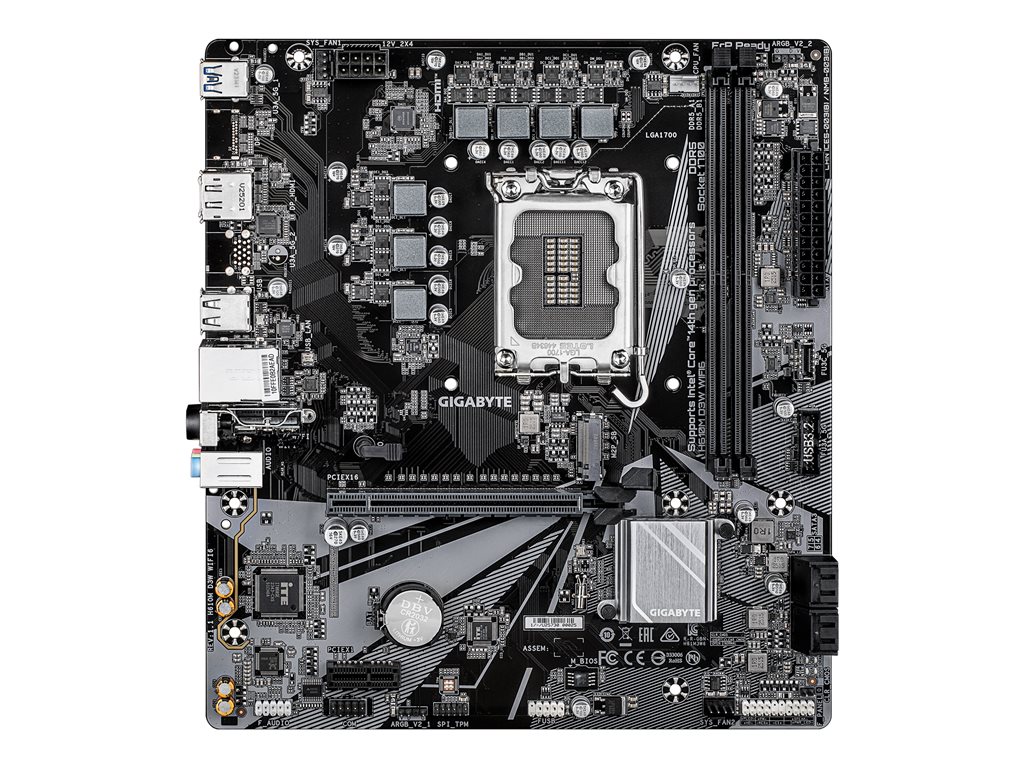

GIGABYTE - Gigabyte H610M D3W WIFI6
1.1 - motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Wi-Fi 6, Bluetooth, Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Price: $119.99
MSRP: $119.99
Discount off MSRP: 0.00%
Total Available: 1
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Gigabyte H610M D3W WIFI6 - 1.1 - motherboard - micro ATX - LGA1700 Socket - H610 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 Express |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size | 128 GB |
| RAM Supported | 2 DIMM slots - DDR5, non-ECC, ECC (operate in non-ECC mode), unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 Express |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x HDMI ¦ 2 x antenna ¦ 1 x DisplayPort |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | IO shield, Wi-Fi antenna |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, GIGABYTE Smart Backup |
| Compliant Standards | HDCP 2.3, DisplayPort 1.2 |
| Width | 9.6 in |
| Depth | 8.7 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | Q-Flash, 5+1+1 Phase Power Design, Audio Noise Guard, GIGABYTE Smart Fan 6, Anti-Sulfur Design, chipset heatsink, High-end Audio Capacitors, Ultra Durable |
| LAN | |
| Network Controller | Realtek RTL8851BE |
| Network Interfaces | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, Gigabit Ethernet |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 3.0 |
