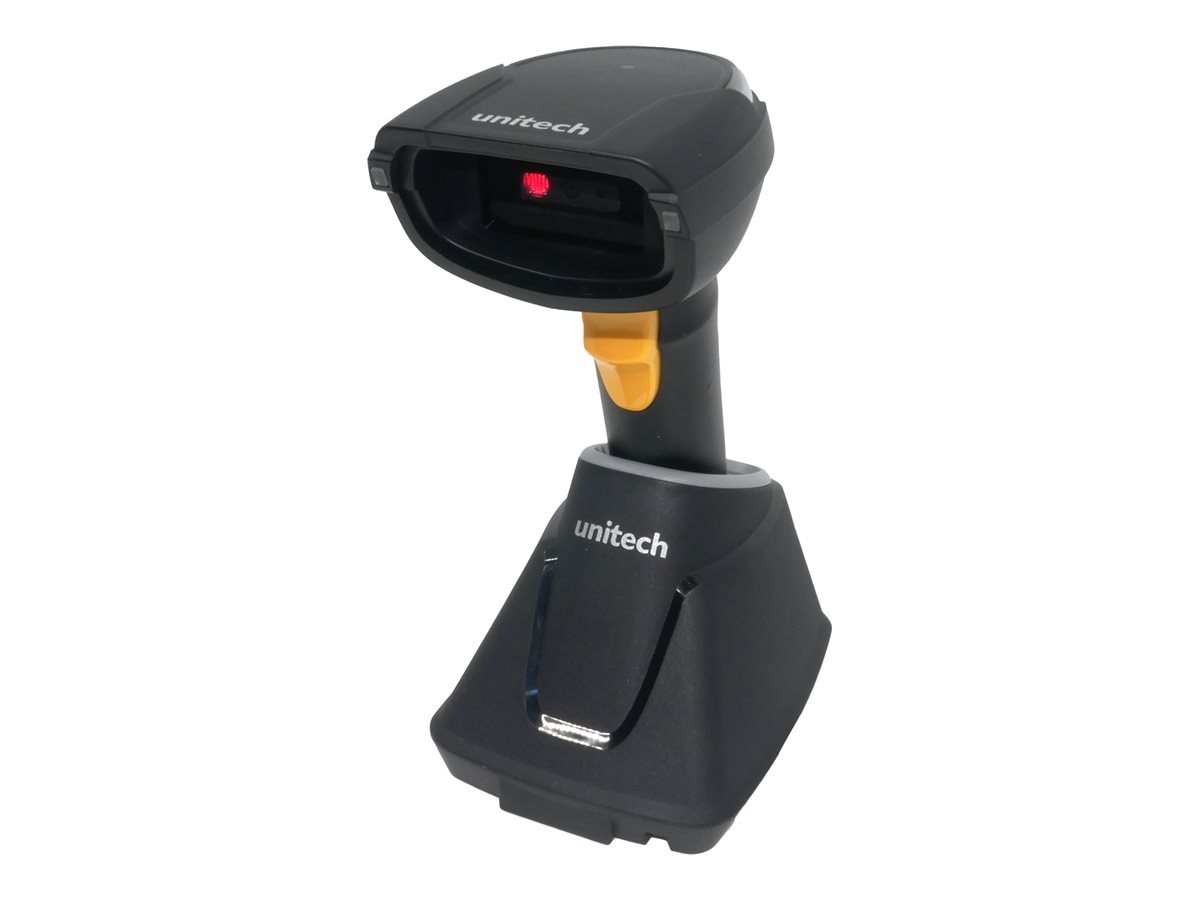

Barcode scanner - portable - 2D imager - decoded - RF(2.4 GHz) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Unitech MS852P - barcode scanner - TAA Compliant |
| Type | Barcode scanner - portable - RF(2.4 GHz) - decoded |
| Minimum Bar Width | 3 mil |
| Scan Field Width | 1.1 in - 36.1 in |
| Scan Element Type | 2D imager - red LED |
| Sensor Resolution | 1280 x 800 |
| Connectivity Technology | Wireless |
| Power | DC 3 - 5 V |
| Battery | 1 x lithium ion |
| Dimensions (WxDxH) | 2.8 in x 3.5 in x 7 in |
| Weight | 7.51 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - portable |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Cradle, USB dongle |
| Cables Included | 1 x USB cable - external |
| TAA Compliant | Yes |
| Compliant Standards | IP42, FCC, BSMI, VCCI |
| Power | |
| Power Device | Power adapter |
| Voltage | DC 3 - 5 V |
| Electric Current Required | 80.6 mA (operating), 14.6 mA (standby) |
| Battery | 1 x lithium ion |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Drop Specification | 7 ft to concrete |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 3.5 in |
| Height | 7 in |
| Weight | 7.51 oz |
| Barcode | |
| Interface Type | RF(2.4 GHz) |
| Minimum Bar Width | 3 mil |
| Scan Field Width | 1.1 in - 36.1 in |
| Scan Element Type | 2D imager - red LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 655 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 33 ft |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Decode Capability | Code 39, Code 128, Code 93, NW-7, Code 11, MSI, EAN Composites, UPC, Aztec, Base 32, China Han Xin Code, Composite Codes, Data Matrix, GS1 DataBar, Korean 2 of 5, MaxiCode, Micro PDF417, Micro QR code, OCR, OCR-A, OCR-B, PDF417, Postal Code, QR code, TLC39 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Triggered, prefix/suffix function, 15 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge) |
