44" large-format printer - color - ink-jet - - 2400 x 1200 dpi - up to 1399.3 sq.ft/hour (mono) / up to 1399.3 sq.ft/hour (color) - capacity: 2 rolls - Gigabit LAN, USB 3.0, Wi-Fi(ac) - cutter
| Main Specifications | |
|---|---|

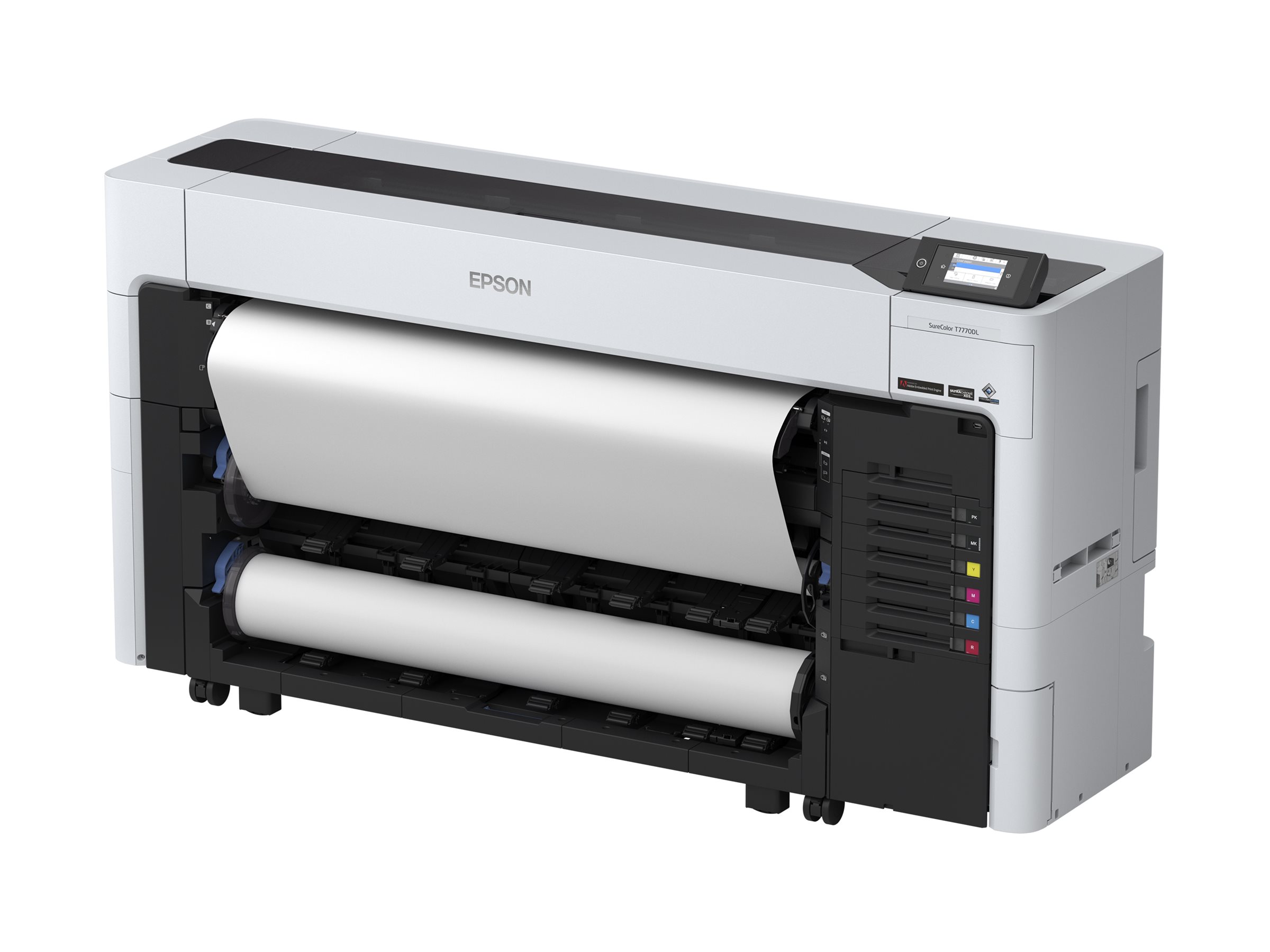

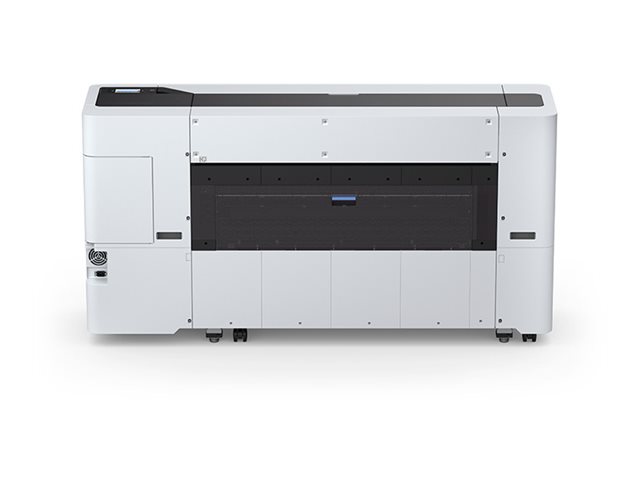

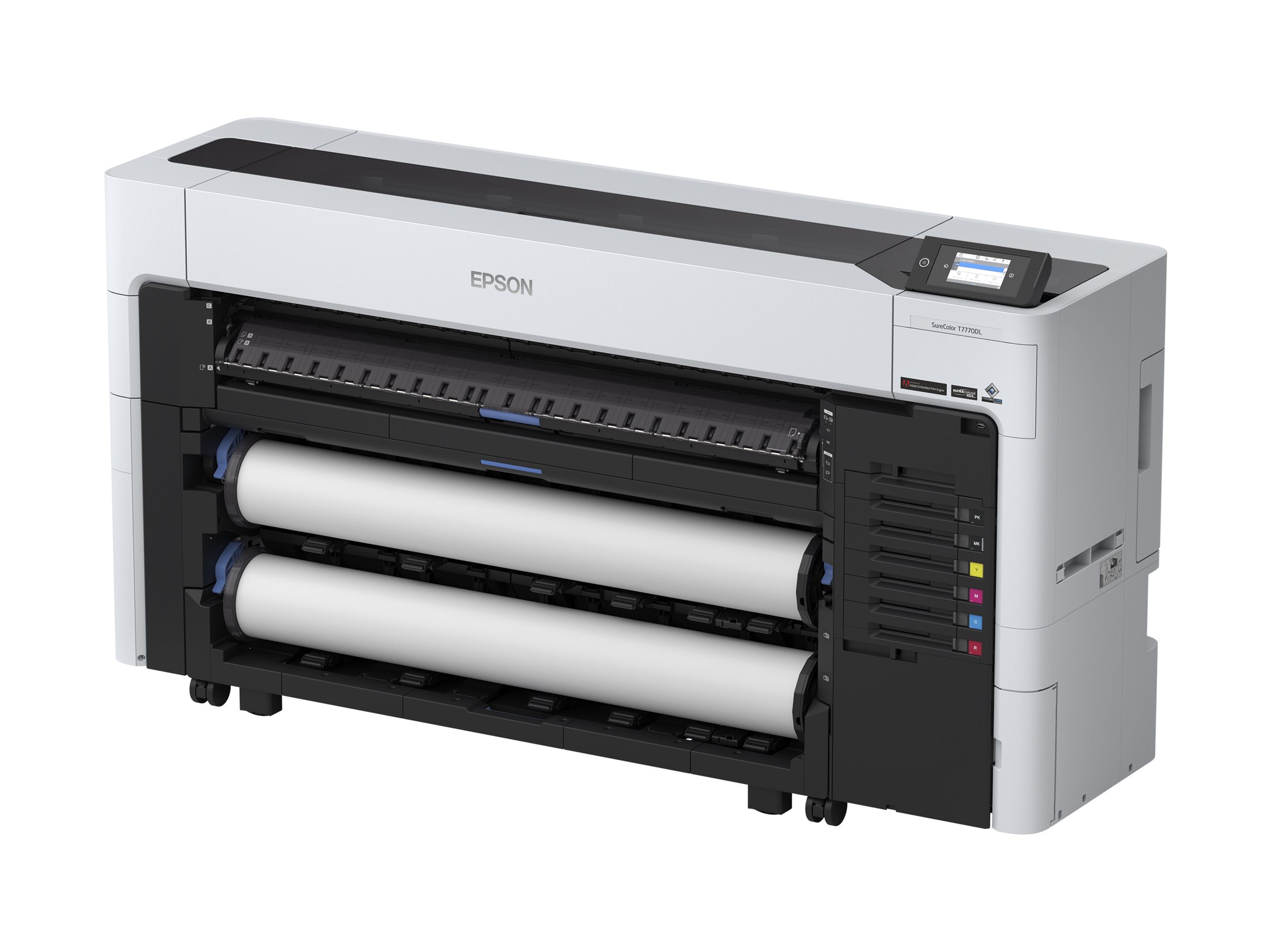

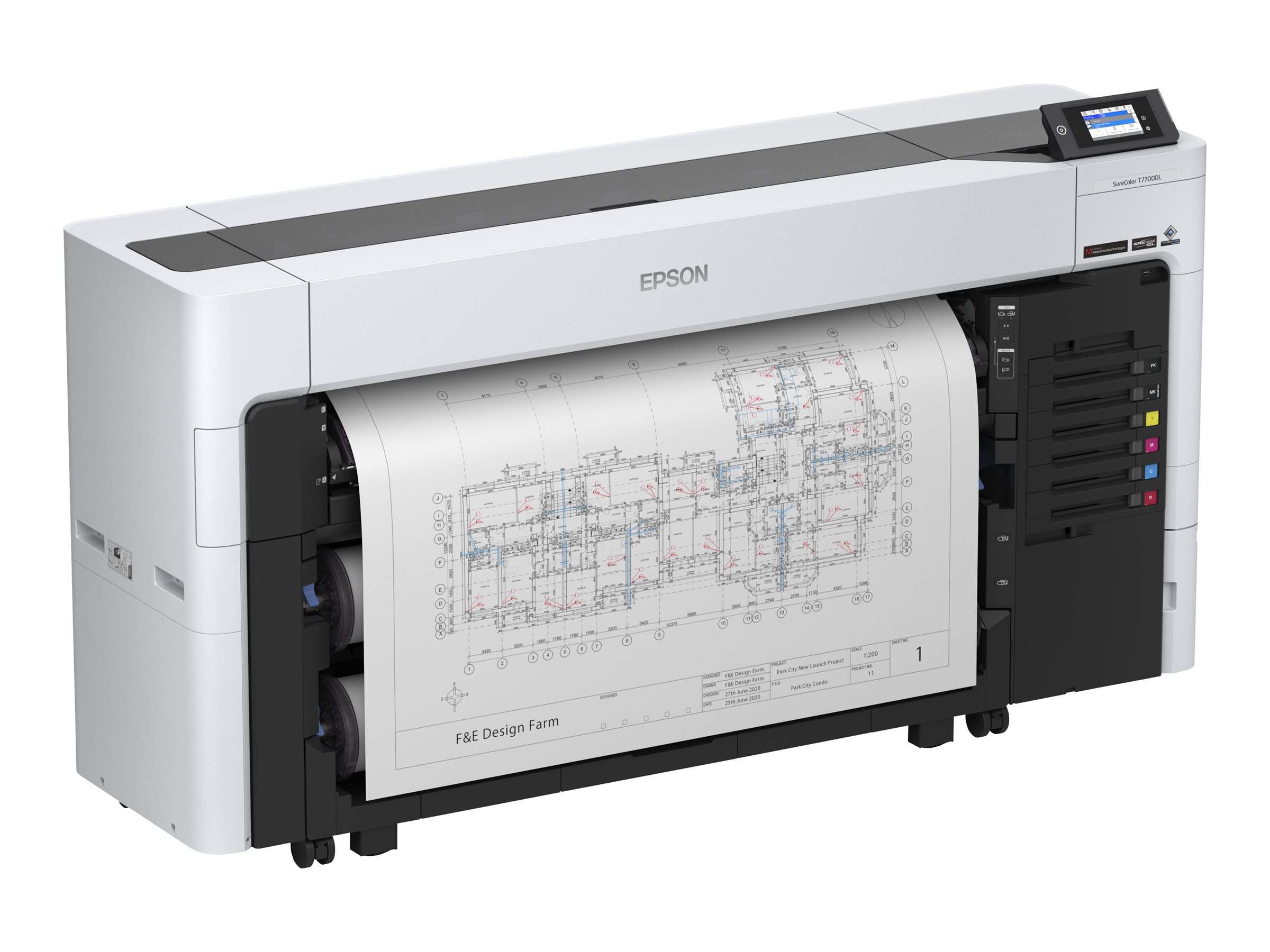

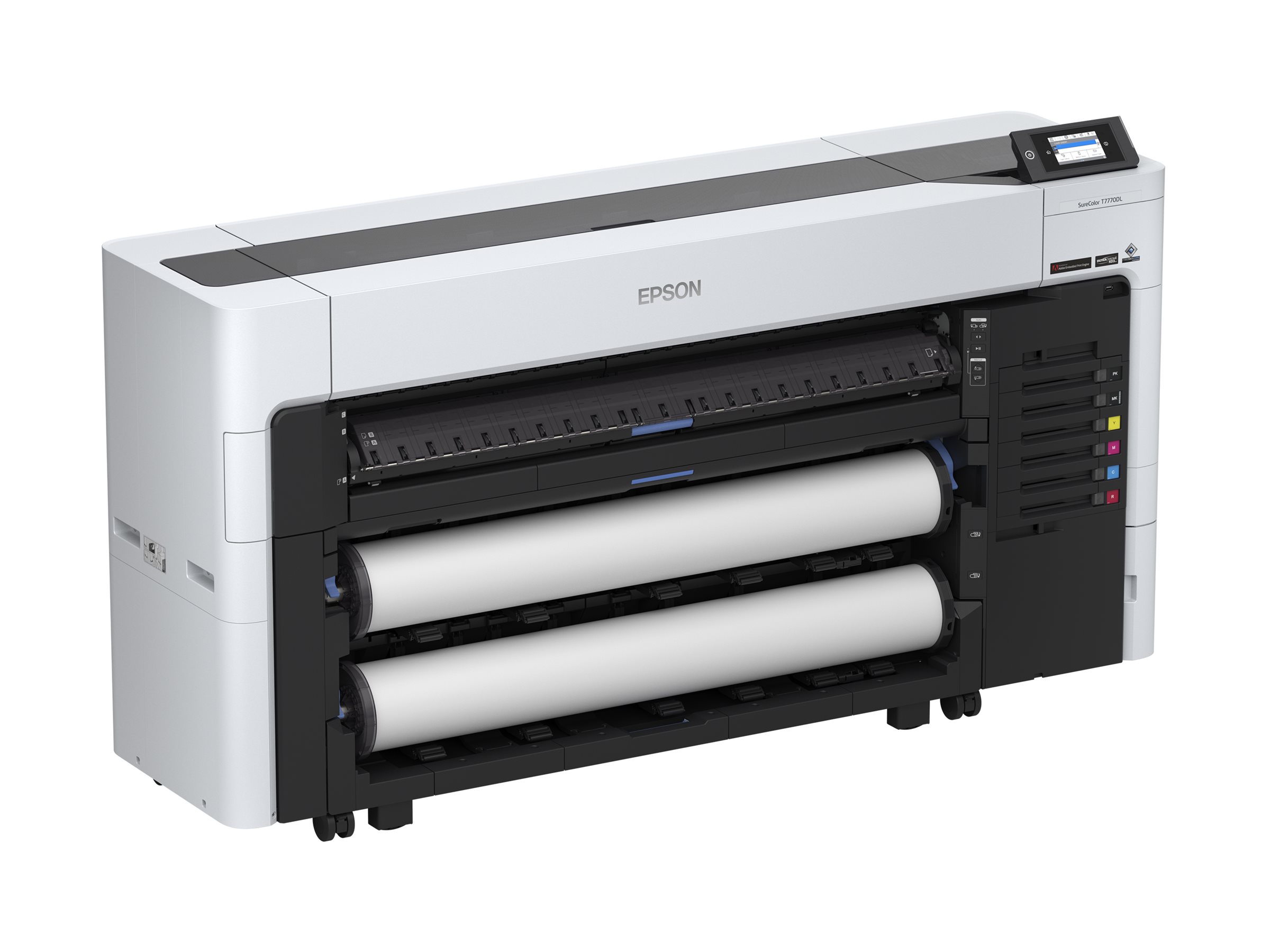

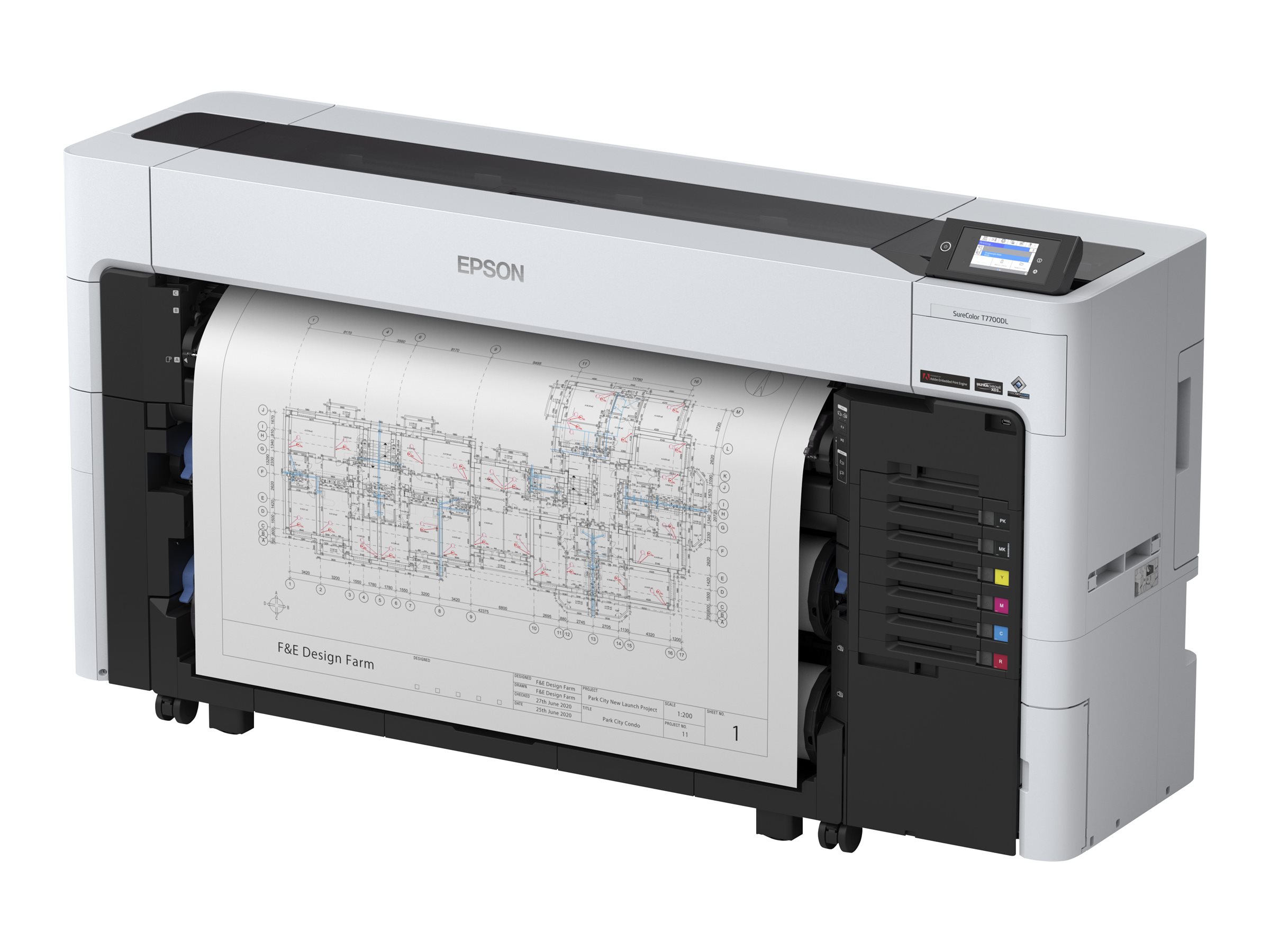

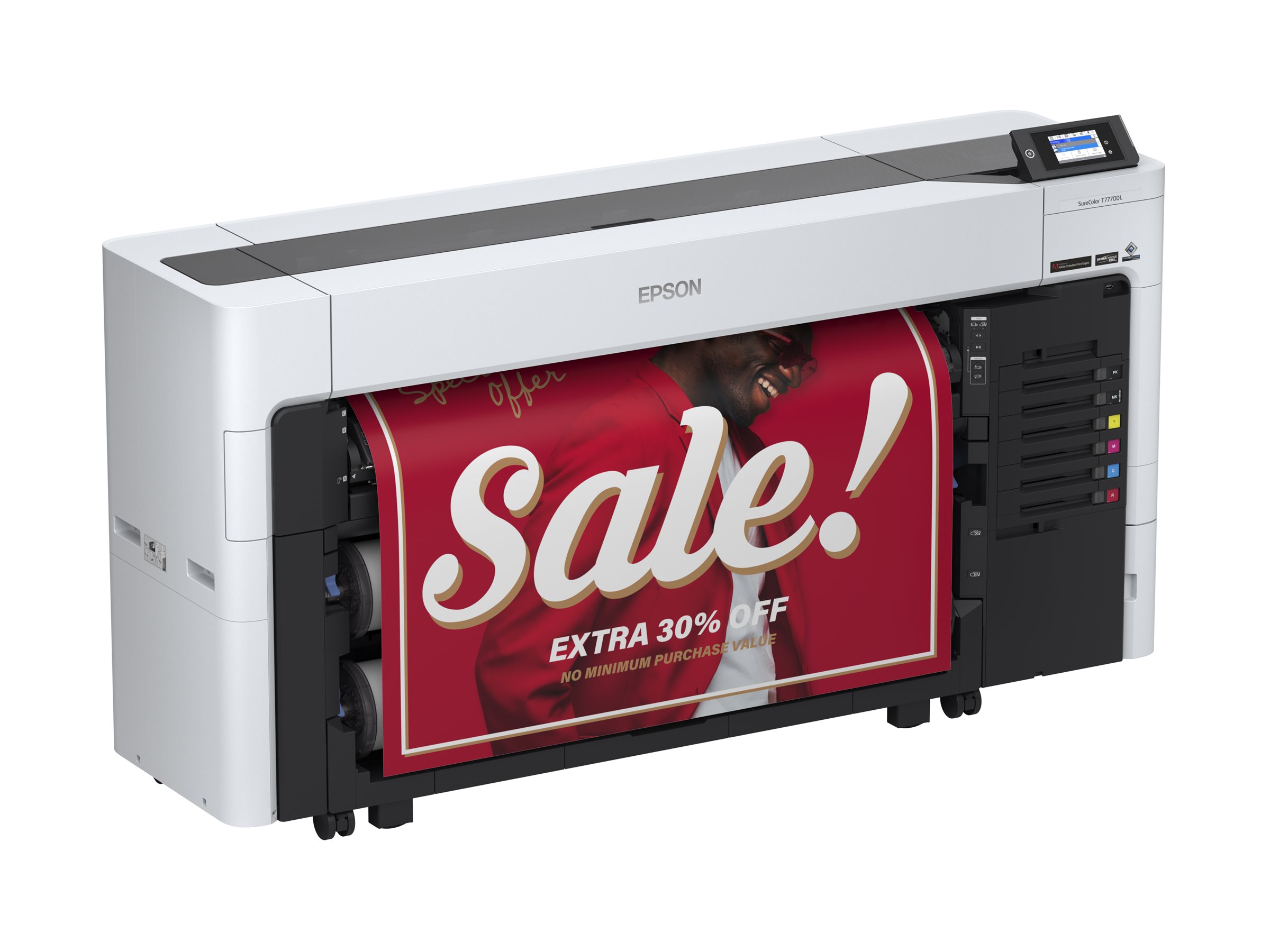

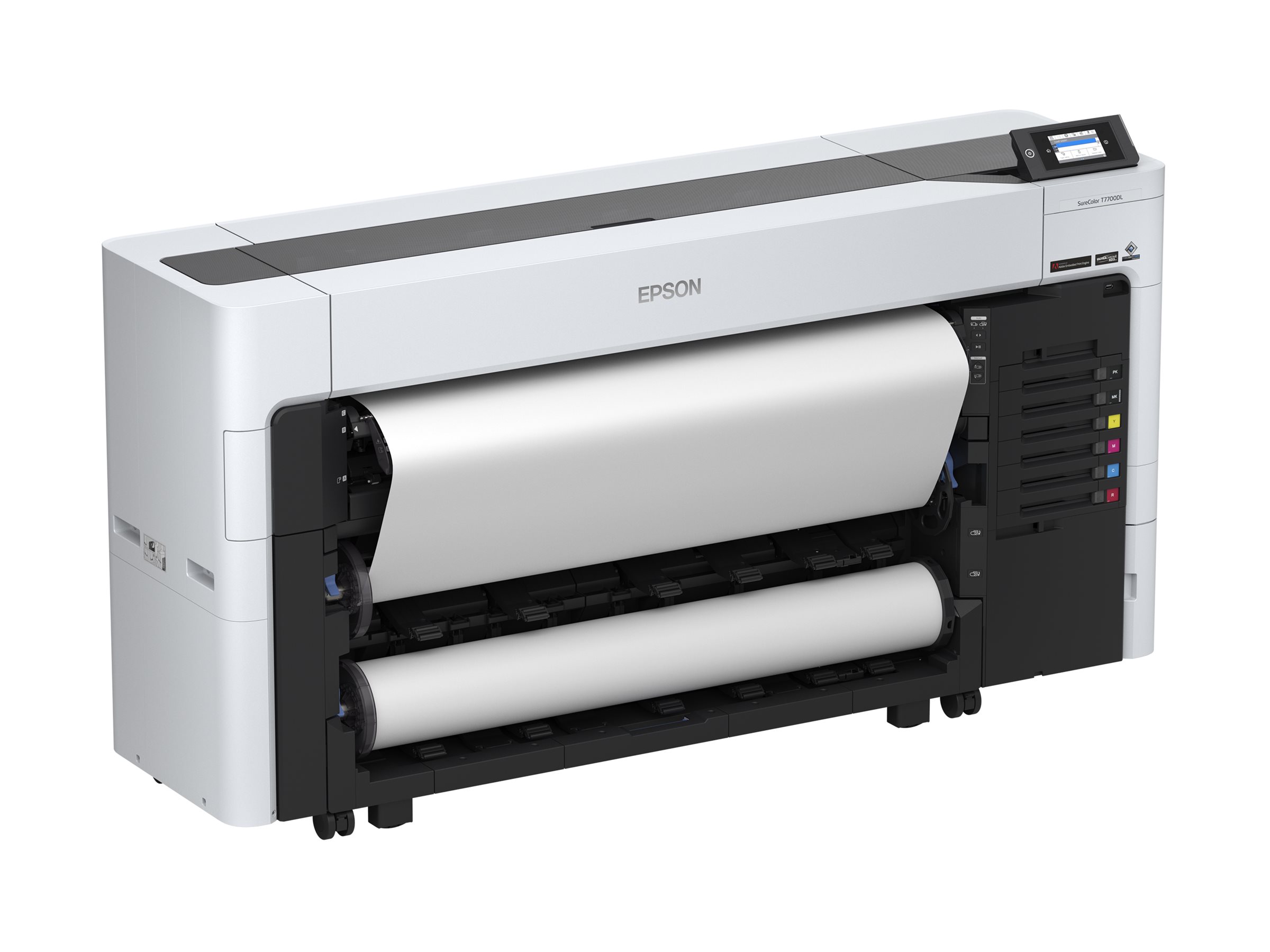

| Product Description | Epson SureColor T7770DL - large-format printer - color - ink-jet |
| Printer Type | 44" large-format printer - ink-jet - color |
| Weight | 363.76 lbs |
| Inkjet Technology | Epson PrecisionCore MicroTFP |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, red, photo black, matte black |
| Max Media Size | Roll (44 in) |
| Min Media Size (Custom) | 8 in x 8 in |
| Max Media Size (Custom) | 44 in |
| Print Speed | Up to 1399.3 sq.ft/hour - B0 (39.37 in x 55.67 in) ¦ Up to 0.3 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 300.3 sq.ft/hour |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Max Resolution Class (B&W) | 2400 x 1200 dpi |
| Max Resolution Class (Color) | 2400 x 1200 dpi |
| Image Enhancement Technology | EPSON Variable-sized Droplet Technology |
| Cutter | Yes |
| Interface | Gigabit LAN, USB 3.0, Wi-Fi(ac) |
| RAM Installed (Max) | 4 GB |
| Language Simulation | HP RTL, HP GL/2, EPSON ESC/P Raster, PDF 1.7, Adobe PostScript 3 |
| Media Type | Plain paper, poster board, continuous paper |
| Total Media Capacity | 2 rolls |
| Networking | Print server |
| Printer Features | Replaceable Ink Pack System (RIPS), auto take up reel |
| Power | AC 110-240 V |
| System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 R2 SP2 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.9.5 or later, Microsoft Windows Server 2019, Apple macOS 11 or later |
| Manufacturer Warranty | 1-year warranty |
| Dimensions (WxDxH) | 72.8 in x 19.6 in x 38.4 in |
| General | |
| Printer Type | 44" large-format printer - ink-jet - color |
| Expansion / Connectivity | |
| Connections | 1 x USB 3.0 ¦ 1 x Gigabit LAN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site - response time: next business day ¦ Technical support - phone consulting - 1 year / Monday-Friday |
| Miscellaneous | |
| Included Accessories | 2 roll adapters, USB stick, start here poster |
| Consumables Included | 1 x maintenance box |
| Compliant Standards | FCC Class B certified, RoHS, NRTL, UL/CSA/EN 62368-1 |
| Printer | |
| Inkjet Technology | Epson PrecisionCore MicroTFP |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, red, photo black, matte black |
| Nozzle Configuration | 6 x 1600 nozzles |
| Minimum Ink Droplet Size | 3.5 pl |

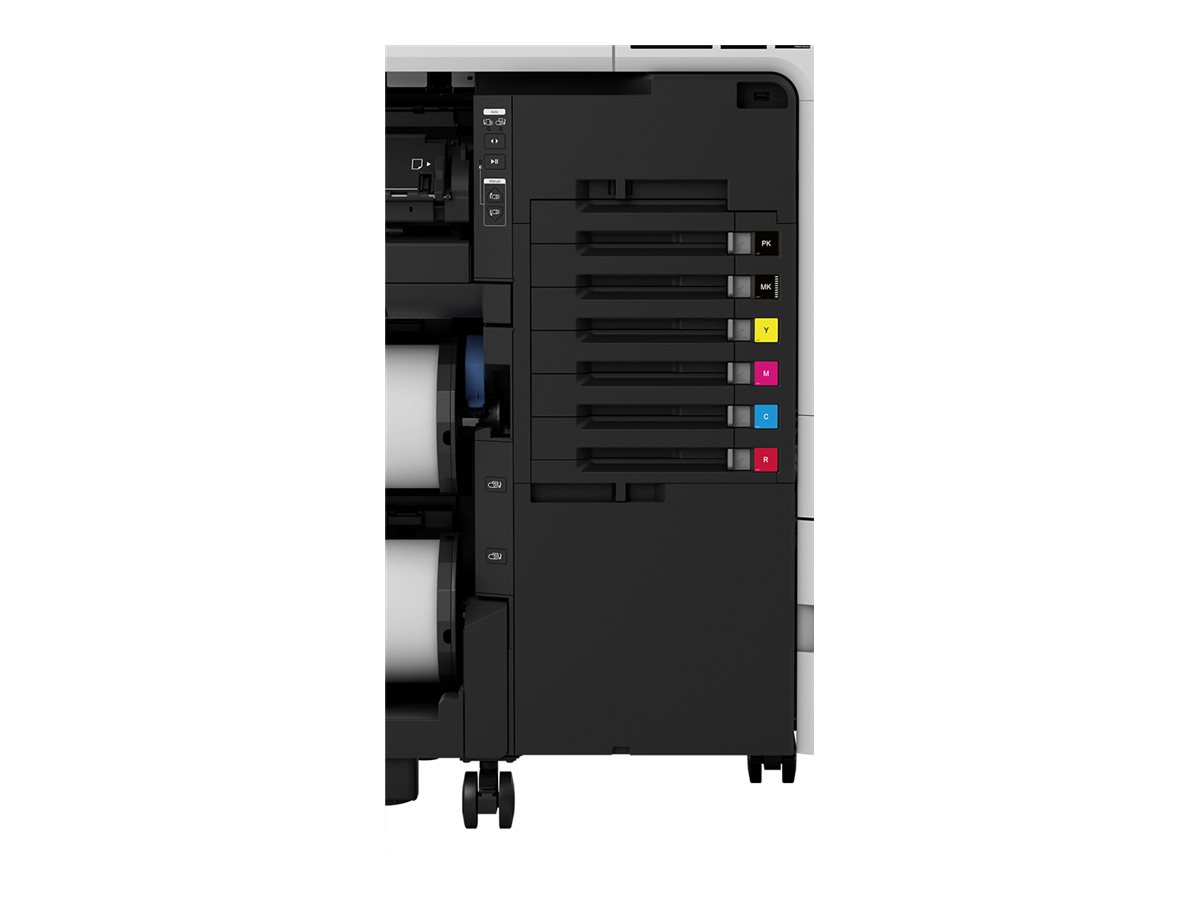

| Ink Cartridge Configuration | 6 individual ink tanks |
| Ink Type | Epson UltraChrome XD3 Ink |
| Print Speed | Up to 1399.3 sq.ft/hour - B0 (39.37 in x 55.67 in) ¦ Up to 0.3 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 300.3 sq.ft/hour |
| Built-in Devices | 4.3 inch LCD touch screen |
| Connectivity Technology | Wireless |
| Interface | Gigabit LAN, USB 3.0, Wi-Fi(ac) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Max Resolution Class (B&W) | 2400 x 1200 dpi |
| Max Resolution Class (Color) | 2400 x 1200 dpi |
| Image Enhancement Technology | EPSON Variable-sized Droplet Technology |
| Language Simulation | HP RTL, HP GL/2, EPSON ESC/P Raster, PDF 1.7, Adobe PostScript 3 |
| Cutter | Yes |
| Printer Features | Replaceable Ink Pack System (RIPS), auto take up reel |
| RAM | |
| RAM Installed (Max) | 4 GB |
| Media Handling | |
| Media Type | Plain paper, poster board, continuous paper |
| Max Media Size | Roll (44 in) |
| Min Media Size (Custom) | 8 in x 8 in |
| Max Media Size (Custom) | 44 in |
| Media Sizes | A1 (23.4 in x 33.1 in), B0 (39.37 in x 55.67 in), Roll (25.4 - 111.8 cm) |
| Borderless Photo Sizes | Roll (10 in), Roll (16 in), Roll (44 in), Roll (17 in), Roll (36 in), Roll (13 in), Roll (24 in), Roll (20 in) |
| Media Thickness Range | Up to 0.06 in |
| Total Media Capacity | 2 rolls |
| Media Feeders | 2 x manual - Roll (44 in) |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply |
| Voltage Required | AC 110-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 75 Watt |
| Power Consumption Stand by | 32 Watt |
| Power Consumption Sleep | 2 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 R2 SP2 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.9.5 or later, Microsoft Windows Server 2019, Apple macOS 11 or later |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission (Operating) | 49.6 dBA |
| Dimensions & Weight | |
| Width | 72.8 in |
| Depth | 19.6 in |
| Height | 38.4 in |
| Weight | 363.76 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
