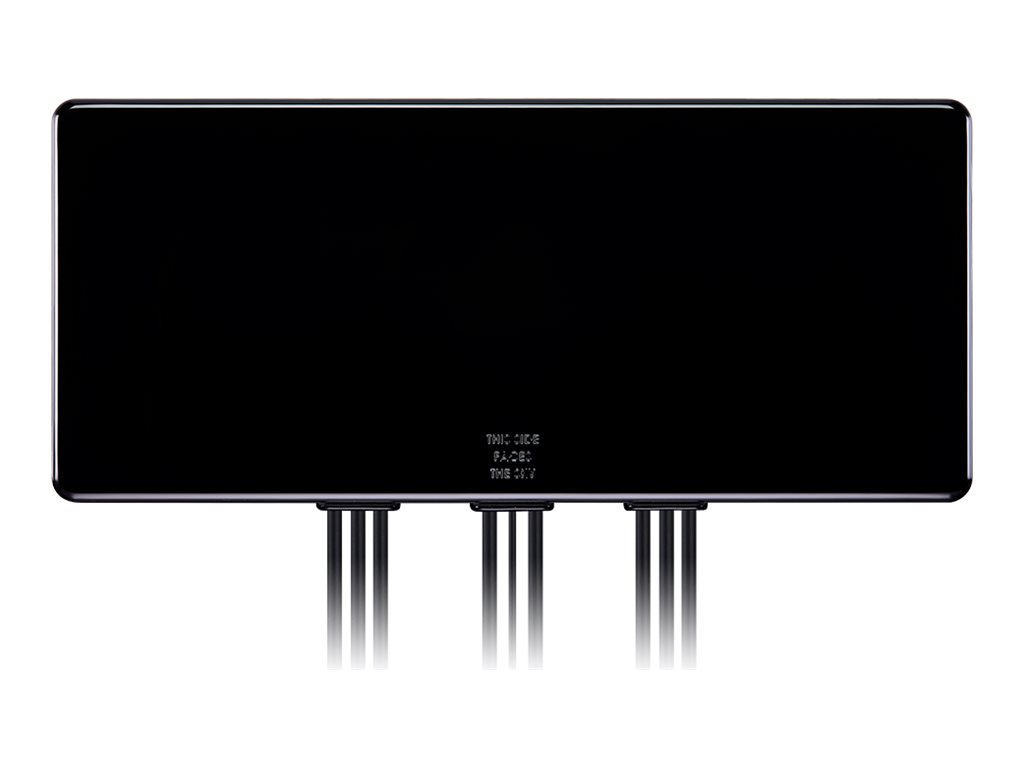

Antenna - panel - cellular, Wi-Fi, navigation - omni-directional - adhesive mount, metal surface
| Main Specifications | |
|---|---|
| Product Description | Taoglas GuardianX MA9929 - antenna |
| Device Type | Antenna |
| Form Factor | Panel |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Adhesive mount, metal surface |
| Dimensions (WxDxH) | 14.2 in x 6.3 in x 0.8 in |
| Weight | 2.87 lbs |
| Compatibility | 5G, 4G, Wi-Fi, LTE, GNSS, GLONASS, GALILEO |
| Frequency Range | 1575.42 MHz, 1602 MHz, 617 - 698 MHz, 698 - 824 MHz, 1427 - 1518 MHz, 1.71 - 1.88 GHz, 1850 - 1990 MHz, 1920 - 2170 MHz, 2300 - 2690 MHz, 3300 - 3800 MHz, 5150 - 5925 MHz, 2400 - 2500 MHz, 5.15 - 5.85 GHz, 5.925 - 7.125 GHz |
| Directivity | Omni-directional |
| Features | IP67, low profile, MIMO technology, linear polarization, right-hand circular polarization (RHCP) |
| General | |
| Product Type | Antenna |
| Form Factor | Panel |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Adhesive mount, metal surface |
| Width | 14.2 in |
| Depth | 6.3 in |
| Height | 0.8 in |
| Weight | 2.87 lbs |
| Product Material | PC plastic |
| Miscellaneous | |
| Cables Included | Antenna cable - 10 ft |
| Antenna | |
| Compatibility | 5G, 4G, Wi-Fi, LTE, GNSS, GLONASS, GALILEO |
| Frequency Range | 1575.42 MHz, 1602 MHz, 617 - 698 MHz, 698 - 824 MHz, 1427 - 1518 MHz, 1.71 - 1.88 GHz, 1850 - 1990 MHz, 1920 - 2170 MHz, 2300 - 2690 MHz, 3300 - 3800 MHz, 5150 - 5925 MHz, 2400 - 2500 MHz, 5.15 - 5.85 GHz, 5.925 - 7.125 GHz |
| Impedance | 50 Ohm |
| Max Power | 20 Watt |
| Directivity | Omni-directional |
| Features | IP67, low profile, MIMO technology, linear polarization, right-hand circular polarization (RHCP) |
| Connector Provided | |
| Type | 4 x antenna - FAKRA D connector ¦ 4 x Wi-Fi antenna - FAKRA I connector ¦ GPS antenna - FAKRA C connector |
