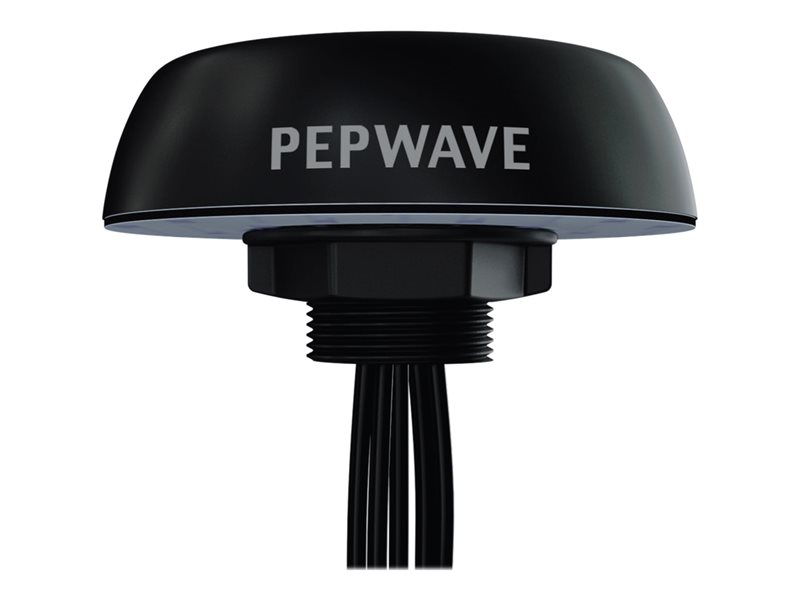

Antenna - dome - navigation, cellular - 7 dBi (for 4.9 - 6 GHz), 0.3 dBi (for 617 - 960 MHz), 5.1 dBi (for 1710 - 2700 MHz), 5.8 dBi (for 3400 - 4200 MHz), 0.5 dBi (for 1575 MHz), 1.6 dBi (for 1602 MHz) - wall-mountable, pole mount, panel mountable
| Main Specifications | |
|---|---|
| Product Description | Peplink | Pepwave Puma 401 - antenna |
| Device Type | Antenna |
| Form Factor | Dome |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Wall-mountable, pole mount, panel mountable |
| Dimensions (WxDxH) | 5.1 in x 5.1 in x 1.4 in |
| Color | Black |
| Compatibility | GPS, LTE, 5G |
| Frequency Range | 1710 - 2700 MHz, 4.9 - 6 GHz, 600 - 6000 MHz, 617 - 960 MHz, 1561 - 1602 MHz, 3.4 - 4.2 GHz |
| Gain | 7 dBi (for 4.9 - 6 GHz), 0.3 dBi (for 617 - 960 MHz), 5.1 dBi (for 1710 - 2700 MHz), 5.8 dBi (for 3400 - 4200 MHz), 0.5 dBi (for 1575 MHz), 1.6 dBi (for 1602 MHz) |
| Features | Linear polarization, IP 68, VSWR < 2.5, 4x4 MiMo |
| General | |
| Product Type | Antenna |
| Form Factor | Dome |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Wall-mountable, pole mount, panel mountable |
| Width | 5.1 in |
| Depth | 5.1 in |
| Height | 1.4 in |
| Color | Black |
| Product Material | UV-PVC |
| Miscellaneous | |
| Cables Included | Antenna cable - 1 ft |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.9 in |
| Shipping Depth | 4.3 in |
| Shipping Height | 8.5 in |
| Antenna | |
| Compatibility | GPS, LTE, 5G |
| Frequency Range | 1710 - 2700 MHz, 4.9 - 6 GHz, 600 - 6000 MHz, 617 - 960 MHz, 1561 - 1602 MHz, 3.4 - 4.2 GHz |
| Impedance | 50 Ohm |
| Gain | 7 dBi (for 4.9 - 6 GHz), 0.3 dBi (for 617 - 960 MHz), 5.1 dBi (for 1710 - 2700 MHz), 5.8 dBi (for 3400 - 4200 MHz), 0.5 dBi (for 1575 MHz), 1.6 dBi (for 1602 MHz) |
| Max Power | 10 Watt |
| Features | Linear polarization, IP 68, VSWR < 2.5, 4x4 MiMo |
| Mounting Kit | Included |
| Connector Provided | |
| Type | Antenna - QMA connector (male) |
