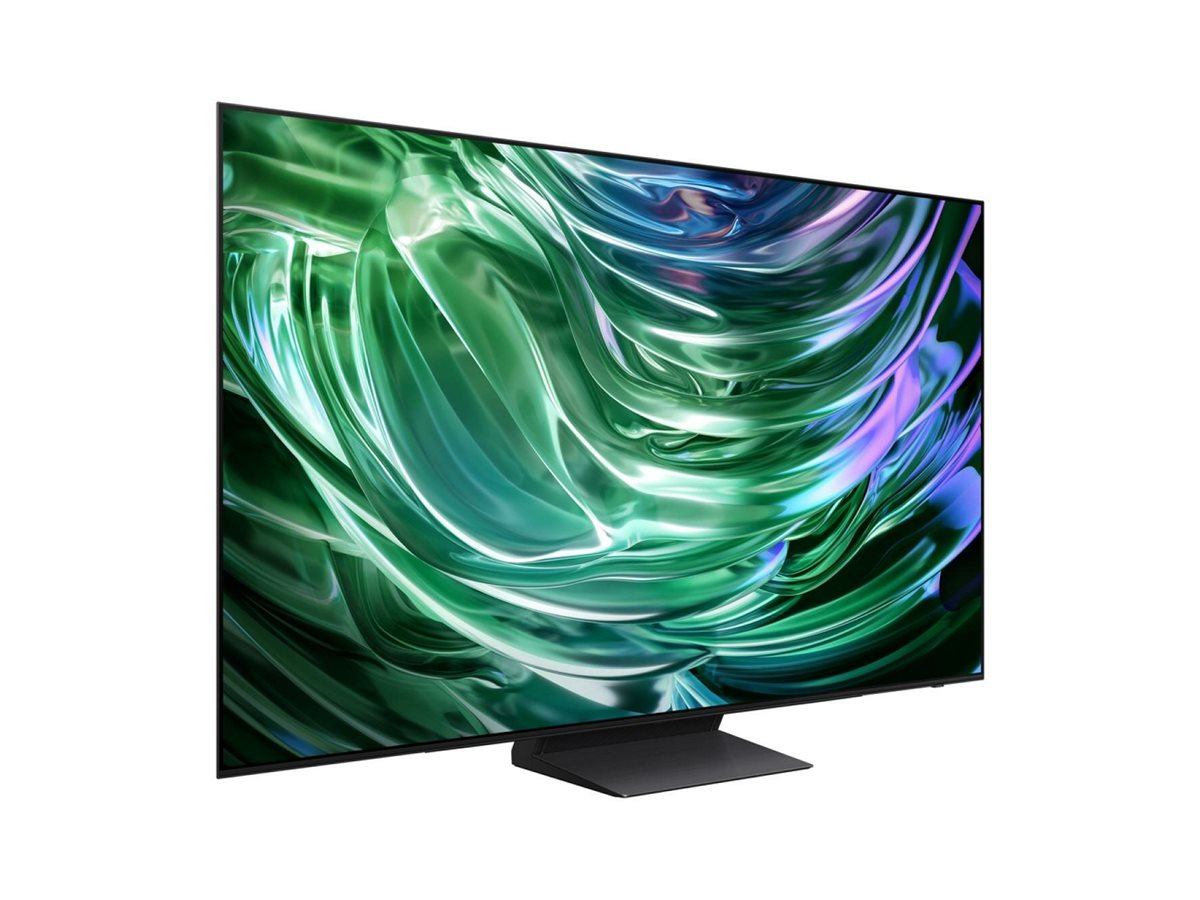

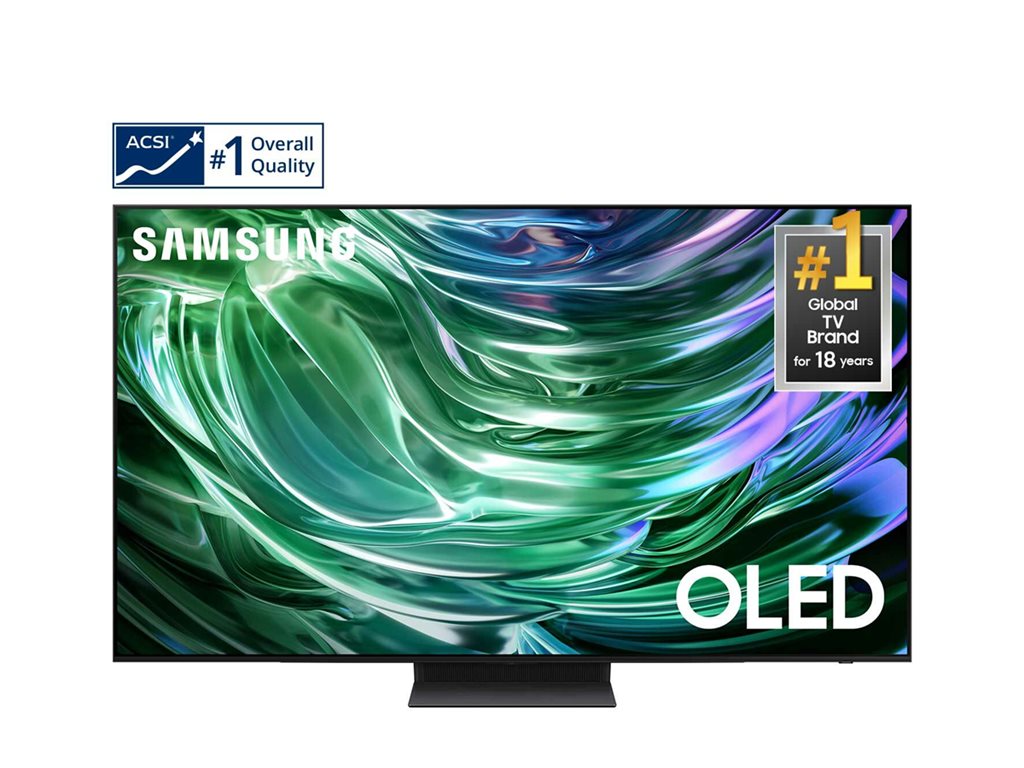

83" Diagonal Class (82.5" viewable) - S90D Series OLED TV - Smart TV - Tizen OS - 4K UHD (2160p) 3840 x 2160 - HDR - graphite black
| Main Specifications | |
|---|---|
| Product Description | Samsung QN83S90DAE S90D Series - 83" Class (82.5" viewable) OLED TV - 4K |
| Product Type | OLED TV - Smart TV |
| Diagonal Class | 83" |
| Diagonal Size | 82.5" |
| Color | Graphite black |
| Platform | Tizen OS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| HDR Format | HDR10+ |
| HDR Technology | OLED HDR, Hybrid Log-Gamma (HLG), HDR10+ Adaptive, HDR10+ Gaming |
| Frame Rate & Enhancement Technology | Motion Xcelerator 144Hz, Variable Refresh Rate (VRR), 120 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LCD Backlight Technology | Self-illuminating pixels |
| Image Aspect Ratio | 16:9 |
| Digital TV Tuner | ATSC, ClearQAM |
| Internet Streaming Services | Samsung TV PLUS |
| Picture Enhancements | Perceptional Color Mapping, Ultra Viewing Angle, adaptive picture, Real Depth Enhancer, 4K AI Upscaling, Dynamic Black EQ |
| Speaker System | 2.1 channel |
| Sound Effects | Dolby Digital MS12 |
| Platform | SmartThings, Matter |
| Intelligent Assistant | Bixby, Alexa, Google Assistant (not available for some languages and countries) |
| USB | 2 ports |
| Included Accessories | Samsung TM2360E remote control |
| Voltage | AC 110-120 V (50/60 Hz) |
| Power Consumption Operational | 162 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) - without stand | 72.8 in x 1.8 in x 41.7 in |
| Weight | 82.89 lbs |
| General | |
| Product Type | OLED TV - Smart TV |
| Power Consumption (Max) | 665 Watt |
| Power Consumption Operational | 162 Watt |
| Diagonal Class | 83" |
| Diagonal Size | 82.5" |
| Series | S90D Series |
| Model Year | 2024 |
| Platform | Tizen OS |
| HDR Capable | Yes |
| HDR Format | HDR10+ |
| HDR Technology | OLED HDR, Hybrid Log-Gamma (HLG), HDR10+ Adaptive, HDR10+ Gaming |
| Video Processor | NQ4 AI Gen2 |
| TV Tuner Presence | Yes |
| Sensors | Eco Sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Modes | Film Mode, Eye Comfort Mode, Filmmaker Mode, power saving mode, Ambient Mode+, Auto Low Latency Mode (ALLM), Game Motion Plus, HGIG Mode, AI Energy Mode |
| Picture Enhancements | Perceptional Color Mapping, Ultra Viewing Angle, adaptive picture, Real Depth Enhancer, 4K AI Upscaling, Dynamic Black EQ |
| Design | LaserSlim Design, Top Slim, 4 Bezel-less Design |
| Dimensions | Without stand |
| Width | 72.8 in |
| Depth | 1.8 in |
| Height | 41.7 in |
| Weight | 82.89 lbs |
| Enclosure Color | Graphite black |
| Miscellaneous | |
| Compliant Standards | HGiG, CEC, Pantone Validated |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 110-120 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Auto On/Off | Yes |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | Motion Xcelerator 144Hz, Variable Refresh Rate (VRR), 120 Hz Refresh Rate |
| LCD Backlight Technology | Self-illuminating pixels |
| Coating | Anti-reflection |
| Display Menu Language | English, French, Spanish |
| V-Chip Control | Yes |
| Additional Features | Smart Calibration, MBR Support, SlimFit Cam support, Samsung Health, Easy Setup, Workspace, ConnecTime, Apple AirPlay support, Samsung Daily+, Samsung Now+, Super Ultra Wide Game View, Mini Map Zoom, FreeSync Premium, Gaming Hub, Hue Sync, Game bar, Accessibility Voice guide, Accessibility Low Vision Support, hearing impaired support, Samsung Knox Security |
| Connections | |

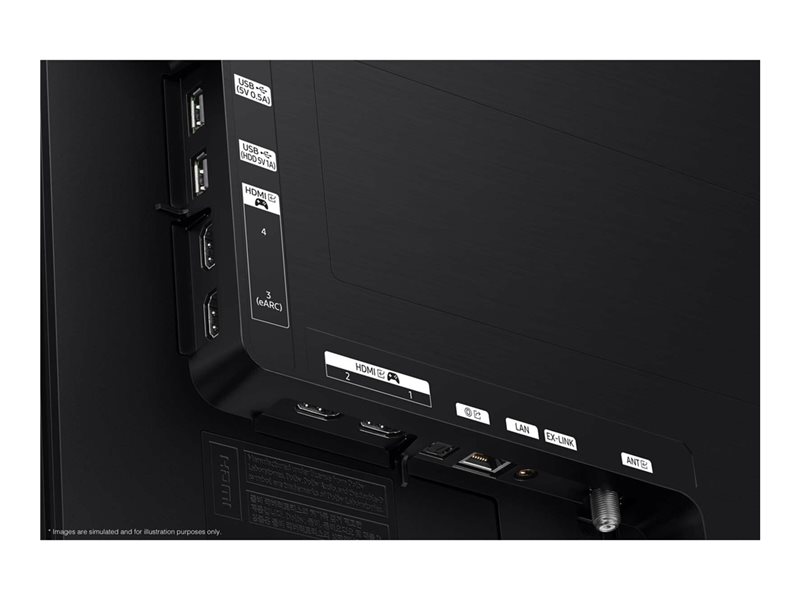

| Connector Type | 4 x HDMI ¦ 2 x USB ¦ LAN ¦ Digital audio output (optical) ¦ RS-232C ¦ Audio line-out |
| Video Features | |
| Electronic Program Guide | Digital EPG |
| Remote Control | |
| Type | Remote control |
| Remote Control Model | Samsung TM2360E |
| Features | SolarCell remote |
| Audio System | |
| Digital Audio Format | Dolby Atmos, Dolby Audio |
| Surround Mode | Yes |
| Sound Effects | Dolby Digital MS12 |
| Speaker System | 2.1 channel |
| Output Power / Total | 40 Watt |
| Additional Features | Q-Symphony, Bluetooth audio streaming, Dual Audio support, Object Tracking Sound Lite, Adaptive Sound Pro, Active Voice Amplifier Pro, 360 Audio, Far-Field Voice Interaction, Buds Auto Switch, Enhanced Audio Return Channel (eARC) |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 79.5 in |
| Depth (Shipping) | 7.4 in |
| Height (Shipping) | 48.4 in |
| Weight (Shipping) | 114.86 lbs |
| Network & Internet Multimedia | |
| Functionality | WEB browsing, Internet video playback |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11ac |
| Bluetooth Version | Bluetooth 5.2 |
| Connect & Share | IP Control, ConnectShare, Media Home, Screen Mirroring, Sound Mirroring, Tap View, Multi View |
| Internet Streaming Services | Samsung TV PLUS |
| Supported Consumer Electronics Control (CEC) | Anynet Plus |
| Dimensions & Weight Details | |

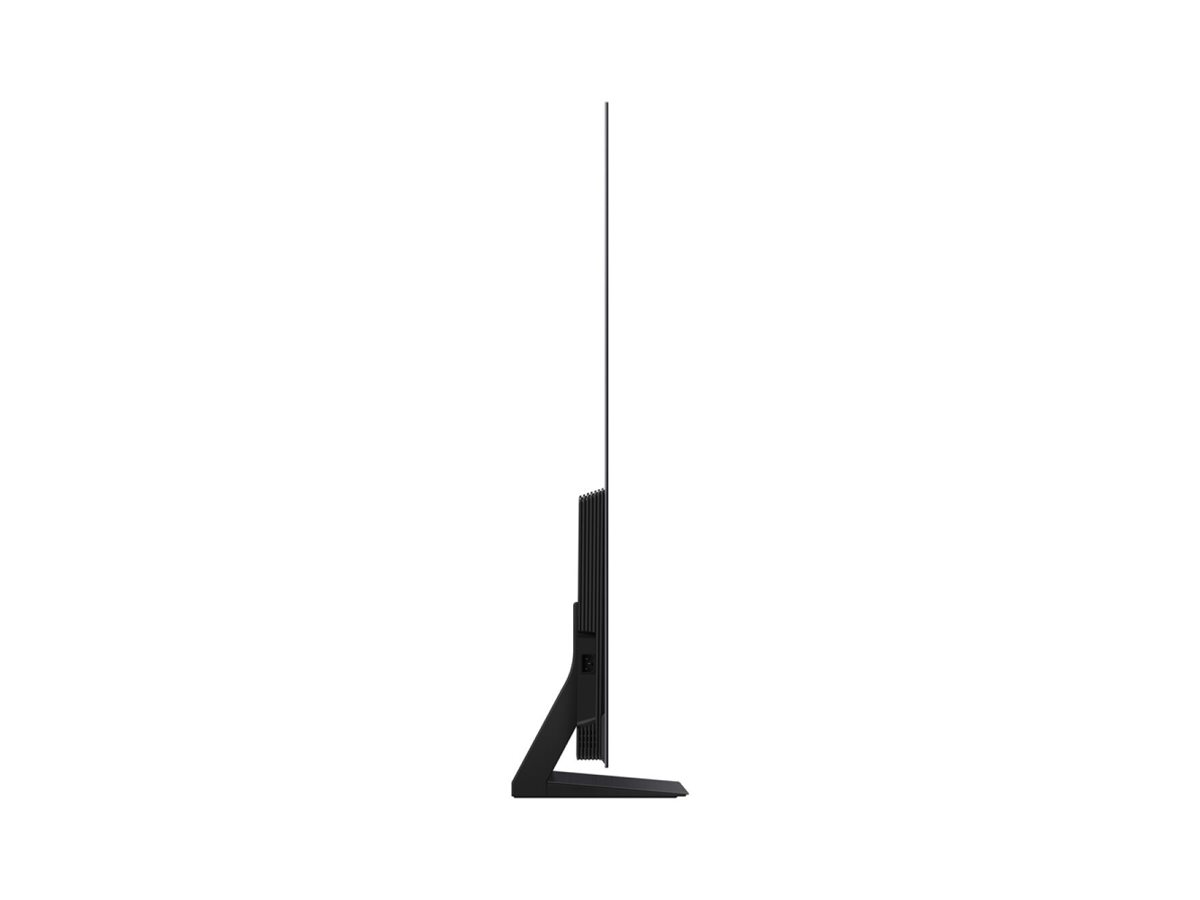

| Dimensions & Weight Details | Panel without stand - 72.8 in x 1.8 in x 41.7 in x 82.9 lbs ¦ Panel with stand - 72.8 in x 14.1 in x 44.5 in x 86.9 lbs ¦ Stand - 14.4 in x 14.1 in x 12.8 in x 4 lbs |
| Digital TV Tuner | |
| Digital TV Tuner | ATSC, ClearQAM |
| Stands & Mounts | |
| Stand | Included |
| Stand Design | Tabletop |
| Stand Color | Space titan |
| Stand Features | Simple Plus Blade |
| Flat Panel Mount Interface | 400 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | SmartThings, Matter |
| Communications Technology | Zigbee, Thread |
| Intelligent Assistant | Bixby, Alexa built-in, Google Assistant (not available for some languages and countries) |
