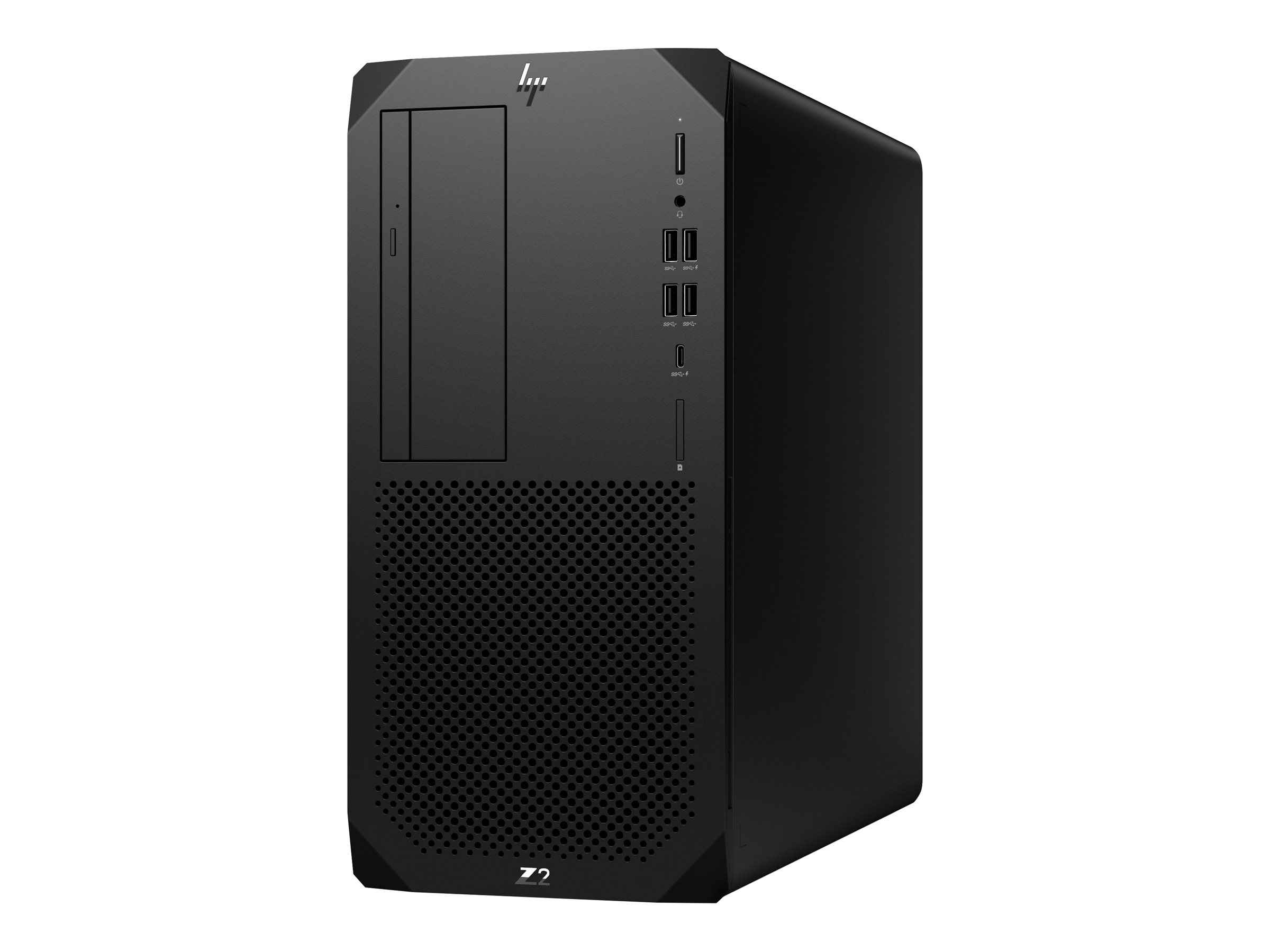

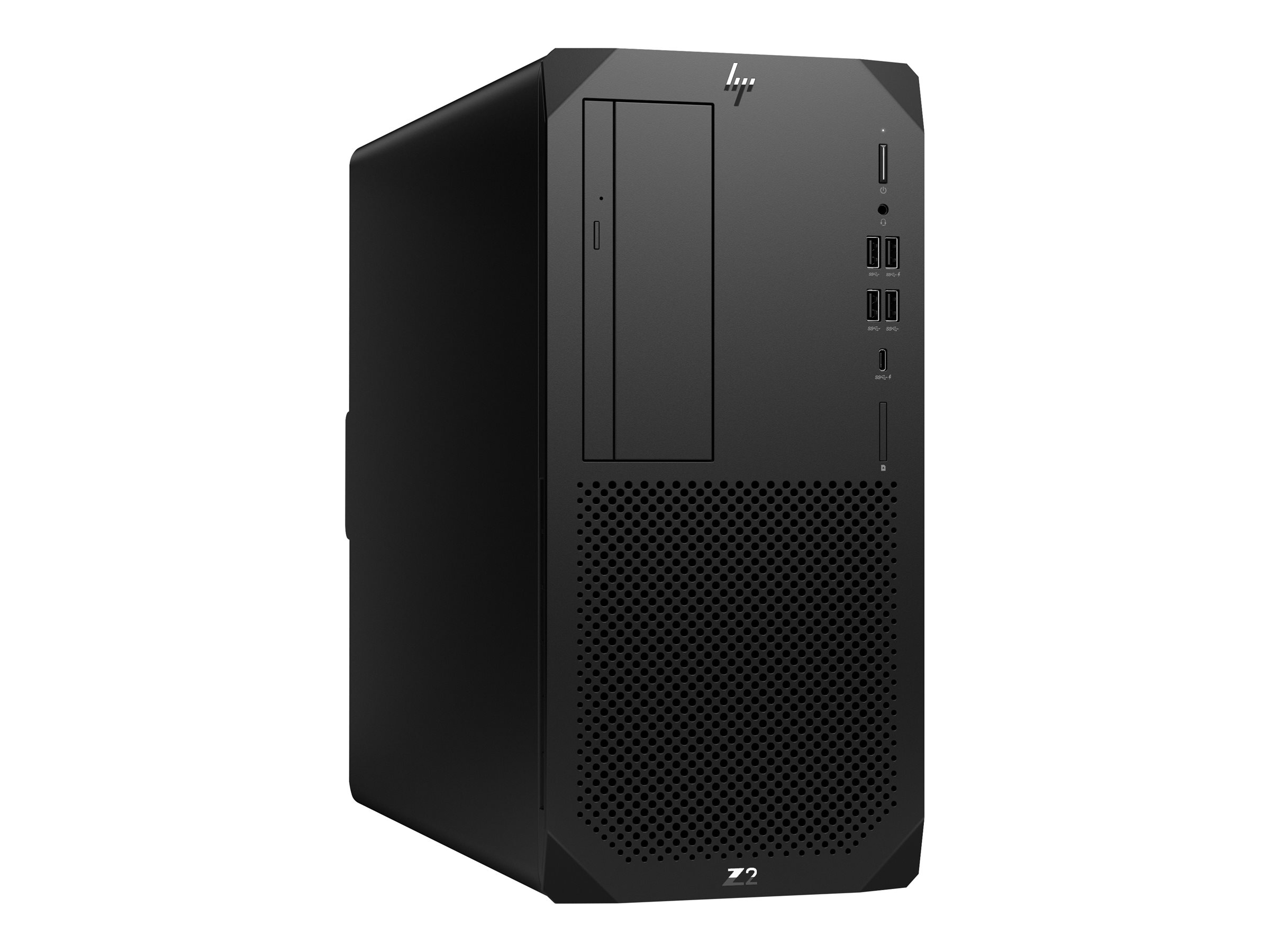

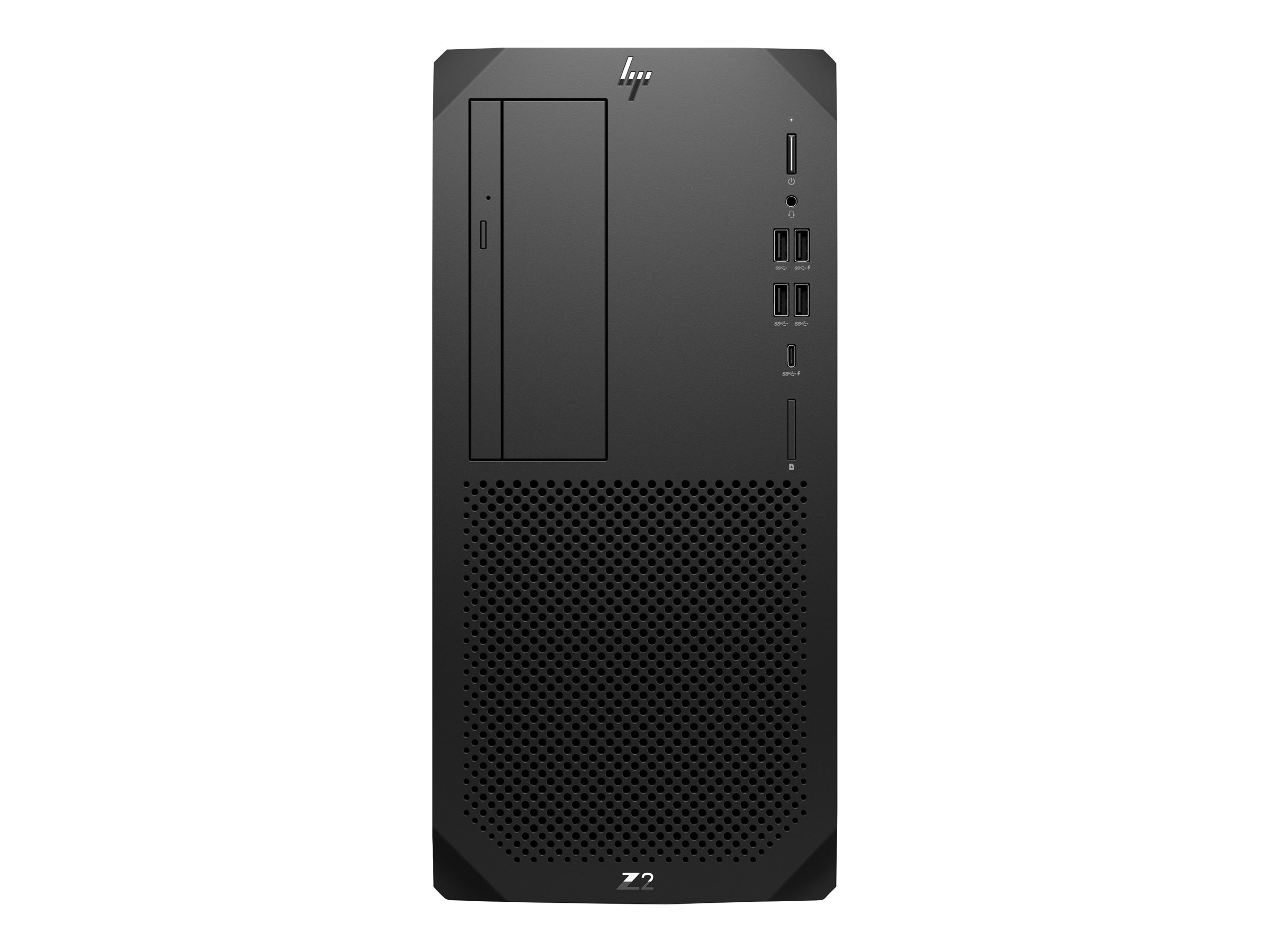

Tower 4U - 1 x Core i7 13700 / up to 5.2 GHz - RAM 32 GB - SSD 1 TB - NVMe - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z2 G9 - tower Core i7 13700 2.1 GHz - 32 GB - SSD 1 TB - US |
| Type | Workstation - tower |
| Height (Rack Units) | 4U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Core i7 (13th Gen) 13700 / 2.1 GHz (up to 5.2 GHz, (16-core) |
| Processor Socket | LGA1700 Socket |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 (NVMe)) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 Unified Memory Architecture (UMA) |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP PC Hardware Diagnostics UEFI, HP Support Assistant, HP PC Hardware Diagnostics Windows, HP Image Assistant, HP Manageability Integration Kit, HP Performance Advisor 3.0, HP Driver Packs, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP System Software Manager (free download), HP BIOS Configuration Utility (free download), HP Secure Erase, HP Sure Click, HP BIOSphere Gen6, HP Sure Admin, HP Client Security Manager Gen6, HP Sure Start Gen7, HP Sure Recover Gen4, HP Sure Sense Gen2, HP Sure Run Gen5 |
| Color | Black |
| Dimensions (WxDxH) | 6.7 in x 15.2 in x 14 in |
| Weight | 13.67 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Workstation |
| Product Form Factor | Tower - 4U |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 (x4 mode) ¦ 3 (total) / 2 (free) x M.2 Card - 2280 (for SSD) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (for WLAN) |

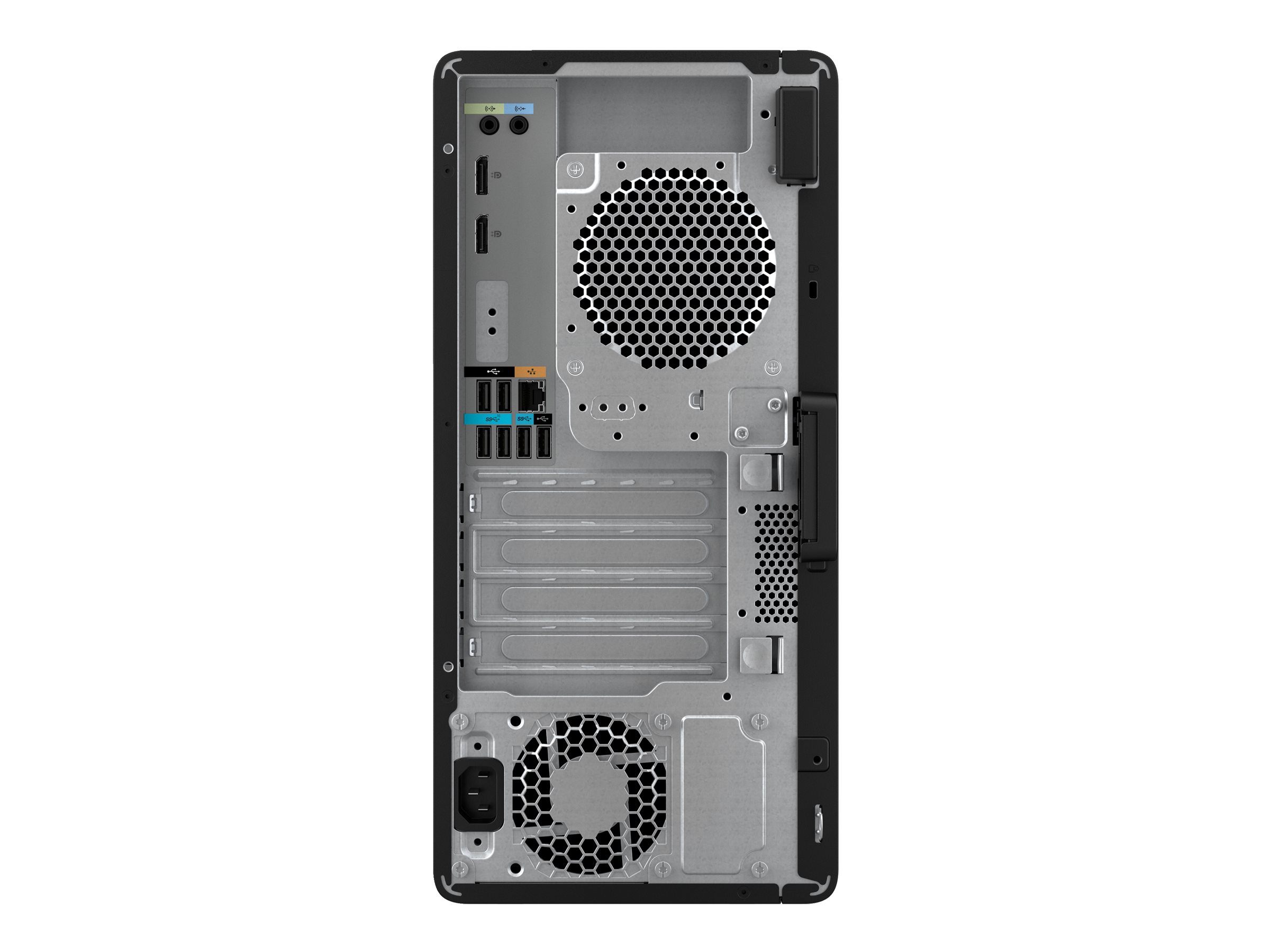

| Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 6 x USB 3.2 Gen 2 (4 front, 2 rear) (one of them is charging) ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 2 x DisplayPort 1.4 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x USB 3.2 Gen 1 ¦ 3 x USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, Energy-Related Products (ErP) Lot 6, CECP, SEPA, low halogen, ISV Certified |
| RAM | |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 2 (empty) |
| Features | Unbuffered |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, Intel Active Management Technology (AMT) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Power Provided | 350 Watt |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Unified Memory Architecture (UMA) |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP PC Hardware Diagnostics UEFI, HP Support Assistant, HP PC Hardware Diagnostics Windows, HP Image Assistant, HP Manageability Integration Kit, HP Performance Advisor 3.0, HP Driver Packs, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP System Software Manager (free download), HP BIOS Configuration Utility (free download), HP Secure Erase, HP Sure Click, HP BIOSphere Gen6, HP Sure Admin, HP Client Security Manager Gen6, HP Sure Start Gen7, HP Sure Recover Gen4, HP Sure Sense Gen2, HP Sure Run Gen5 |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 15.2 in |
| Height | 14 in |
| Weight | 13.67 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.6 in |
| Shipping Depth | 19.3 in |
| Shipping Height | 20.4 in |
| Keyboard | |
| Keyboard Name | HP Business Slim Smart Card CCID Keyboard |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 125 |
| Processor / Chipset | |
| CPU | Intel Core i7 (13th Gen) 13700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.2 GHz (P-core) / 4.1 GHz (E-core) |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 24 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel W680 |
