Network surveillance camera - PTZ - color - 8 MP - 3840 x 2160 - motorized - audio - 12G-SDI, HDMI - LAN - USB 3.0 - H.265, HEVC, H.264, MPEG-TS - DC 12 V / PoE Plus

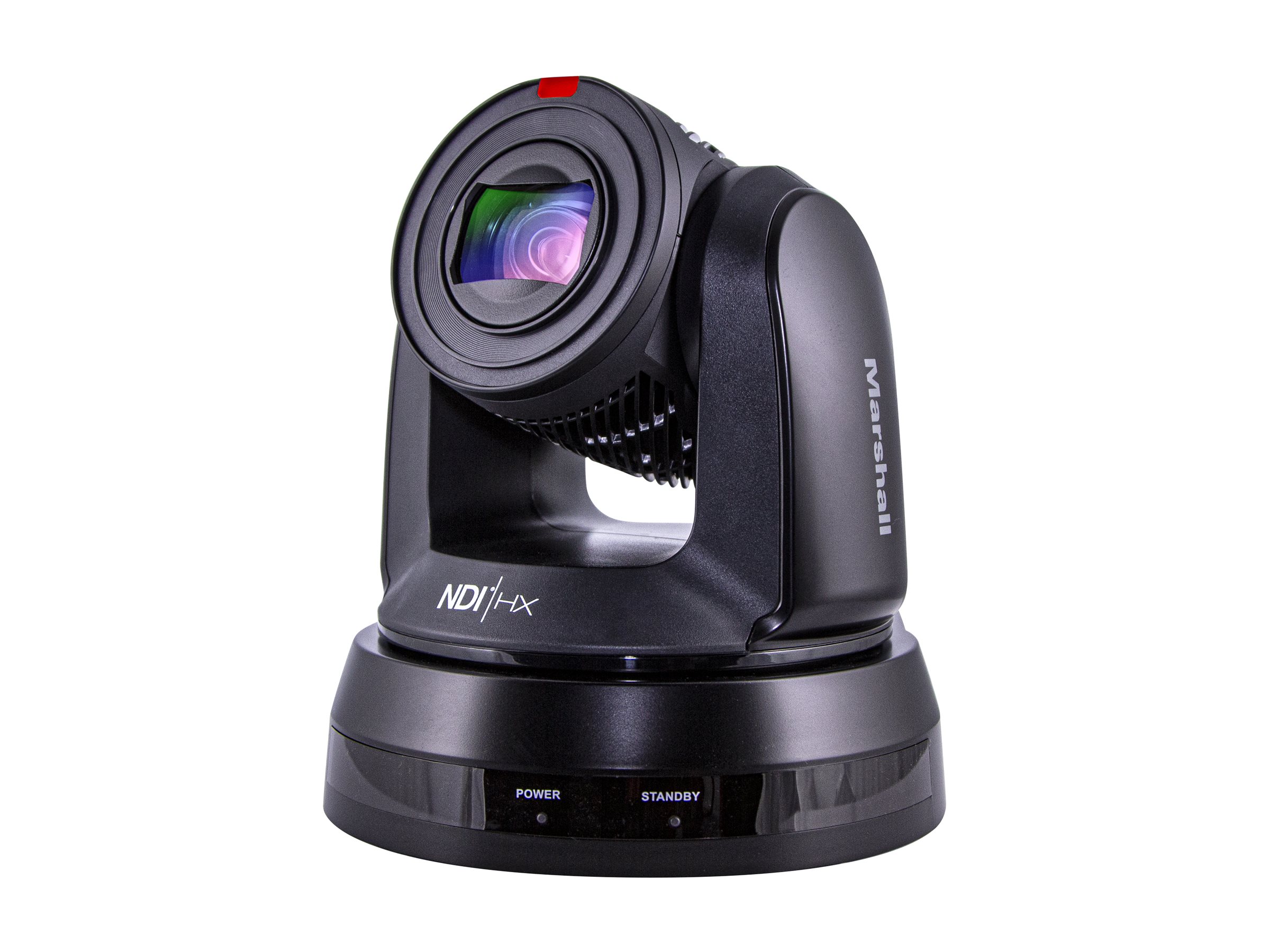

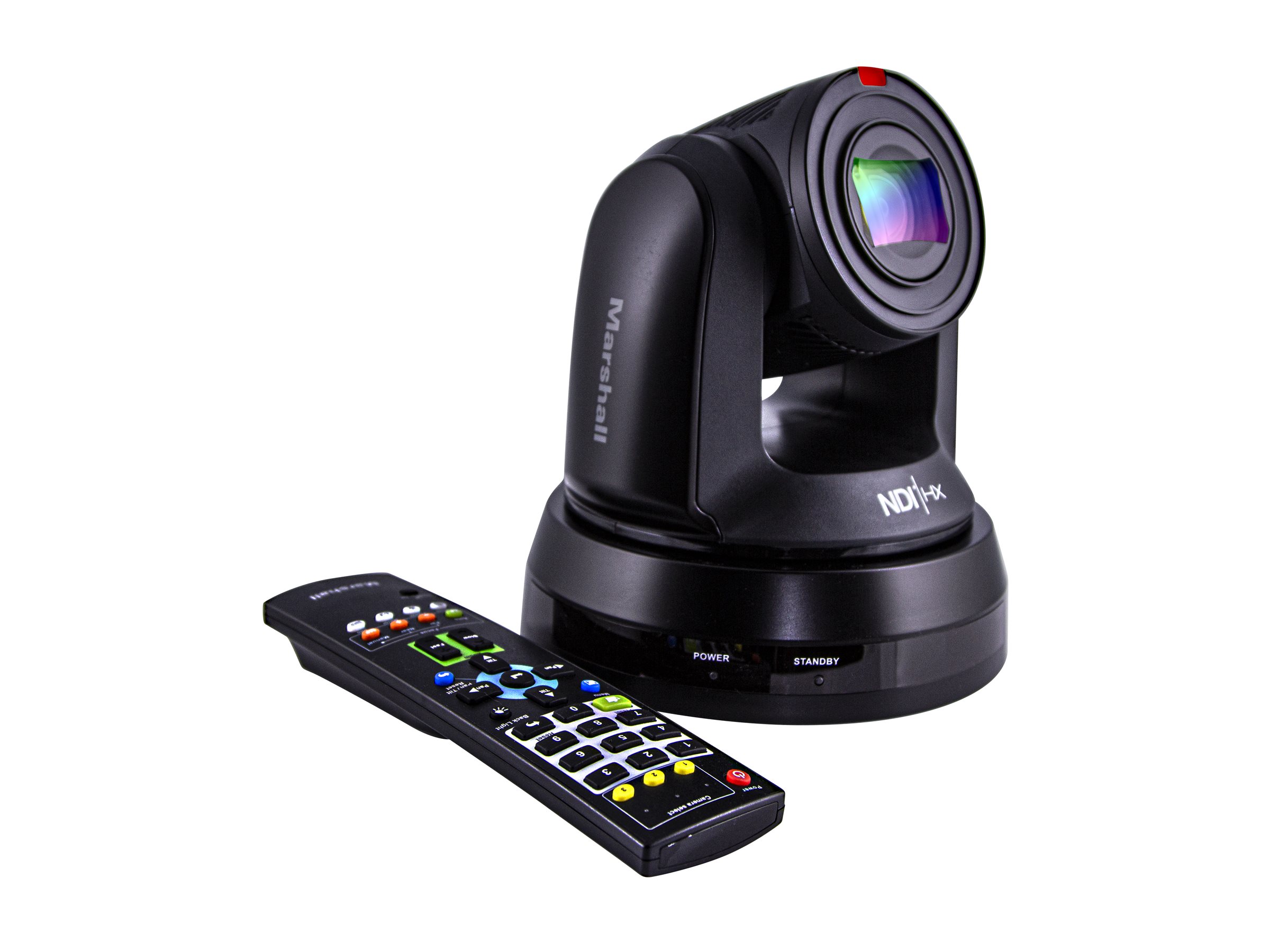

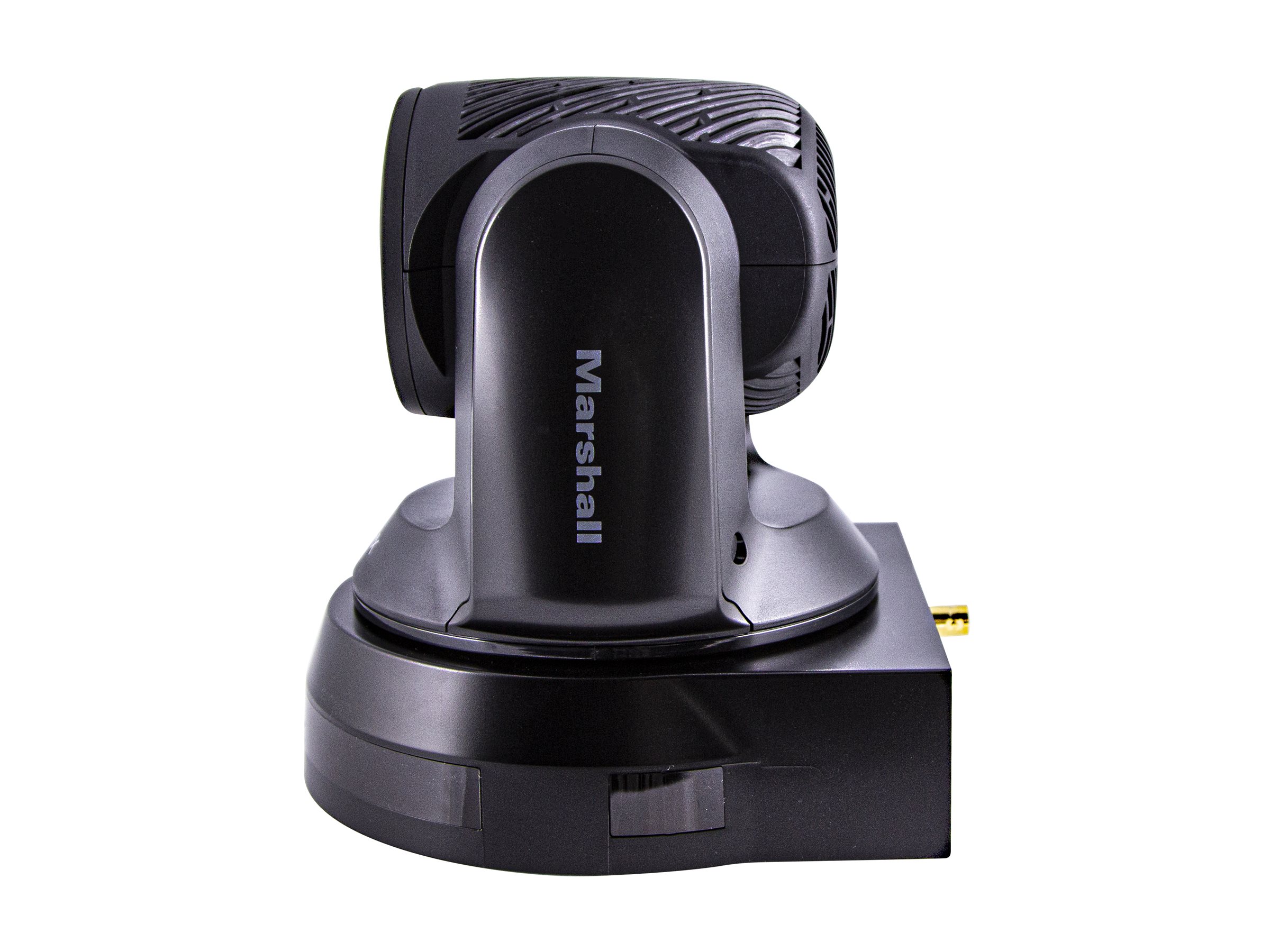

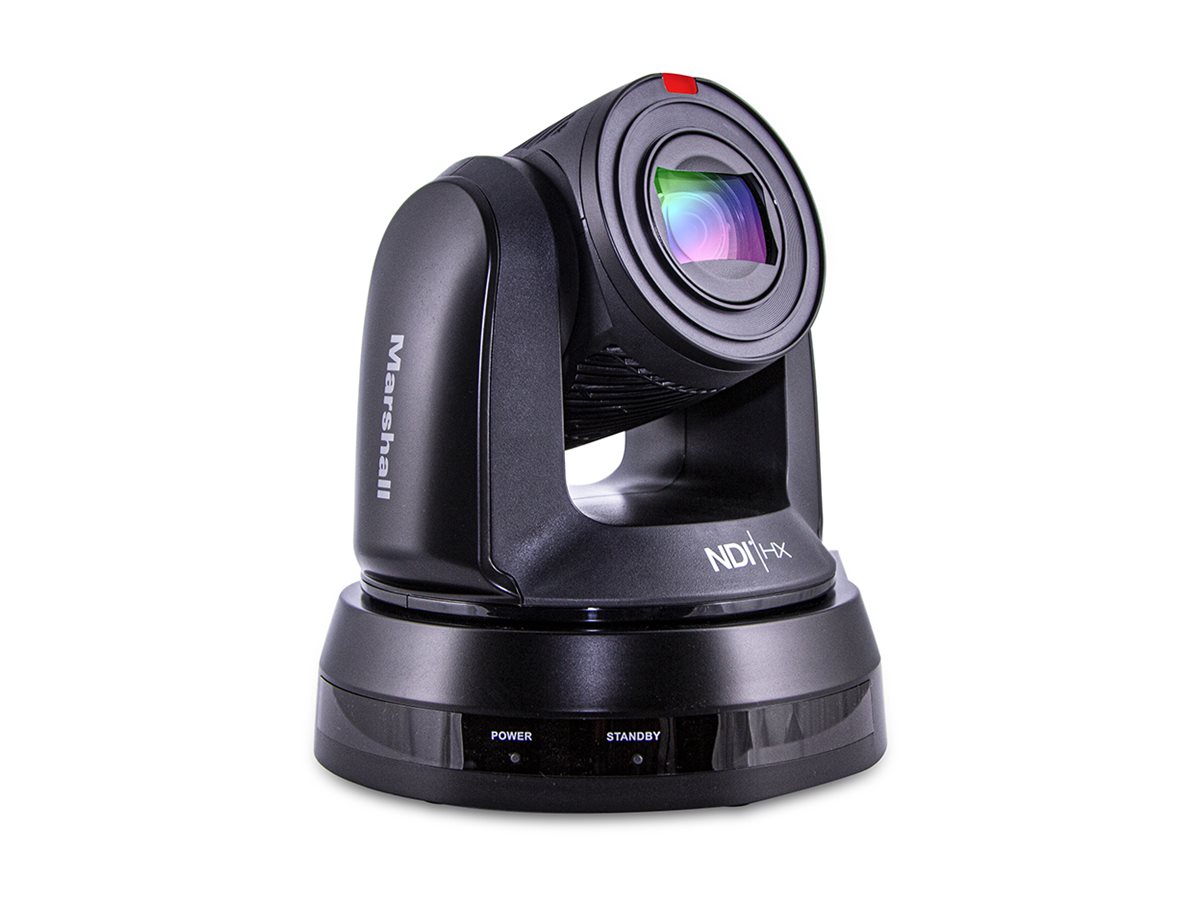

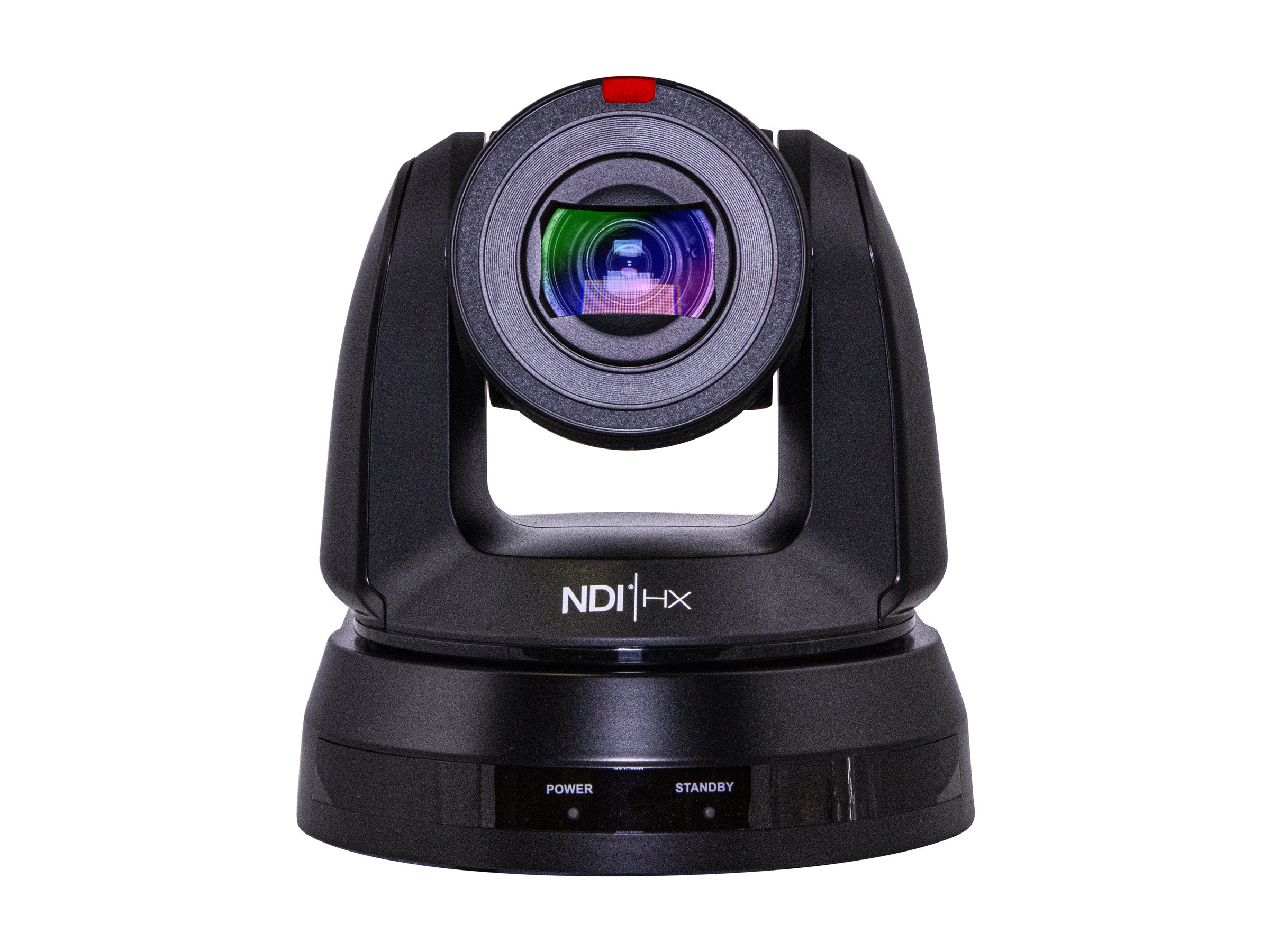

The Marshall CV630-ND3 network surveillance camera is designed for diverse environments, with a robust operating temperature range from 0°C to 40°C. This camera features an optical sensor with a total of 8,000,000 pixels, capturing visuals in resolutions up to 3840 x 2160 pixels. It includes a motorized zoom lens, offering a focal length from 4.8 mm to 120.5 mm, and a wide 70-degree field of view, making it ideal for various applications. Additionally, the camera supports multiple video formats, including H.264 and HEVC, ensuring high-quality digital video output. Connectivity is made seamless with various interfaces, including HDMI output, 3G-SDI, and support for network protocols like NDI HX3 and RTMP. The device is compatible with PoE Plus, simplifying installation and reducing cabling complexity. With features like auto focus, manual white balance, and image control, users can easily achieve precise image quality tailored to their needs. The camera also provides a control interface through RS-422 and RS-232, allowing for fine adjustments and remote management.
The 1/2.5 inch CMOS optical sensor provides clarity with 8,000,000 total pixels, capturing detailed images across various lighting conditions.
Equipped with multiple interfaces, including HDMI and various serial connections, this camera easily integrates into a variety of systems.
The motorized zoom lens allows for focal lengths between 4.8 mm and 120.5 mm, delivering adaptability to different shooting scenarios.
Supports RTSP, CGI, and other protocols, ensuring smooth communication with network systems for remote control and monitoring.
Designed to function in temperatures from 0°C to 40°C, this camera is suitable for a wide range of environments and applications.
| Main Specifications | |
|---|---|
| Product Description | Marshall CV630-ND3 - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Audio | Yes |
| Dimensions (WxDxH) | 6.9 in x 7.3 in x 7.5 in |
| Weight | 4.41 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 25 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080p, 1080i, 720p, 2160p |
| Optical Sensor Type | CMOS - 1/2.5" - 8 MP |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.8 mm - 120.5 mm |
| Lens Iris | F/1.5-3.4 |
| Panning Range (degree) | 340 |
| Tilting Range (degree) | 120 |
| Interfaces | USB 3.0, 12G-SDI, HDMI, LAN |
| Control Interface | RS-232, RS-422 |
| Voltage | DC 12 V / PoE Plus |
| Features | Auto Focus, auto gain control, manual gain control, manual white balance, auto white balance, exposure control, 256 preset positions, PELCO D protocol support, VISCA over IP, VISCAIP protocol support, USB Video Device Class (UVC) mode, tally light, LED indicator, FreeD protocol support |
| Environmental Parameters (operating) | 32 °F - 104 °F |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 6.9 in |
| Depth | 7.3 in |
| Height | 7.5 in |
| Weight | 4.41 lbs |
| Expansion / Connectivity | |

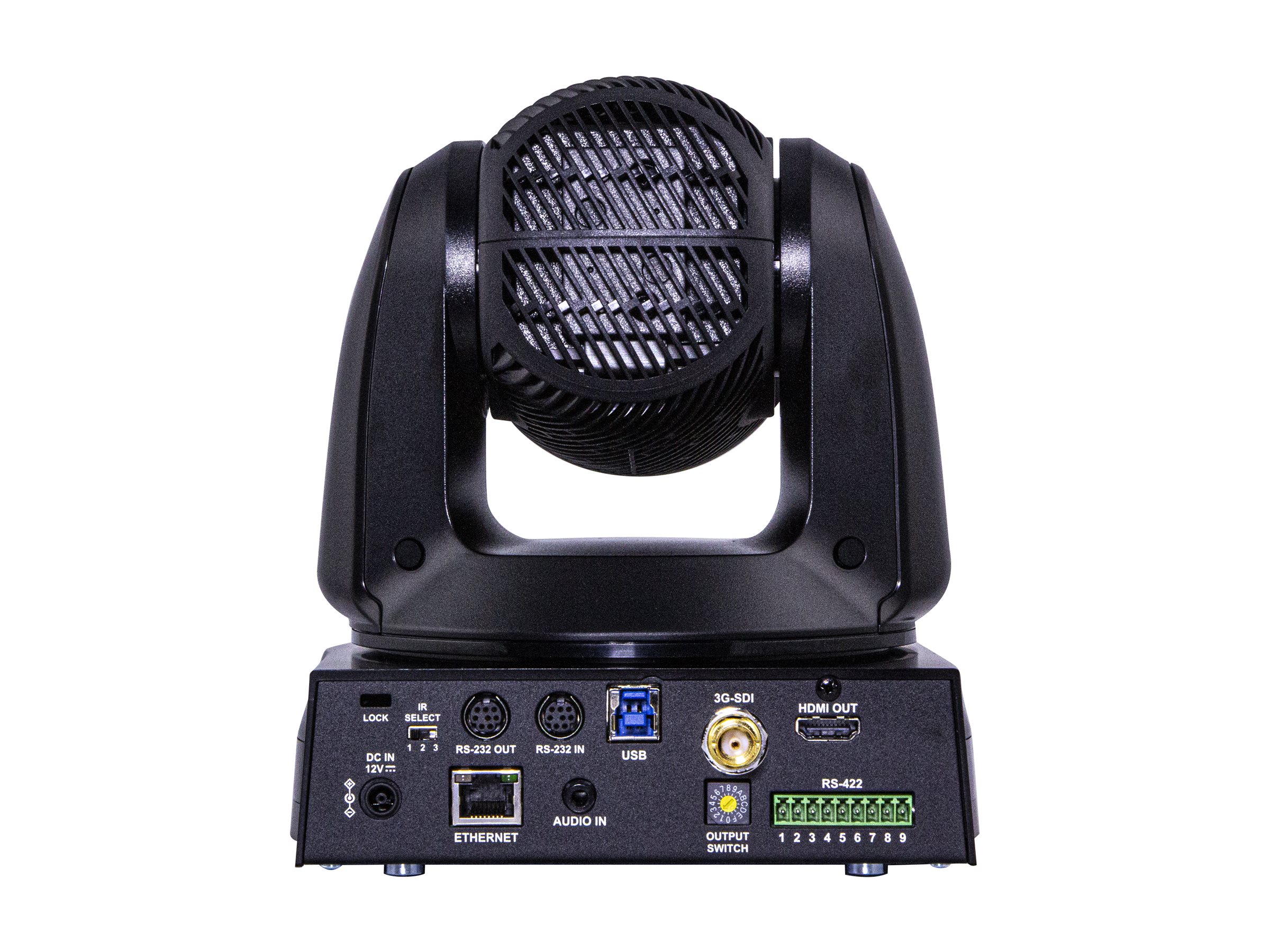

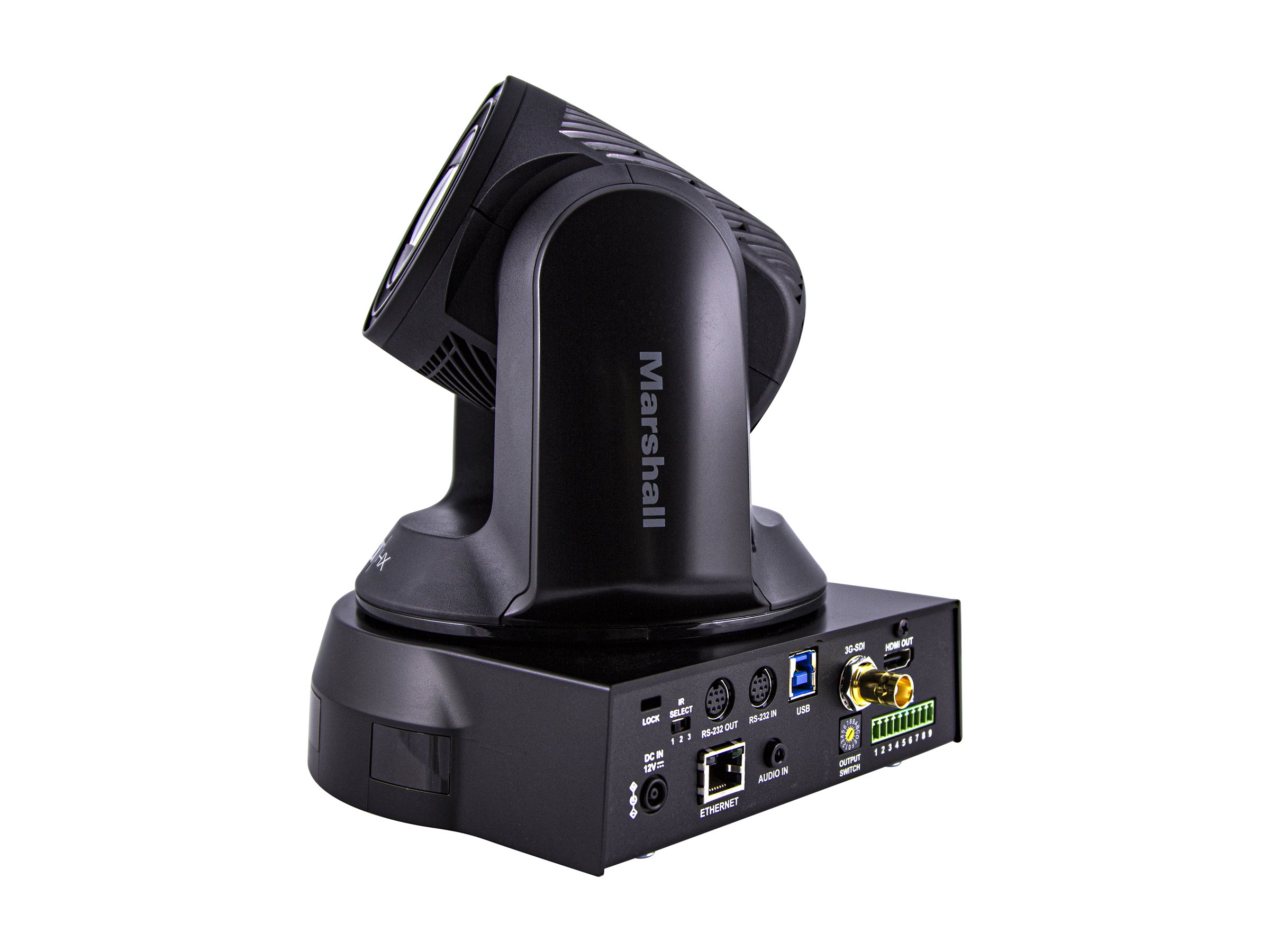

| Ports | 3G-SDI ¦ HDMI output ¦ Audio line-in/microphone ¦ LAN/power - RJ-45 ¦ Serial RS-232 input ¦ Serial RS-232 output ¦ Serial RS-422 - terminal block ¦ USB - 9 pin USB Type B |
| Miscellaneous | |
| Compliant Standards | PoE+, IEEE 802.3at |
| Color | Black |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | Power adapter - external |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.265, HEVC, H.264, MPEG-TS |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 1080p, 1080i, 720p, 2160p |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Frame Rate (max) | 60 frames per second |
| Features | Auto Focus, auto gain control, manual gain control, manual white balance, auto white balance, exposure control, 256 preset positions, PELCO D protocol support, VISCA over IP, VISCAIP protocol support, USB Video Device Class (UVC) mode, tally light, LED indicator, FreeD protocol support |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 25 x |
| Focal Length | 4.8 mm - 120.5 mm |
| Lens Iris | F/1.5-3.4 |
| Horizontal Field of View (degree) | 70 |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.5" |
| Interfaces | |
| Video | 12G-SDI, HDMI |
| Network Interface | LAN |
| Network Protocols | NDI HX3, ONVIF, CGI, NDI HX2, RTSP, RTMP, RTMPS, SRT |
| Computer Interface | USB 3.0 |
| Control Interface | RS-232, RS-422 |
| Panning | |
| Range (degree) | 340 |
| Tilting | |
| Range (degree) | 120 |
