Touch panel - 8" - wired - 10/100/1000 Ethernet
| Main Specifications | |
|---|---|

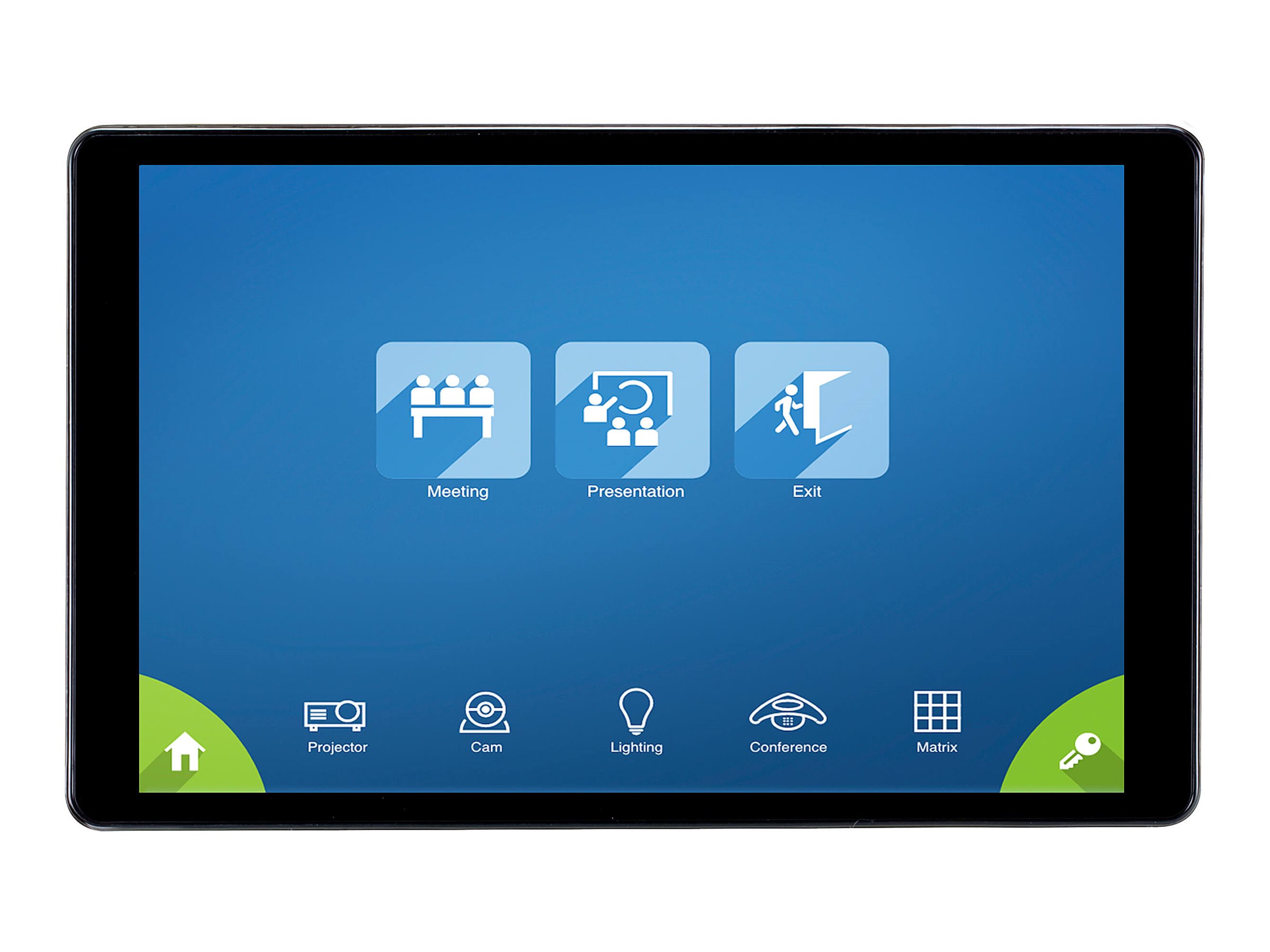

| Product Description | ATEN VK320 - touch panel - 8" |
| Product Type | Touch panel |
| Placing / Mounting | Wall-mounting |
| Power Source | PoE |
| Connectivity | Wired - 10/100/1000 Ethernet |
| Display | 8" - IPS - color - Yes |
| Dimensions (WxDxH) | 7.9 in x 1.5 in x 4.9 in |
| General | |
| Product Type | Touch panel |
| Power Source | PoE |
| Placing / Mounting | Wall-mounting |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Display | 8" - IPS - color |
| Display Resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Interfaces Details | USB-C ¦ LAN |
| Features | 300 cd/m2 brightness, +/- 85° horizontal viewing angle, +/- 85° vertical viewing angle, 800:1 contrast, 16:10 aspect ratio, capacitive touch screen, PoE |
| Miscellaneous | |
| Included Accessories | 86-type junction box, mounting screws, 90° RJ-45 cable adapter |
| Product Material | Plastic |
| Voltage Required | DC 12 V / PoE V |
| Compliant Standards | IEEE 802.3at |
| Processor | |
| CPU | Quad Core |
| RAM | |
| Installed Size | 2 GB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 75% RH (non-condensing) |
| Flash Memory | |
| Installed Size | 32 GB |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 1.5 in |
| Height | 4.9 in |
| Weight | 11.64 oz |
