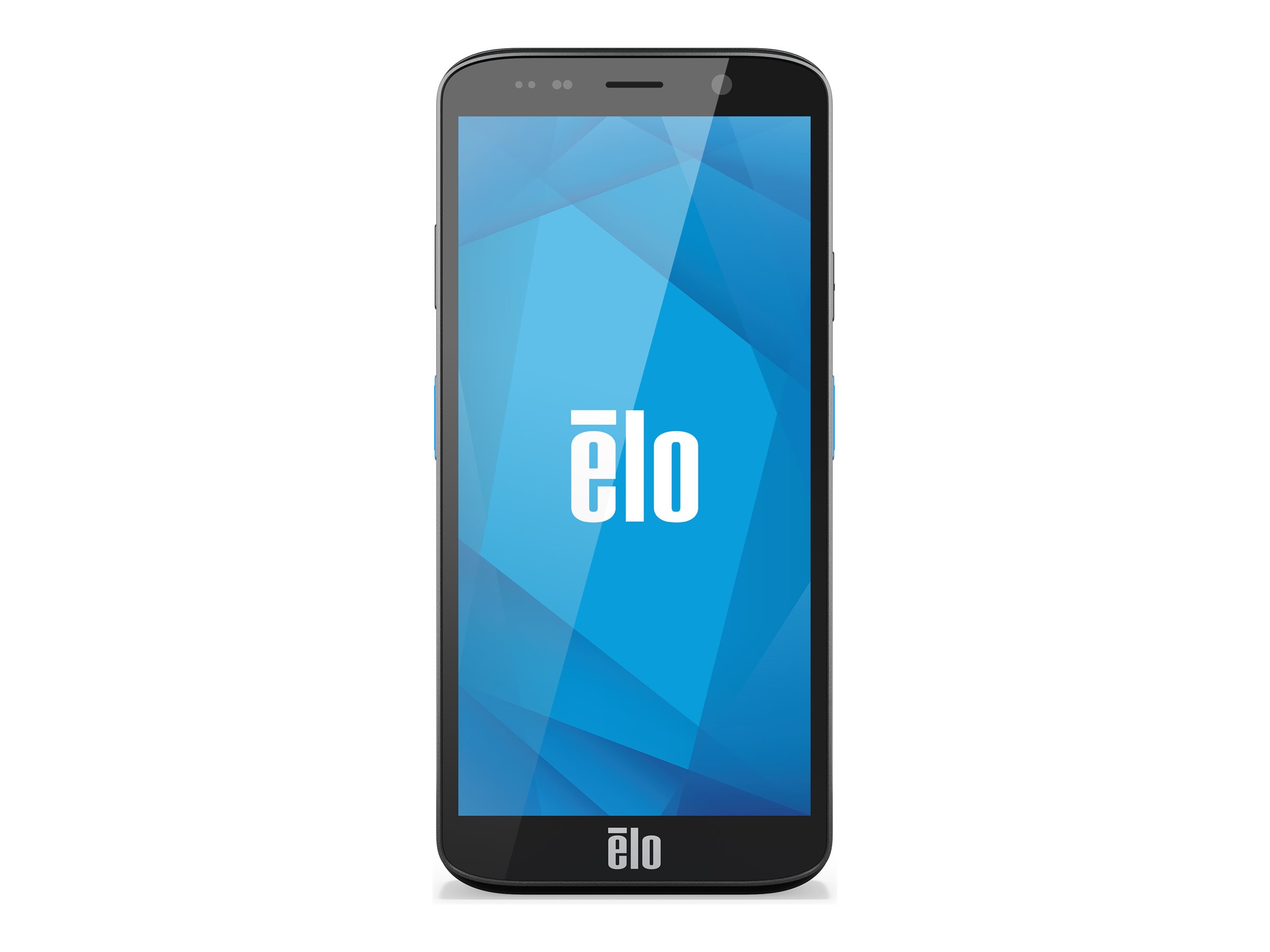

Data collection terminal - rugged - Android 14 - 128 GB - 6" (2160 x 1080) - rear camera + front camera - barcode reader - (2D imager) - microSD slot - NFC, Wi-Fi 6E, Bluetooth
| Main Specifications | |
|---|---|
| Product Description | Elo M51 - data collection terminal - Android 14 - 128 GB - 6" |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 14 |
| Display | 6" LED backlight - 2160 x 1080 - Multi-Touch |
| Processor | Qualcomm 6490 |
| Processor Clock Speed | 2.7 GHz |
| Storage | 128 GB |
| RAM | 8 GB |
| Supported Flash Memory Cards | microSDXC, microSDHC UHS-I Memory Card |
| Wireless Connectivity | NFC, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
| Rear Camera | 13 Megapixel focus: automatic |
| Front Camera | 8 Megapixel |
| Barcode Reader | Yes (2D imager) |
| RFID Specification | Mifare, Felica, ISO 15693, ISO 14443 |
| Battery Run Time | Up to 12 hours |
| Dimensions (WxDxH) | 6.6 in x 3.1 in x 0.6 in |
| Weight | 10.51 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 14 |
| Memory | |
| Storage | 128 GB |
| RAM | 8 GB - LPDDR5 SDRAM |
| Supported Flash Memory Cards | microSDXC, microSDHC UHS-I Memory Card |
| Max Supported Capacity | 1 TB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Sensors | Light sensor, proximity sensor, accelerometer |
| Features | QC4.0 Quick Charge, vibration, SE4100 imager |
| Included Accessories | Power adapter |
| Cables Included | USB-C cable - 6 ft |
| Compliant Standards | IP68, GMS, UL, FCC Class B certified, IC, CB, RCM, NOM, cUL |
| Processor | |
| Processor | Qualcomm 6490 |
| Processor Clock Speed | 2.7 GHz |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 140 °F |
| Software | |
| Preloaded Software | OEMConfig, Provisioning Tools |
| Battery | |
| Capacity | 4500 mAh |
| Run Time | Up to 12 hours |
| Display | |
| Type | 6" - LED backlight |
| Resolution | 2160 x 1080 |
| Touchscreen | Multi-Touch |
| Image Brightness | 500 cd/m² |
| Features | Chemically strengthened glass, GorillaGlass Victus, water resistant, anti-fingerprint (AF) coating, In-Cell Projected Capacitive (PCAP) Touch Technology |
| Communications | |
| Wireless Connectivity | NFC, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
| Security Protocols & Features | MIMO technology |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 3.1 in |
| Height | 0.6 in |
| Weight | 10.51 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.7 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 2.9 in |
| Shipping Weight | 24.69 oz |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| RFID | |
| RFID Specification | Mifare, Felica, ISO 15693, ISO 14443 |
| Multimedia | |
| Audio | Dual noise-cancelling microphones, two stereo speakers |
| Expansion and Connectivity | |
| Interfaces | 1 x USB-C |
| Front Camera | |
| Sensor Resolution | 8 Megapixel |
| Features | Fixed focus |
| Rear Camera | |
| Sensor Resolution | 13 Megapixel |
| Focus Adjustment | Automatic |
| Light Source | LED flash |
