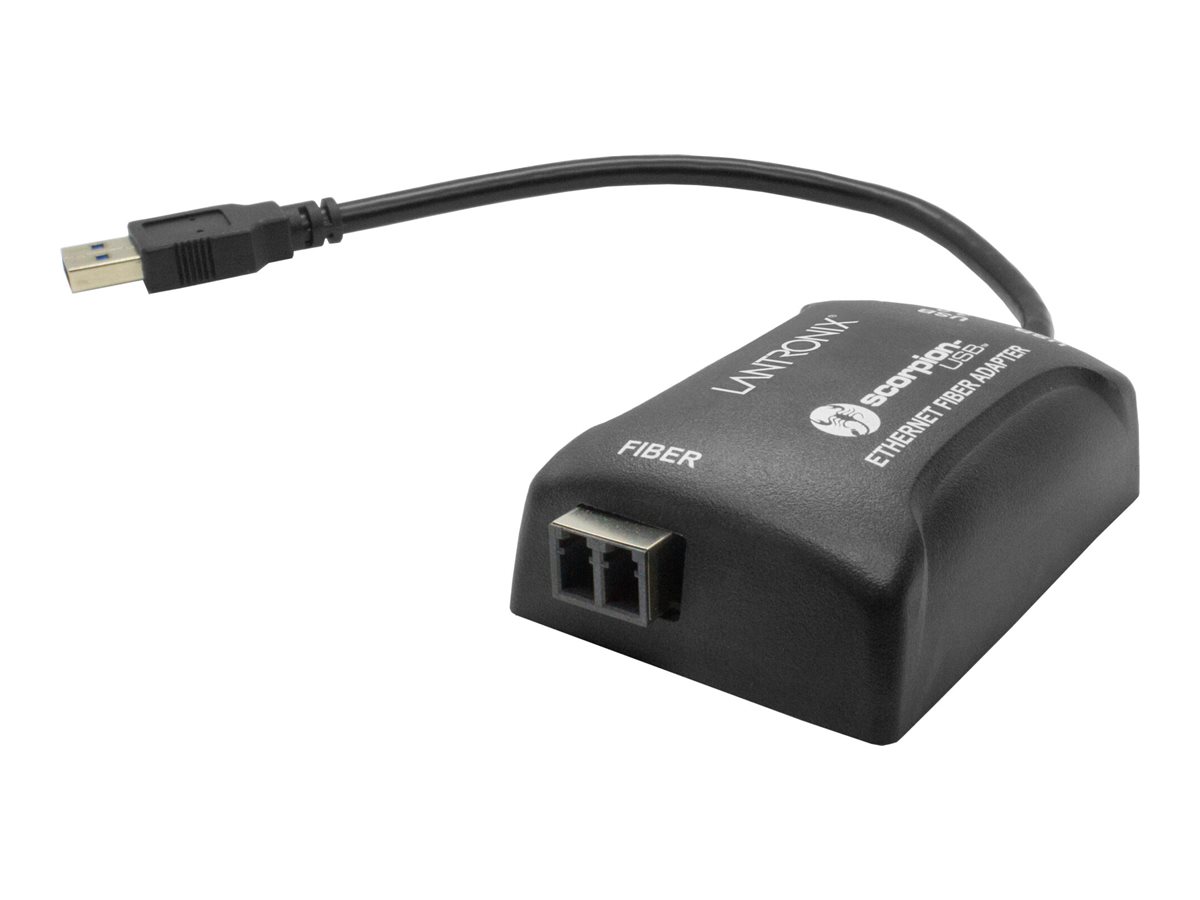

Network adapter - USB 3.0 - 1000Base-SX - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix TN-USB3 Series - network adapter - USB 3.0 - 1000Base-SX - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Ports | 1000Base-SX |
| Dimensions (WxDxH) | 2.2 in x 9.2 in x 0.8 in |
| Weight | 5.64 oz |
| Cabling Type | Ethernet 1000Base-SX |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 1800 ft |
| Compliant Standards | IEEE 802.3-2008, IEEE 802.1Q, USB 3.0 |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10, Linux, Apple MacOS X 10.6 - 10.11 |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-SX - LC multi-mode - female - x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Cables Included | 1 x SuperSpeed USB cable (integrated) - 9 in |
| MTBF | >5,800,000 hours |
| Compliant Standards | NDAA, EN55032 Class A, EN55024, FCC Part 15 B Class A, WHQL |
| TAA Compliant | Yes |
| Networking | |
| Ports | 1000Base-SX |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-SX |
| Data Link Protocol | Gigabit Ethernet |
| Max Transfer Distance | 1800 ft |
| Status Indicators | Port transmission speed, link/activity |
| Features | 7 dB link budget, USB powered, ABS housing |
| Compliant Standards | IEEE 802.3-2008, IEEE 802.1Q, USB 3.0 |
| Power | |
| Power Consumption Operational | 2.1 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Linux, Apple MacOS X 10.6 - 10.11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 9.2 in |
| Height | 0.8 in |
| Weight | 5.64 oz |
