NAS server - 16 TB - HDD 8 TB x 2 - RAID 1 - RAM 8 GB - Gigabit Ethernet
| Main Specifications | |
|---|---|

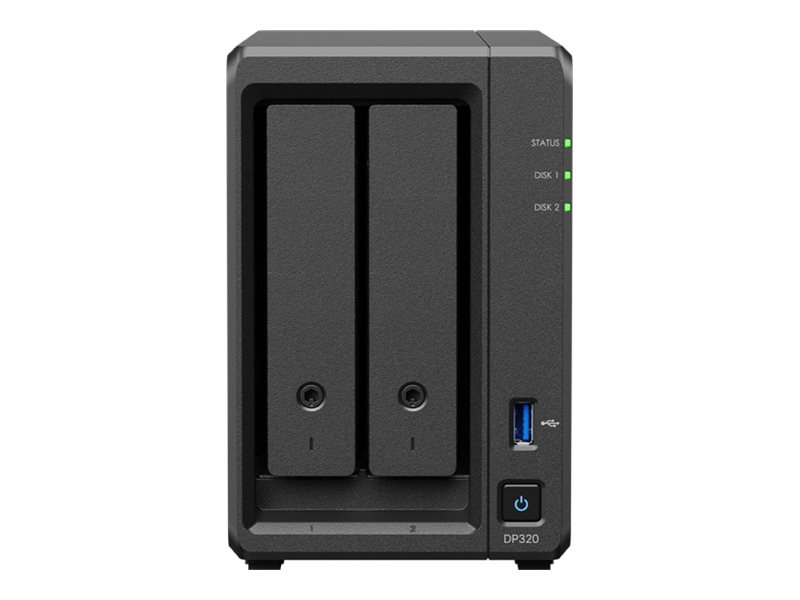

| Product Description | Synology ActiveProtect Appliance DP320 - NAS server - 16 TB |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Total Storage Capacity | 16 TB |
| Dimensions (WxDxH) | 4.2 in x 8.8 in x 6.5 in |
| Weight | 6.39 lbs () |
| Processor | AMD R1600 2.6 GHz (2-core) |
| Storage Controller | RAID RAID 1 |
| Hard Drive | 2 x 8 TB |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE |
| Performance | Maximum managed servers: 2500 |
| RAM | 8 GB |
| System Requirements | Synology ActiveProtect Manager |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Total Storage Capacity | 16 TB |
| Width | 4.2 in |
| Depth | 8.8 in |
| Height | 6.5 in |
| Weight | 6.39 lbs () |
| Built-in Devices | System fan |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 0 (free) - 3.5" |
| Interfaces | 1 x Ethernet 1000Base-T (management) - RJ-45 ¦ 1 x Ethernet 1000Base-T - RJ-45 ¦ 1 x USB 3.2 Gen 1 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x RJ-45 cable |
| Features | Reset button |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC, UKCA, BSMI, RCM, NCC, VCCI, KC, RoHS |
| Included Accessories | Power cable, accessory pack |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Remote Management Protocol | LDAP |
| Performance | Maximum managed servers: 2500 |
| Features | LED status indicators, Virtual Machine protection, SaaS protection, backup server, Physical-to-Virtual (P2V) recovery, virtual-to-virtual (V2V) recovery, file level security, ransomware protection, policy based access control, self-healing network, B-tree file system (Btrfs), backup/restore, WORM (Write Once Read Many protection), Single Sign-On (SSO) support, multi-factor authentication (MFA), scalable clustering |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Required | Synology ActiveProtect Manager |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 8 - 80% RH |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 1 |
| Hard Drive | |
| Type | HDD - 3.5" |
| Capacity | 2 x 8 TB |
| Processor / Memory | |
| Processors Installed | AMD R1600 2.6 GHz |
| Number of Cores | 2-core |
| RAM | 8 GB |
