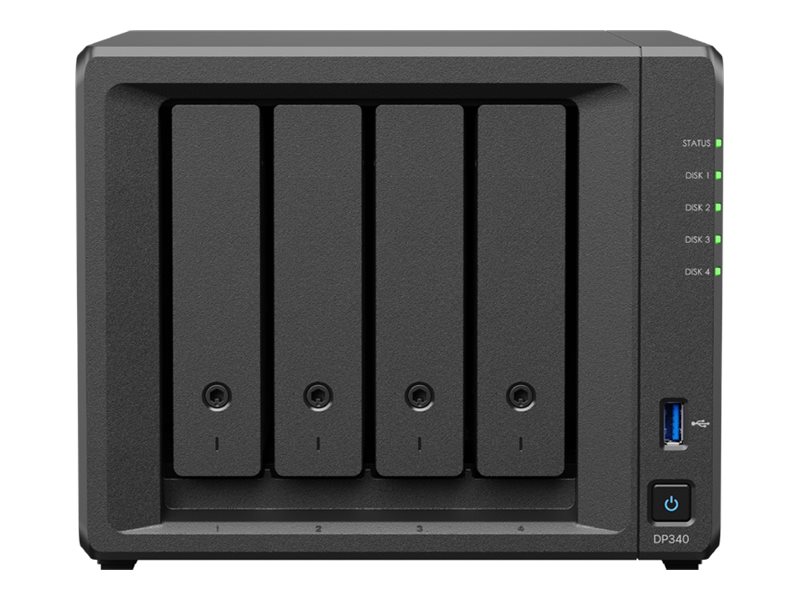

Server - DT 1-way - 1 x Ryzen Embedded R1600 / up to 3.1 GHz - RAM 16 GB - SATA - hot-swap 3.5" bay(s) - HDD 4 x 8 TB - 10 Gigabit Ethernet, Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Synology DP340 - DT Ryzen Embedded R1600 2.6 GHz - 16 GB - HDD 4 x 8 TB |
| Type | Server - DT |
| Server Scalability | 1-way |
| Processor | 1 x AMD Ryzen Embedded R1600 / 2.6 GHz (up to 3.1 GHz, (Dual-Core) |
| Cache Memory | 4 MB L3 cache |
| Cache Per Processor | 4 MB |
| RAM | 16 GB DDR4 SDRAM |
| Storage Controller | RAID |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | 4 x HDD 8 TB (hot-swap) - SATA |
| Optical Storage | No optical drive |
| Networking | 10GbE, 1GbE |
| Power | (50/60 Hz) |
| Dimensions (WxDxH) | 7.8 in x 8.8 in x 6.5 in |
| Weight | 11.46 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Product Form Factor | DT |
| Built-in Devices | Status LED |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 0 (free) x hot-swap 3.5" |
| Interfaces | 1 x USB 3.2 Gen 1 - Type A (1 front) ¦ 1 x management (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x 10 Gigabit Ethernet - RJ-45 (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FCC, UKCA, BSMI, RCM, NCC, VCCI, KC |
| RAM | |
| Installed Size | 16 GB |
| Technology | DDR4 SDRAM |
| Networking | |
| Ethernet Ports | 1 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet, Ethernet, Fast Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 8 - 80% RH |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 5, RAID 1 |
| Cache Memory | |
| Installed Size | L3 cache - 4 MB |
| Cache Per Processor | 4 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 4 x 8 TB |
| Interface Type | SATA |
| Dimensions & Weight | |
| Width | 7.8 in |
| Depth | 8.8 in |
| Height | 6.5 in |
| Weight | 11.46 lbs |
| Processor / Chipset | |
| CPU | AMD Ryzen Embedded R1600 |
| Clock Speed | 2.6 GHz |
| Max Turbo Speed | 3.1 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 1 MB |
