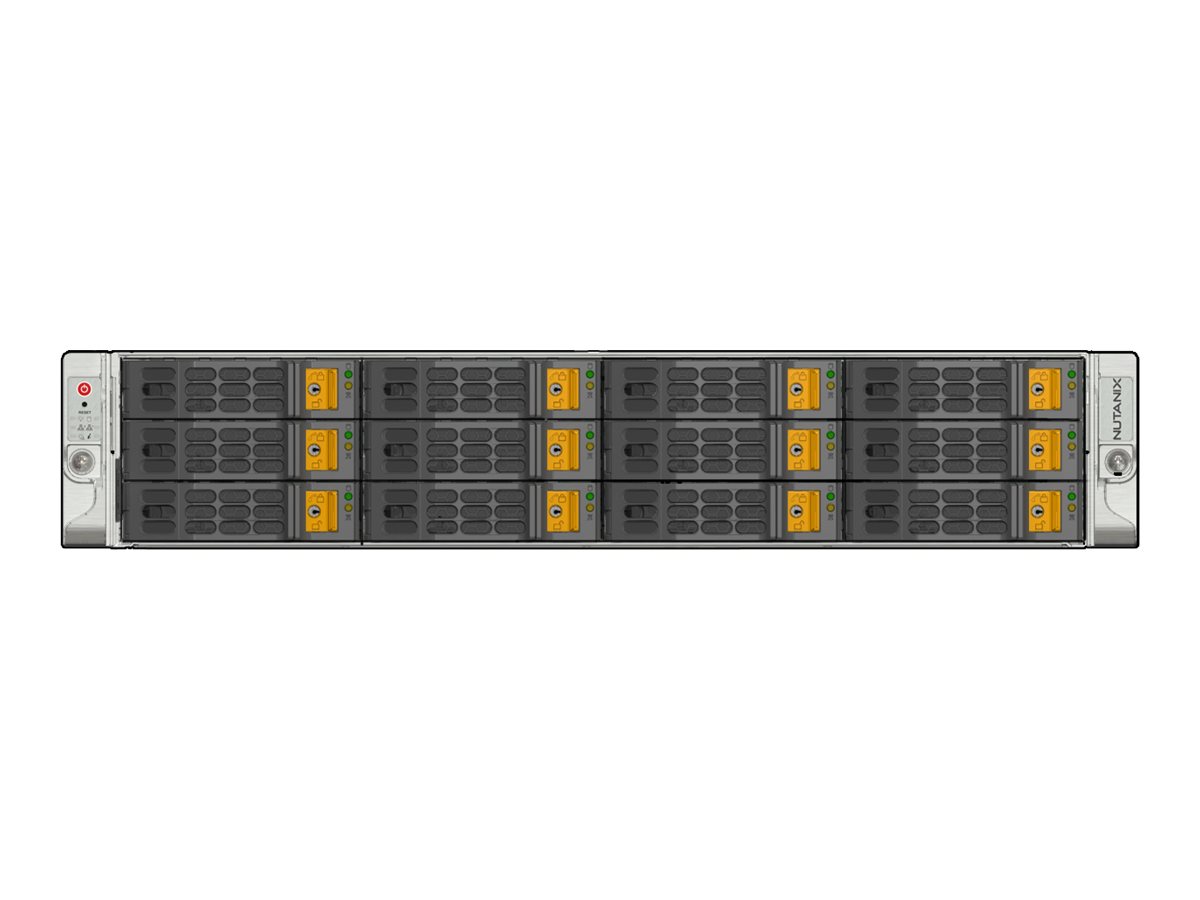

Application accelerator - 10GbE - 2U - 1 node - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Nutanix Xtreme Computing Platform NX-8155-G9 - application accelerator |
| Device Type | Application accelerator |
| Form Factor | Rack-mountable - 2U |
| Processor | 2 x Intel Xeon Gold 6426Y - 2.5 GHz |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Pricing Type | 1 node |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 17.5 in x 31.5 in x 3.5 in |
| Weight | 60.19 lbs |
| General | |
| Device Type | Application accelerator |
| Height (Rack Units) | 2U |
| Built-in Devices | 2 x 512 GB M.2 boot drives, 4 x 80 mm fans |
| Width | 17.5 in |
| Depth | 31.5 in |
| Height | 3.5 in |
| Weight | 60.19 lbs |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 3.5" |
| Interfaces | 2 x 10GBase-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 2 x 10Gb Ethernet - RJ-45/SFP+ ¦ 1 x VGA |
| Miscellaneous | |
| Compliant Standards | BIS, BSMI, CSA, CSA-US, EAC, FCC, ICES, KCC, RCM, REACH, RoHS, S Mark, SABS, SII, UkrSEPRO, UL, VCCI-A, WEEE, cUL |
| Pricing Type | 1 node |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Status Indicators | Power, drive, network, status, activity, link, information |
| Features | 16-core CPU, reset button |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Power Provided | 2000 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 2 x Intel Xeon Gold 6426Y 2.5 GHz |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
