Network panoramic camera - turret - outdoor - vandal / weatherproof - color (Day&Night) - 8 MP - 3840 x 2160 - 4K - M12 mount - fixed iris - fixed focal - audio - Ethernet 10Base-T/100Base-T - H.264, H.265 - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | Amcrest IP8M-2496EW-AI-V3 - network panoramic camera - turret |
| Device Type | Network panoramic camera - fixed - turret - outdoor - vandal / weatherproof |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 2.9 in x 6.5 in x 2.8 in |
| Weight | 16.33 oz |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 4K |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.7" - 8 MP |
| Minimum Illumination | 0.0009 lux - B&W - F2.0 - 30 IRE |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Mounting | M12 mount |
| Lens Iris | F/2.0 - fixed iris |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-T |
| Voltage | DC 12 V / PoE |
| Features | 0 - 360° rotation range, DORI coverage, human detection, intrusion detection, tripwire detection, Vehicle Detection, Smart Codec, Constant Bitrate (CBR), Variable Bitrate (VBR), 120 dB wide dynamic range, 3D digital noise reduction (DNR), 4 motion detection zones, auto gain control, auto ICR, auto white balance, Backlight Compensation (BLC), Highlight Compensation (HLC), manual gain control, manual white balance, mirror, natural white balance, privacy masking (up to 4 areas), up to 20 users, metal housing |
| Manufacturer Warranty | 1-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F; ? 95% relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | AAC, G.711a, G.711u, G.726, PCM |
| Form Factor | Turret |
| Connectivity Technology | Wired |
| Width | 2.9 in |
| Depth | 6.5 in |
| Height | 2.8 in |
| Weight | 16.33 oz |
| Expansion / Connectivity | |

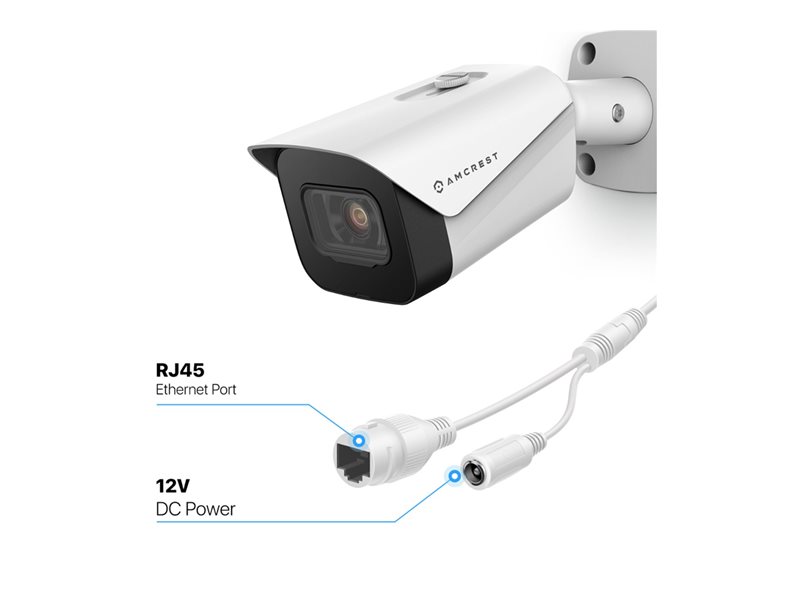

| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

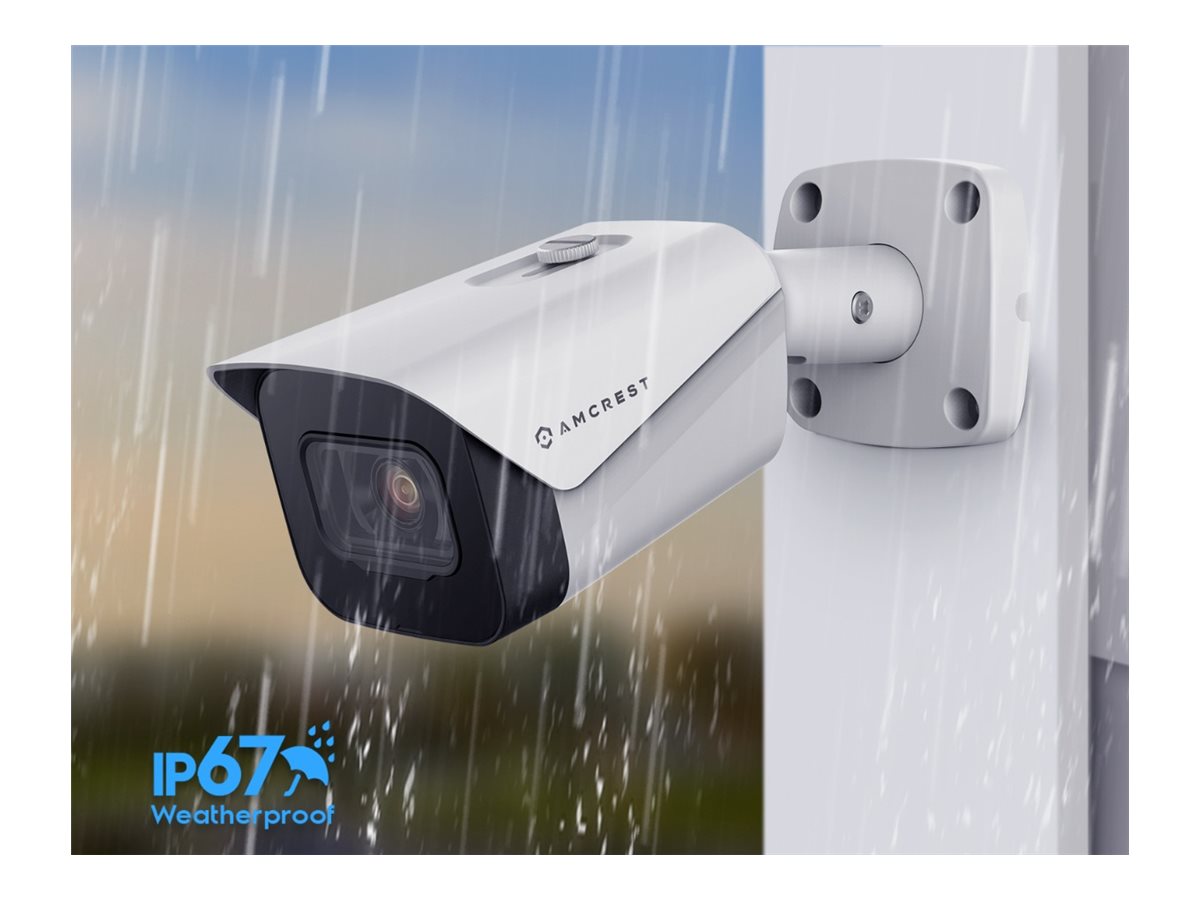

| Compliant Standards | IP67, IK10, IEEE 802.3at |
| Color | White |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Software / System Requirements | |
| Software Included | Amcrest Surveillance Pro, Amcrest Blue Iris, Amcrest Cloud, Amcrest View Pro |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | ? 95% |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Minimum Illumination | 0.0009 lux - B&W - F2.0 - 30 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 3840 x 2160, 3072 x 2048, 3072 x 1728, 2880 x 1620, 2688 x 1520, 2048 x 1536, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 704 x 480, 352 x 288, 352 x 240 |
| Frame Rate (max) | 30 frames per second |
| RAM | 256 MB |
| Flash Memory | 128 MB |
| Features | 0 - 360° rotation range, DORI coverage, human detection, intrusion detection, tripwire detection, Vehicle Detection, Smart Codec, Constant Bitrate (CBR), Variable Bitrate (VBR), 120 dB wide dynamic range, 3D digital noise reduction (DNR), 4 motion detection zones, auto gain control, auto ICR, auto white balance, Backlight Compensation (BLC), Highlight Compensation (HLC), manual gain control, manual white balance, mirror, natural white balance, privacy masking (up to 4 areas), up to 20 users, metal housing |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 fixed iris |
| Horizontal Field of View (degree) | 106 |
| Vertical Field of View (degree) | 56 |
| Diagonal Field of View (degree) | 125 |
| Image Sensor | |
| Type | 8 MP Progressive Scan CMOS 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTMP, SFTP, FTP, DHCP, DDNS, DNS, UPnP, NTP, P2P |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
