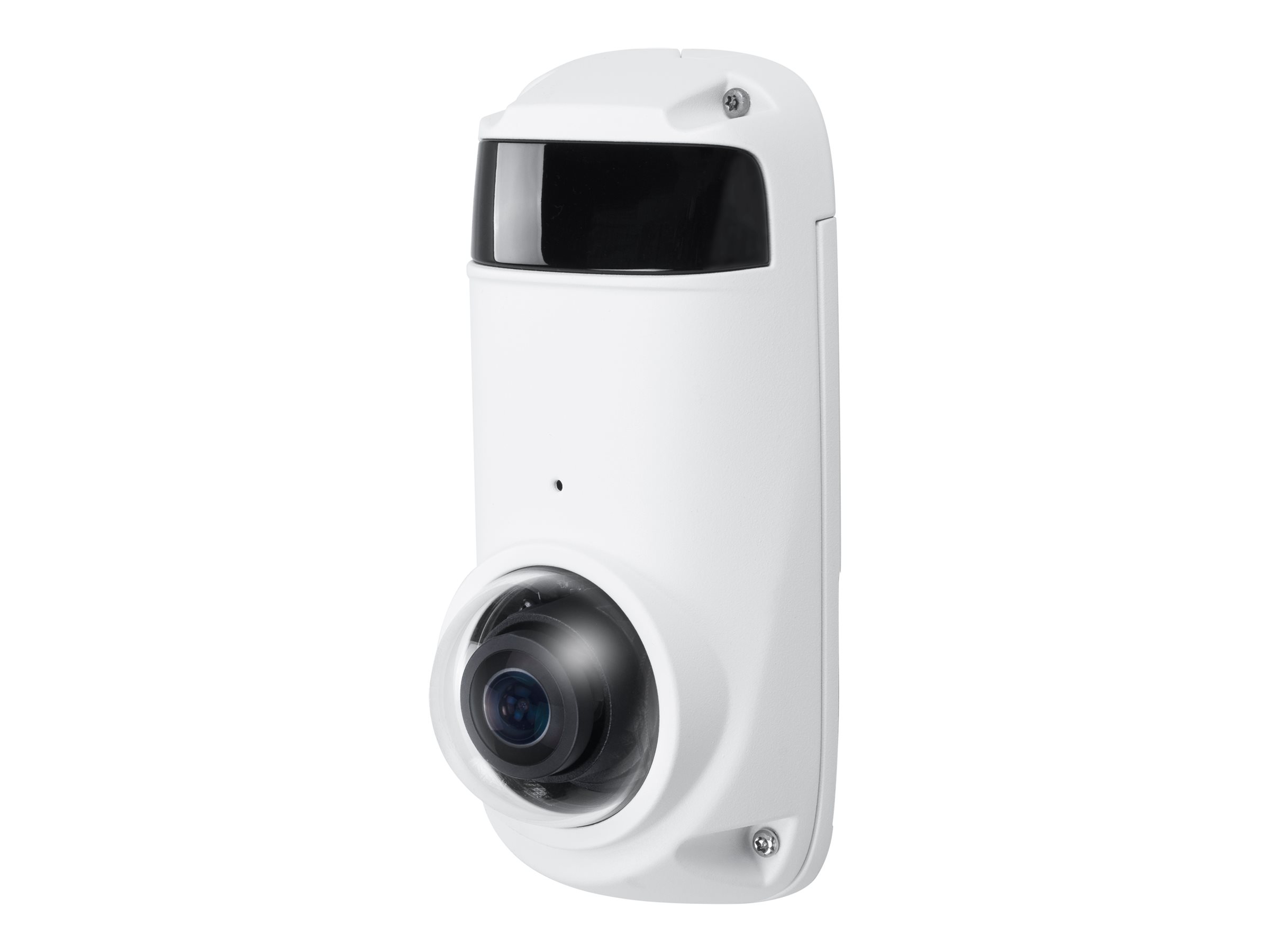

Network panoramic camera - dome - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed iris - fixed focal - audio - LAN 10/100 - PoE Class 0 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Vivotek - network panoramic camera - dome - TAA Compliant |
| Device Type | Network panoramic camera - fixed - dome - vandal / weatherproof |
| Audio | Yes: one-way audio capability, built-in microphone |
| Dimensions (WxDxH) | 6.3 in x 2.8 in x 2.4 in |
| Weight | 17.35 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2560 x 1920 |
| Frame Rate (max) | 15 frames per second |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.08 lux - color - F2.7 ¦ 0.005 lux - B&W - F2.7 ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 1.47 mm |
| Lens Iris | F/2.7 - fixed iris |
| Tilting Range (degree) | -20 to +20 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 0 |
| Features | Wide Dynamic Range (WDR) Pro, IR-cut filter, secure boot, signed firmware, video encryption, HTTPs encryption, TLS encryption protocol, Audio Detection, Tampering detection, intrusion detection, Line Crossing Detection, loitering detection, attribute search |
| TAA Compliant | Yes |
| Manufacturer Warranty | 10-year warranty |
| Environmental Parameters (operating) | -22 °F - 140 °F; 98% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Audio Support | Yes: one-way audio capability, built-in microphone |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.3 in |
| Depth | 2.8 in |
| Height | 2.4 in |
| Weight | 17.35 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | IP66, IK10, FCC, UL, NDAA, EN 55032 Class A, EN 55035, UKCA, BS EN 55032:2015 + A11:2020, BS EN 55035:2017+A11:2020, BS EN 55035:2017 + A11:2020, FCC Part 15 Subpart B, RCM, AS/NZS CISPR 32 Class A, VCCI, CISPR 32 Class A, ICES-003 issue 7, UL 62368-1, IEC/EN 62368-1, IEC/EN 62471, CNS 15936, CNS 15598-1 |
| Power | |
| Power Requirements | PoE Class 0 |
| Power Device | 10.26 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Max Digital Video Resolution | 2560 x 1920 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.08 lux - color - F2.7 ¦ 0.005 lux - B&W - F2.7 ¦ 0 lux - IR |
| Infrared Distance | 66 ft |
| Digital Video Capture Resolution | 2560 x 1920, 1280 x 960 |
| Frame Rate (max) | 15 frames per second |
| Flash Memory | 256 MB |
| Features | Wide Dynamic Range (WDR) Pro, IR-cut filter, secure boot, signed firmware, video encryption, HTTPs encryption, TLS encryption protocol, Audio Detection, Tampering detection, intrusion detection, Line Crossing Detection, loitering detection, attribute search |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 1.47 mm |
| Lens Iris | F/2.7 fixed iris |
| Horizontal Field of View (degree) | 180 |
| Vertical Field of View (degree) | 120 |
| Diagonal Field of View (degree) | 180 |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP, RTP, RTCP, SSL, TCP/IP, TLS, UDP |
| Tilting | |
| Range (degree) | -20 to +20 |
