Network panoramic camera - multi-sensor - dome - outdoor - vandal / weatherproof - color (Day&Night) - 2 x 5 MP - 3840 x 2160 - 4K - motorized - audio - GbE - MJPEG, H.264, H.265 - PoE Class 4
| Main Specifications | |
|---|---|

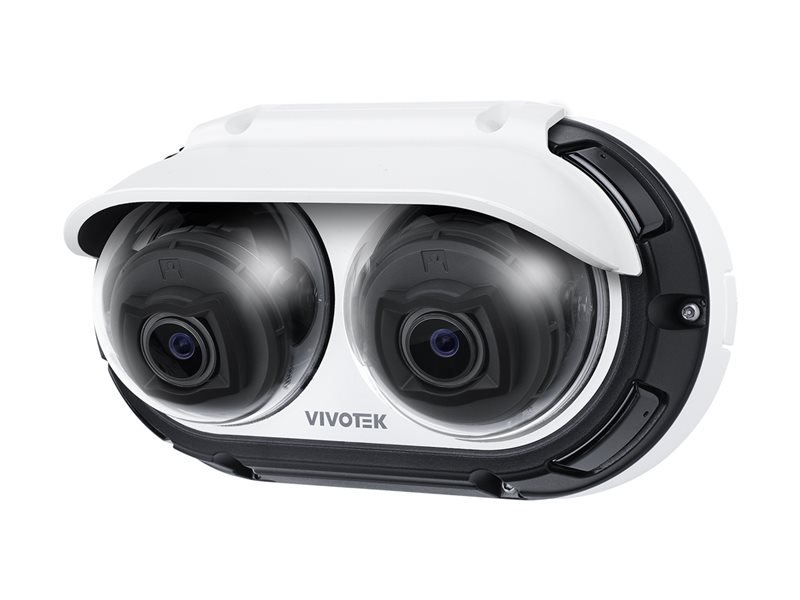

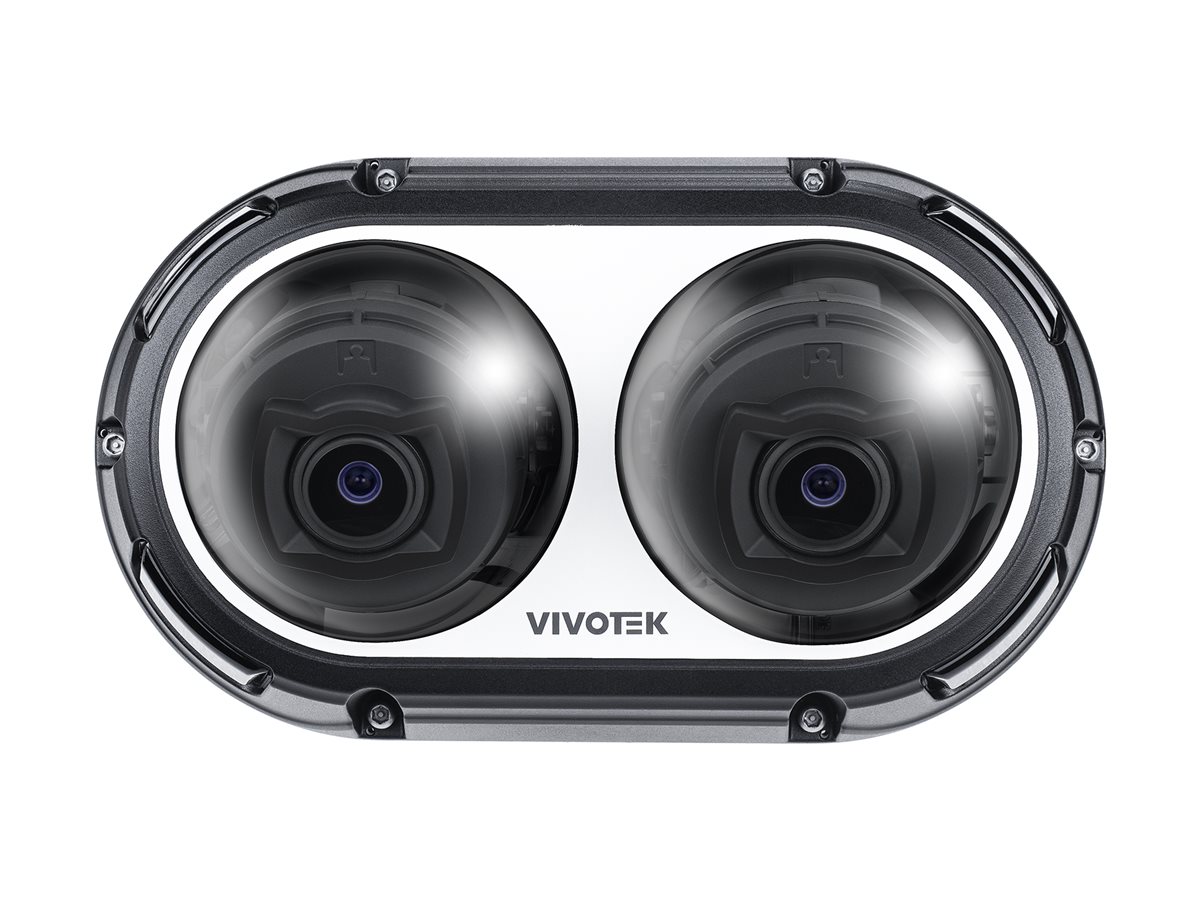

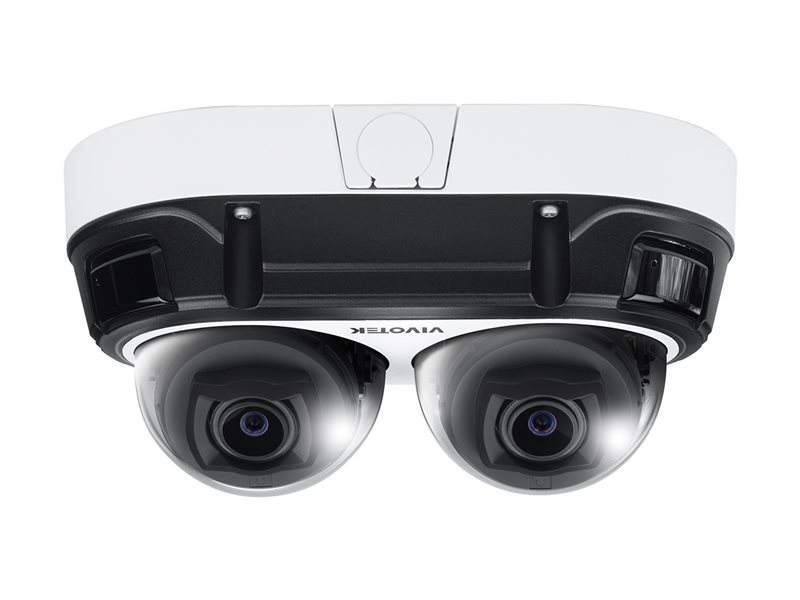

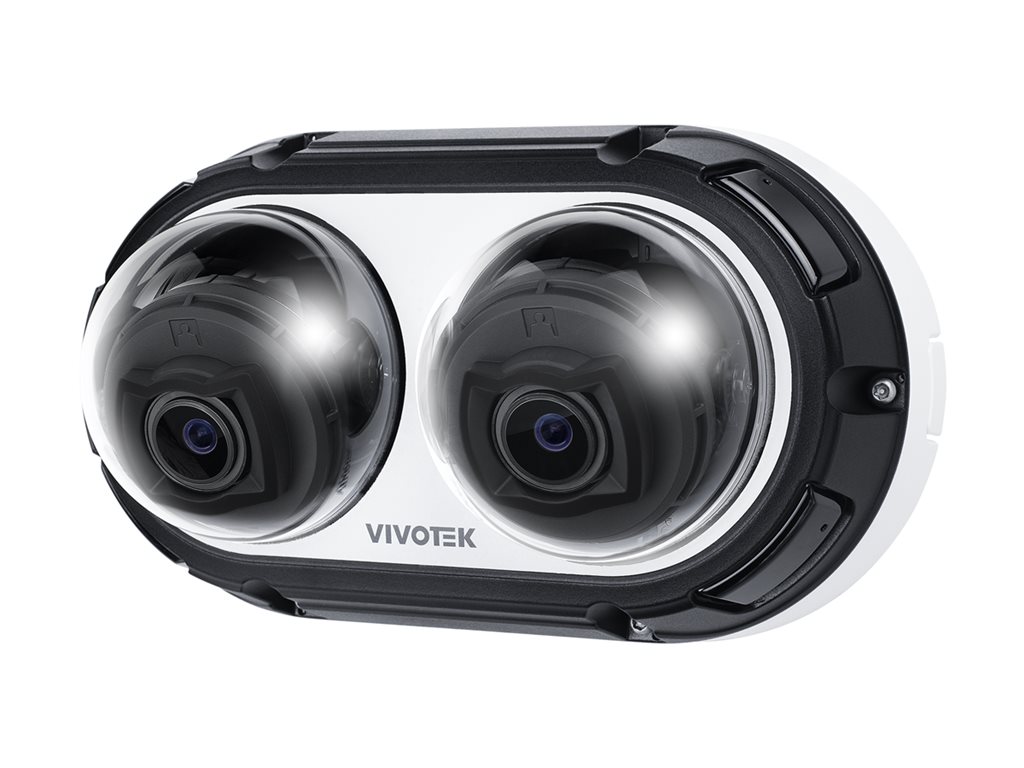

| Product Description | Vivotek V Series MA9312-EHTV - network panoramic camera - dome |
| Device Type | Network panoramic camera - multi-sensor - dome - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability, built-in microphone |
| Dimensions (WxDxH) | 9.1 in x 5.3 in x 4.4 in |
| Weight | 3.42 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2.3 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 4K |
| Optical Sensor Type | Progressive Scan CMOS - 1/1.8" - 2 x 5 MP |
| Minimum Illumination | 0.02 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.3 mm - 9.8 mm |
| Focus Adjustment | Motorized, remote |
| Lens Iris | F/1.6-2.6 (P-Iris) |
| Panning Range (degree) | 350 |
| Tilting Range (degree) | 80 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | PoE Class 4 |
| Features | Time stamp overlay, mirror lock, rotation mode, anti-overexposure, Smart VCA, white balance, brightness control, contrast control, saturation control, sharpening, gamma control, Defog, 3D digital noise reduction (DNR), scene modes, deblur, Backlight Compensation (BLC), Highlight Compensation (HLC), exposure control, Gain Control, IRIS Priority mode, AE speed adjustment, Wide Dynamic Range (WDR), Privacy Mask Function, Pixel Calculator, secure boot, digest authentication, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, People Detection, Vehicle Detection, gender recognition, clothes color detection, motor vehicle detection, non-motor vehicle detection, deep learning function, Smart Motion Detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection, Parking Detection, Smart IR III, ePTZ |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -40 °F - 131 °F; 98% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | G.726, G.711, MPEG 2 Audio, AAC-LC |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 9.1 in |
| Depth | 5.3 in |
| Height | 4.4 in |
| Weight | 3.42 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Alignment sticker, screw pack, L-shaped wrench, sunshield |
| Compliant Standards | EN 55032, EN 55035 Class A, UKCA, BS EN 55032:2015+A11:2020 Class A, BS EN 55035:2017 + A11:2020, FCC Part 15 Subpart B, RCM, AS/NZS CISPR32 Class A, VCCI-CISPR 32 Class A, ICES-003 issue 7, UL 62368-1, IEC/EN 62368-1, IEC/EN 62471, NEMA 250 Type 4X, IK10, IP66, IP67, IS 13252, CNS 15936, CNS 15598-1 |
| Power | |
| Power Requirements | PoE Class 4 |
| Power Device | 25.5 Watt |
| Software / System Requirements | |
| Software Included | Trend Micro IoT Security (3 years trial) |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - multi-sensor - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Digital Zoom | 48 |
| Exposure Range | 1/30 sec - 1/32000 sec |
| Minimum Illumination | 0.02 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR |
| Infrared LEDs | 4 |
| Infrared Distance | 66 ft |
| Digital Video Capture Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Features | Time stamp overlay, mirror lock, rotation mode, anti-overexposure, Smart VCA, white balance, brightness control, contrast control, saturation control, sharpening, gamma control, Defog, 3D digital noise reduction (DNR), scene modes, deblur, Backlight Compensation (BLC), Highlight Compensation (HLC), exposure control, Gain Control, IRIS Priority mode, AE speed adjustment, Wide Dynamic Range (WDR), Privacy Mask Function, Pixel Calculator, secure boot, digest authentication, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, People Detection, Vehicle Detection, gender recognition, clothes color detection, motor vehicle detection, non-motor vehicle detection, deep learning function, Smart Motion Detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection, Parking Detection, Smart IR III, ePTZ |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 2.3 x |
| Focal Length | 4.3 mm - 9.8 mm |
| Lens Iris | F/1.6-2.6 (P-Iris) |
| Focus Adjustment | Motorized, remote |
| Horizontal Field of View (degree) | 45.1 - 110.4 |
| Vertical Field of View (degree) | 25.4 - 57.9 |
| Diagonal Field of View (degree) | 51.8 - 133.9 |
| Image Sensor | |
| Type | 2 x 5 MP Progressive Scan CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Panning | |
| Range (degree) | 350 |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Windows, MacOS |
| Tilting | |
| Range (degree) | 80 |
