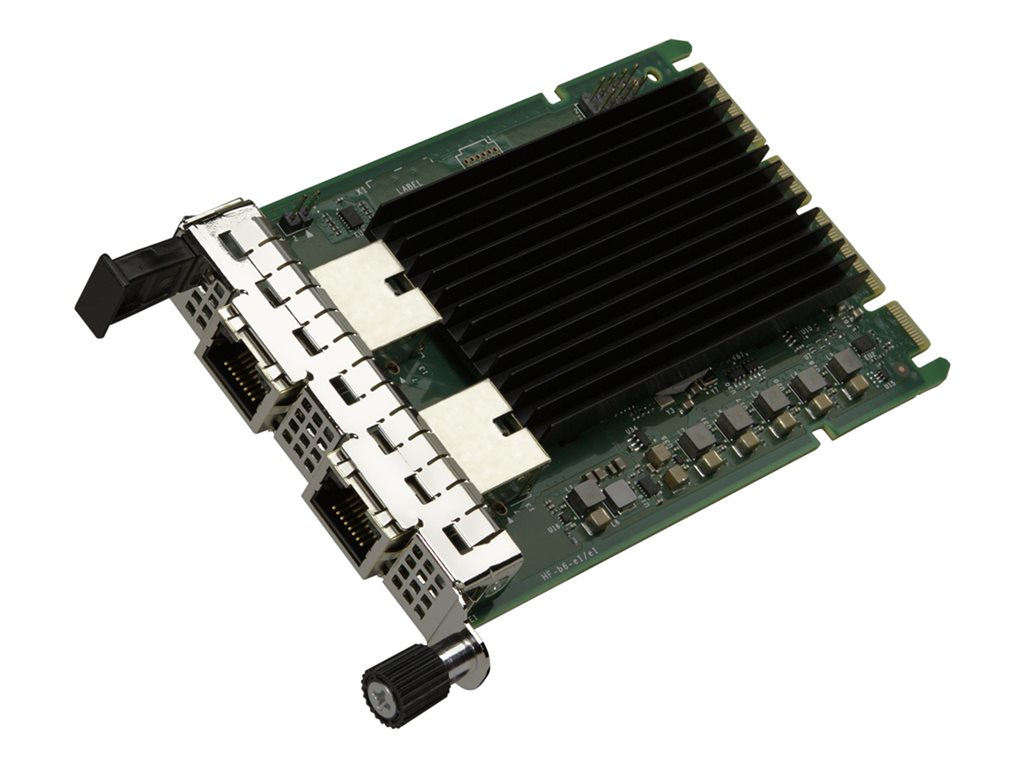

Network adapter - OCP - 10Gb Ethernet x 2 - for P/N: 00WE131, 00WE135, 00WE139, 4X97A83980, 4X97A83981, 4X97A83982, 4X97A83983, 4X97A83984
| Main Specifications | |
|---|---|
| Product Description | Intel E610-T2 - network adapter - OCP - 10Gb Ethernet x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) |
| PCI Specification Revision | PCIe 4.0 |
| Ports | 10Gb Ethernet x 2 |
| Dimensions (WxDxH) | 4.5 in x 3 in |
| Cabling Type | Ethernet 10GBase-T, Ethernet 1000Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, Ethernet 100Base-TX |
| Data Link Protocol | 10GbE, 2.5GbE, 1GbE |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | RBT, MCTP, iSCSI |
| Processor | Intel E610-XT2 |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: 00WE123, 00WE127, 00WE131, 00WE135, 00WE139, 4X97A83980, 4X97A83981, 4X97A83982, 4X97A83983, 4X97A83984 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBase-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Encryption Algorithm | FIPS 140-3 Level 1 |
| Compliant Standards | UL 62368-1, CAN/CSA C22.2 No. 62368-1-14, cULus, VCCI, BSMI, RCM, KCC, EEE |
| Networking | |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-T, Ethernet 1000Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, Ethernet 100Base-TX |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | RBT, MCTP, iSCSI |
| Features | SPDM, auto-negotiation, GENEVE support, RoT, NVGRE, VxLAN tunneling |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Processor / Memory | |
| Processor | Intel E610-XT2 |
| Dimensions & Weight | |
| Depth | 4.5 in |
| Height | 3 in |
| Compatibility Information | |
| Designed For | P/N: 00WE123, 00WE127, 00WE131, 00WE135, 00WE139, 4X97A83980, 4X97A83981, 4X97A83982, 4X97A83983, 4X97A83984 |
