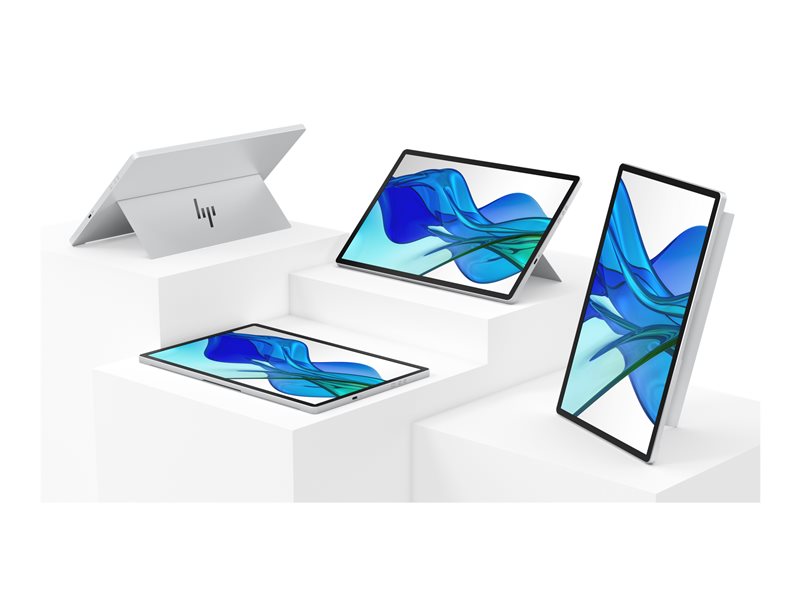

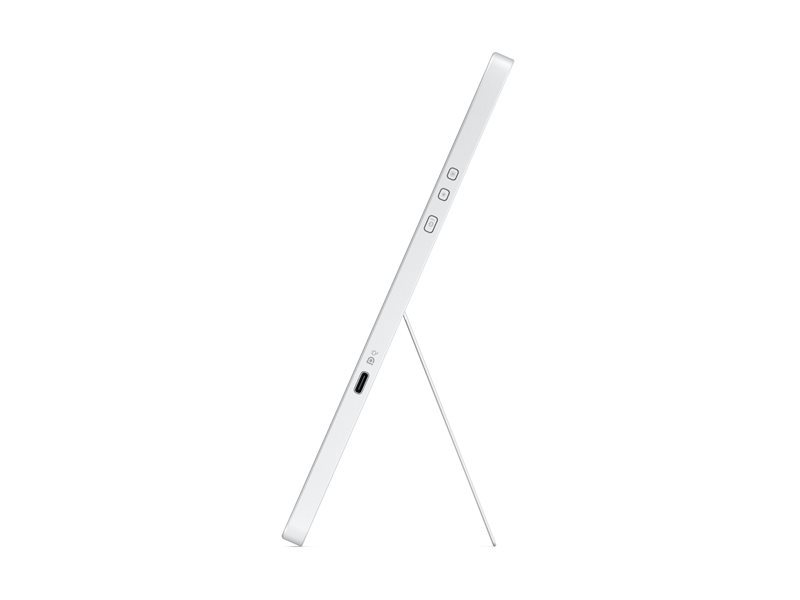

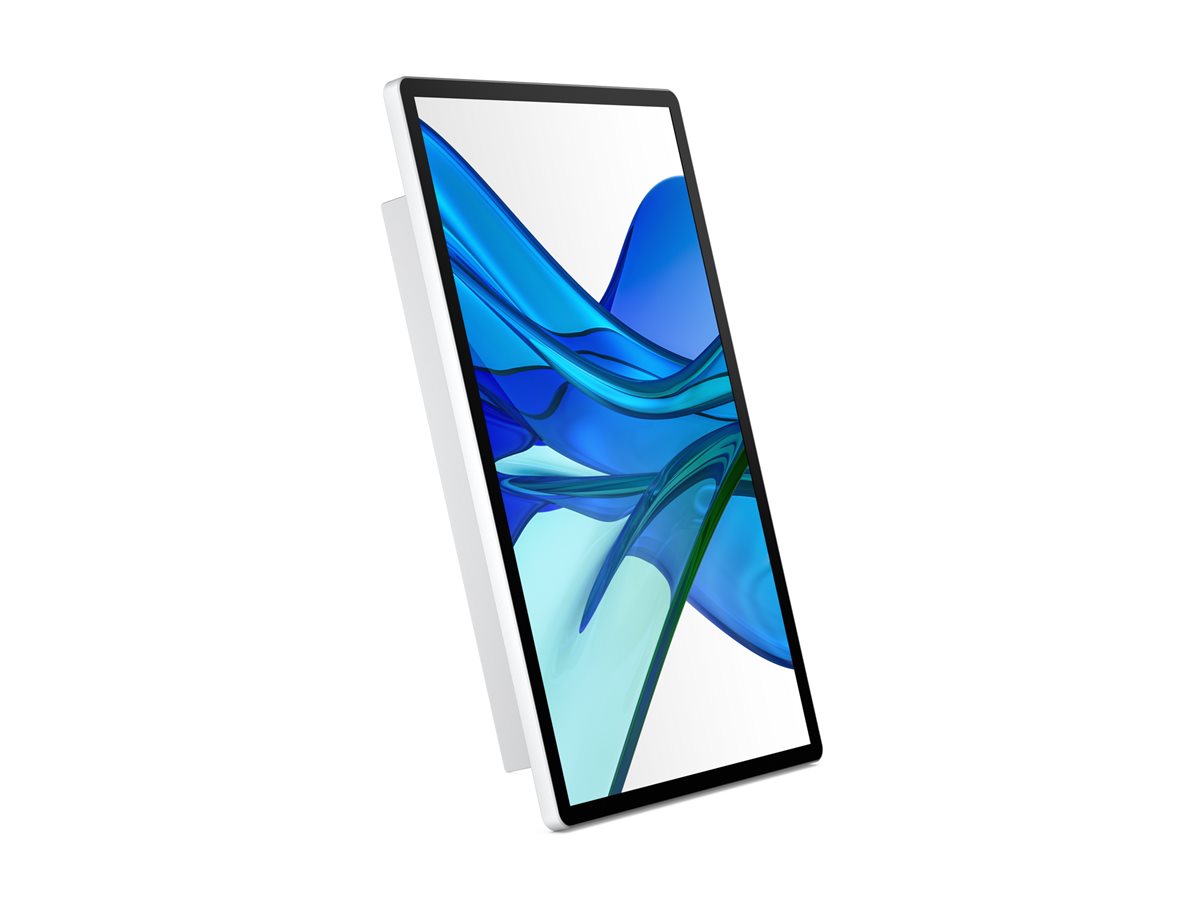

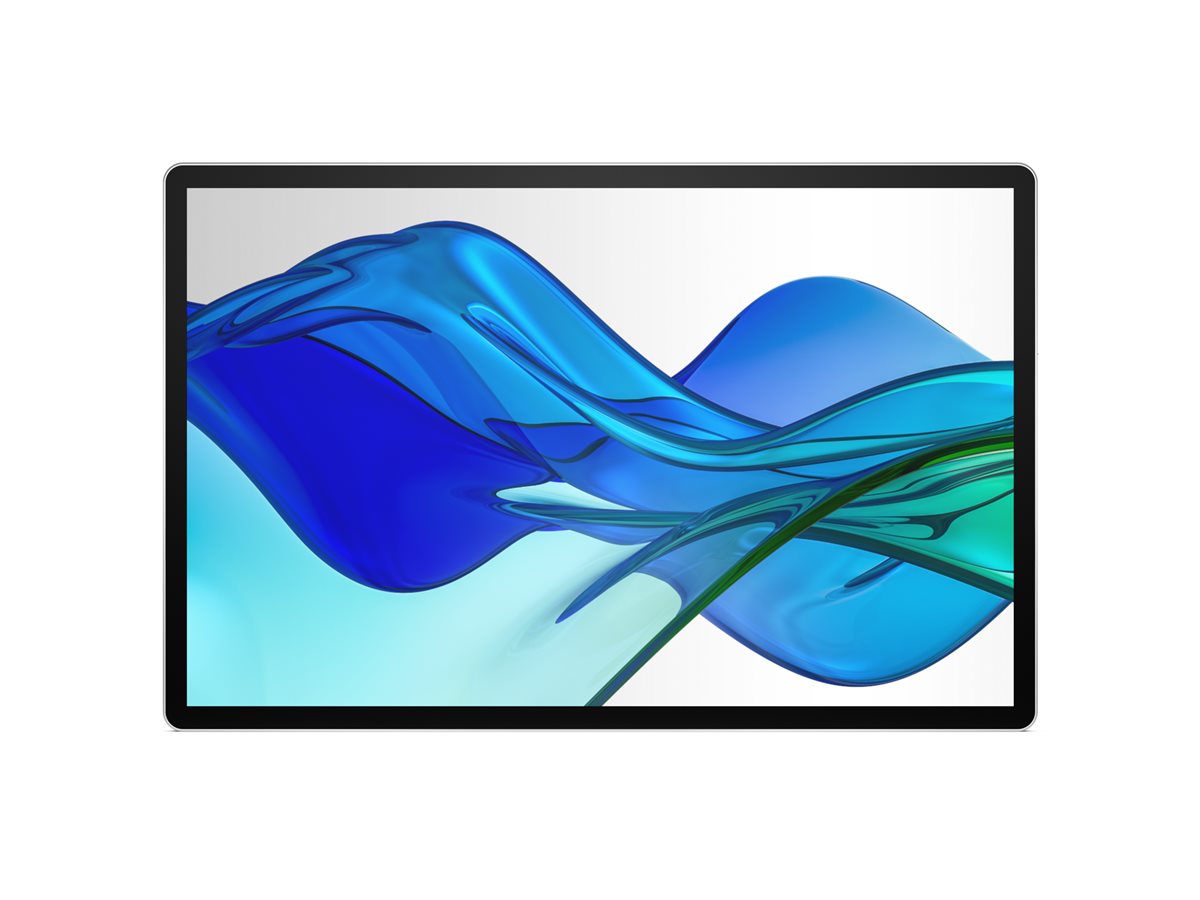

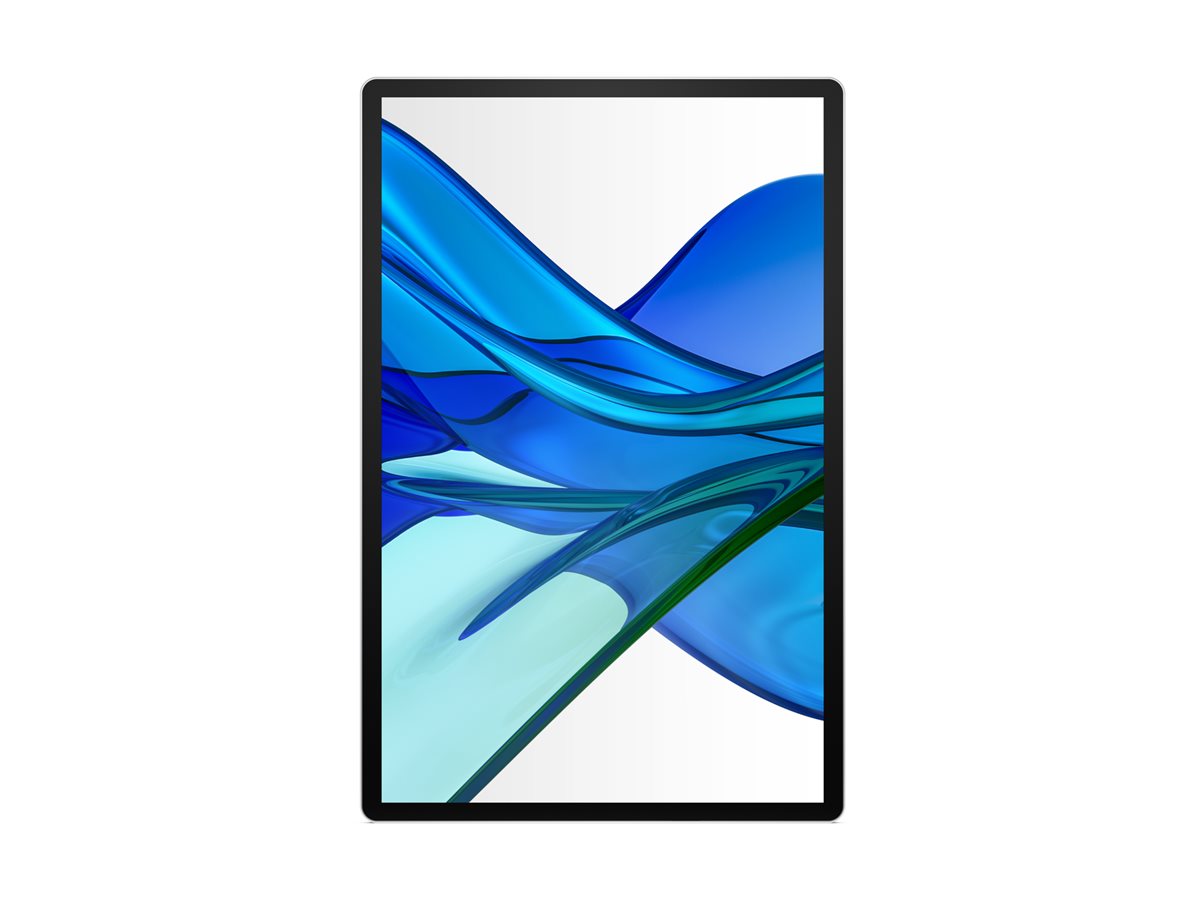

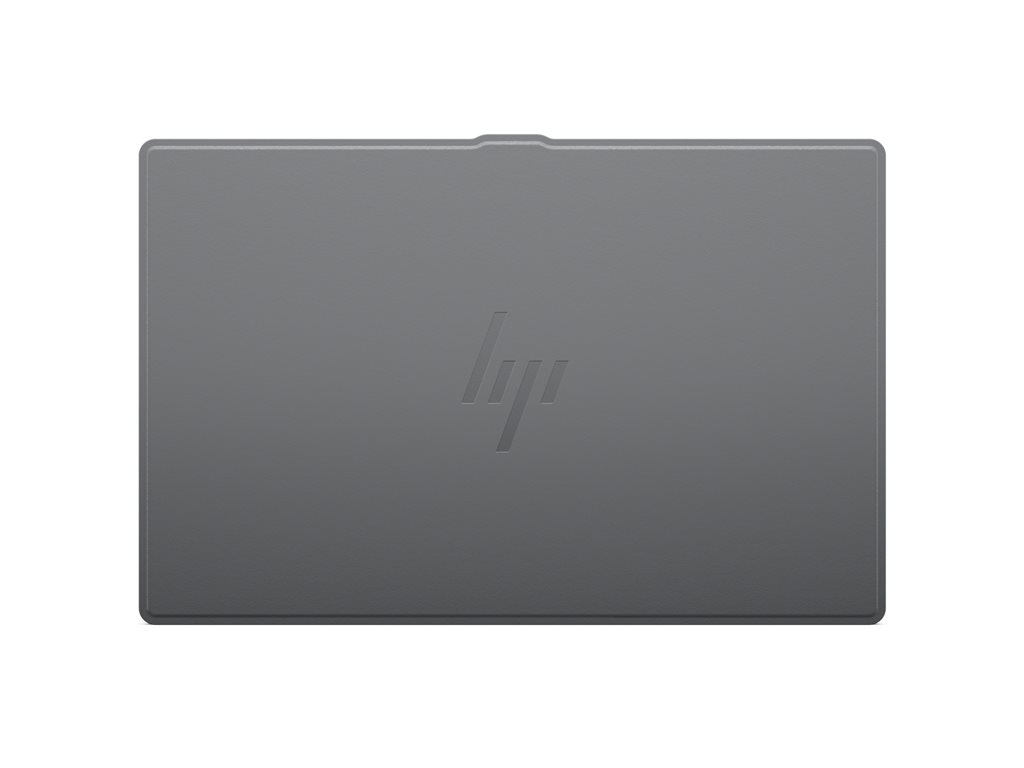

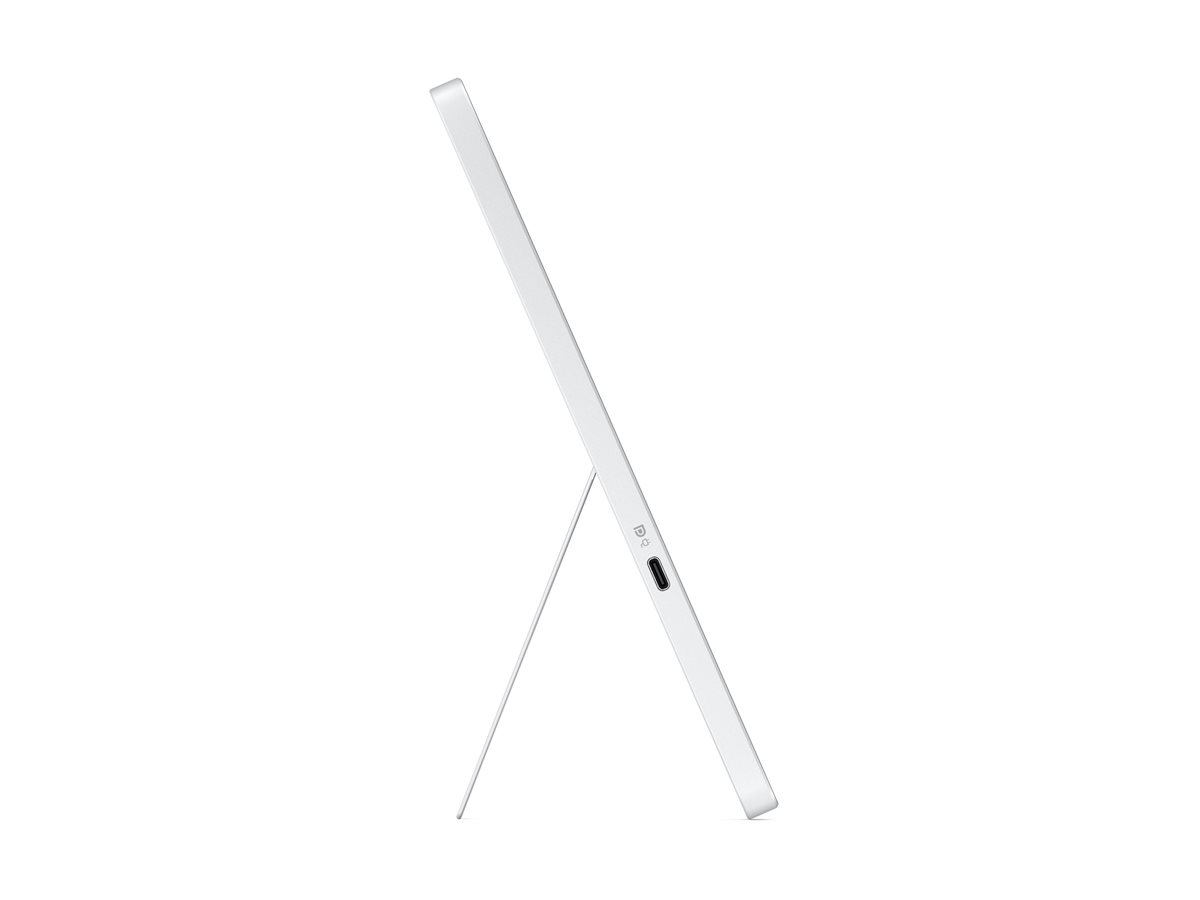

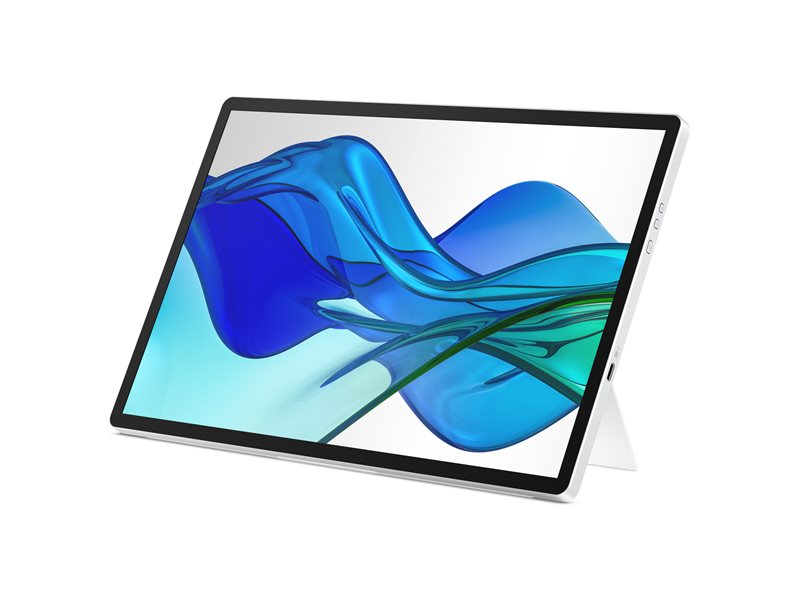

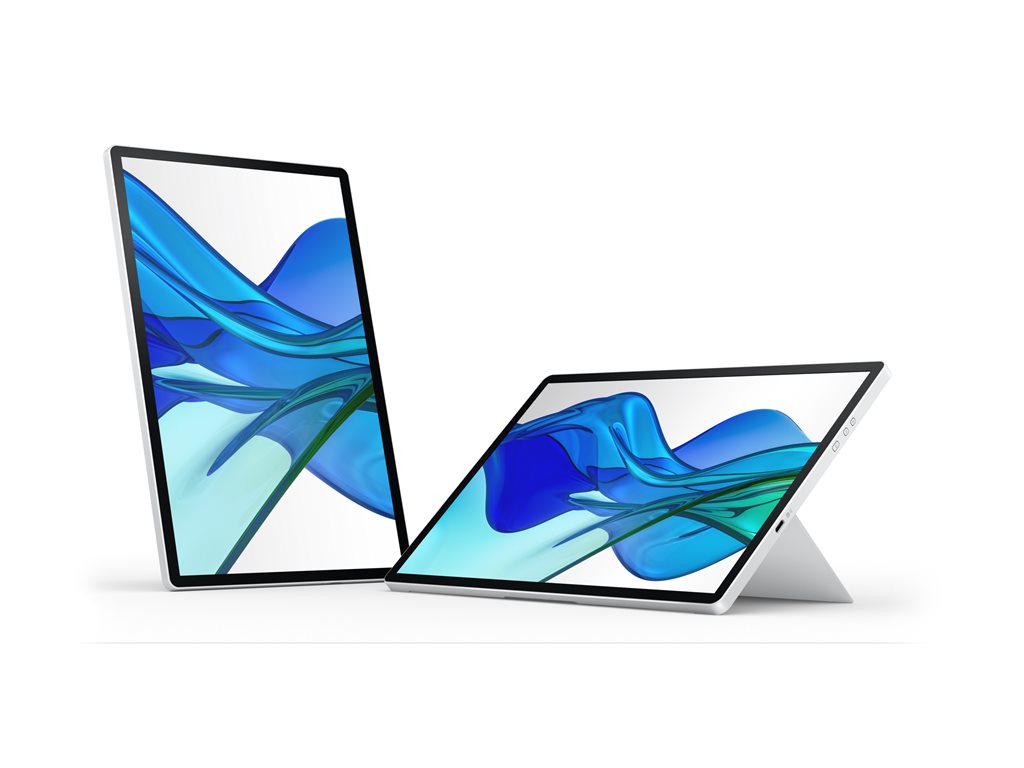

Series 5 Pro - LED monitor - 14" - portable - 2560 x 1600 @ 75 Hz - IPS - 400 cd/m² - 2000:1 - 7 ms - USB-C - black
| Main Specifications | |
|---|---|
| Product Description | HP 514pn - Series 5 Pro - LED monitor - 14" |
| Device Type | LED-backlit LCD monitor - 14" |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2372746 |
| Energy Class | Class B |
| Panel Type | IPS |
| Aspect Ratio | 16:10 |
| Native Resolution | 2560 x 1600 at 75 Hz |
| Pixel Pitch | 0.1178 mm |
| Brightness | 400 cd/m² |
| Contrast Ratio | 2000:1 / 10000000:1 (dynamic) |
| Response Time | 7 ms (gray-to-gray with overdrive) |
| Color Support | 16.7 million colors |
| Color Gamut | 100% sRGB, 100% DCI-P3 |
| Input Connectors | USB-C |
| Display Position Adjustments | Tilt |
| Screen Coating | Anti-glare 3H hardness, Haze 25% |
| Color | Black |
| Dimensions (WxDxH) - with stand | 12.6 in x 0.3 in x 8.2 in |
| Weight | 22.22 oz |
| Localization | English / United States |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
| Compliant Standards | CSA, VCCI, BSMI, CB, CCC, PSB, FCC, ISO 9241-307, KCC, WEEE, ICES, TUV Bauart, KC, EAC, ISC, BIS, Australian-New Zealand MEPS, Vietnam MEPS, South Africa Energy Label, Ukraine NSoC, UAE RoHS, UAE ECAS |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2372746 |
| Energy Class | Class B |
| Diagonal Size | 14" |
| Panel Type | IPS |
| Aspect Ratio | 16:10 |
| Native Resolution | 2560 x 1600 at 75 Hz |
| Pixel Pitch | 0.1178 mm |
| Pixel Per Inch | 216 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 2000:1 / 10000000:1 (dynamic) |
| Color Support | 16.7 million colors |
| Color Gamut | 100% sRGB, 100% DCI-P3 |
| Response Time | 7 ms (gray-to-gray with overdrive) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 31 - 124 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Screen Coating | Anti-glare 3H hardness, Haze 25% |
| Backlight Technology | Edge-lit LED |
| Features | Flicker Free technology, 8-bit Color Depth, edge-to-edge panel, HP Eye Ease, Low Blue Light technology |
| Color | Black |
| Dimensions (WxDxH) | 12.6 in x 0.3 in x 8.2 in - with stand |
| Weight | 22.22 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately) |
| Cables Included | 1 x USB-C cable |
| Backlight Life | 15,000 hours |
| Compliant Standards | CSA, VCCI, BSMI, CB, CCC, PSB, FCC, ISO 9241-307, KCC, WEEE, ICES, TUV Bauart, KC, EAC, ISC, BIS, Australian-New Zealand MEPS, Vietnam MEPS, South Africa Energy Label, Ukraine NSoC, UAE RoHS, UAE ECAS |
| Localization | English / United States |
| Security Slot Type | Kensington security slot |
| Power | |
| Power Consumption SDR (On mode) | 6 kWh/1000h |
| Power Consumption (Typical) | 7 Watt |
| Power Consumption (Max) | 13 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Software / System Requirements | |
| Included Software | HP Client Management Script Library, HP Display Center |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 203 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Connectivity | |
| Interfaces | USB-C (HDCP) |
| Dimensions & Weight | |
| Dimensions & Weight Details | With stand - width: 12.6 in - depth: 0.3 in - height: 8.2 in - weight: 22.2 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15.7 in |
| Shipping Depth | 2.4 in |
| Shipping Height | 10.9 in |
| Shipping Weight | 2.8 lbs |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | +18.8/+46.2 |
| VESA Mounting Interface | 100 x 100 mm |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
