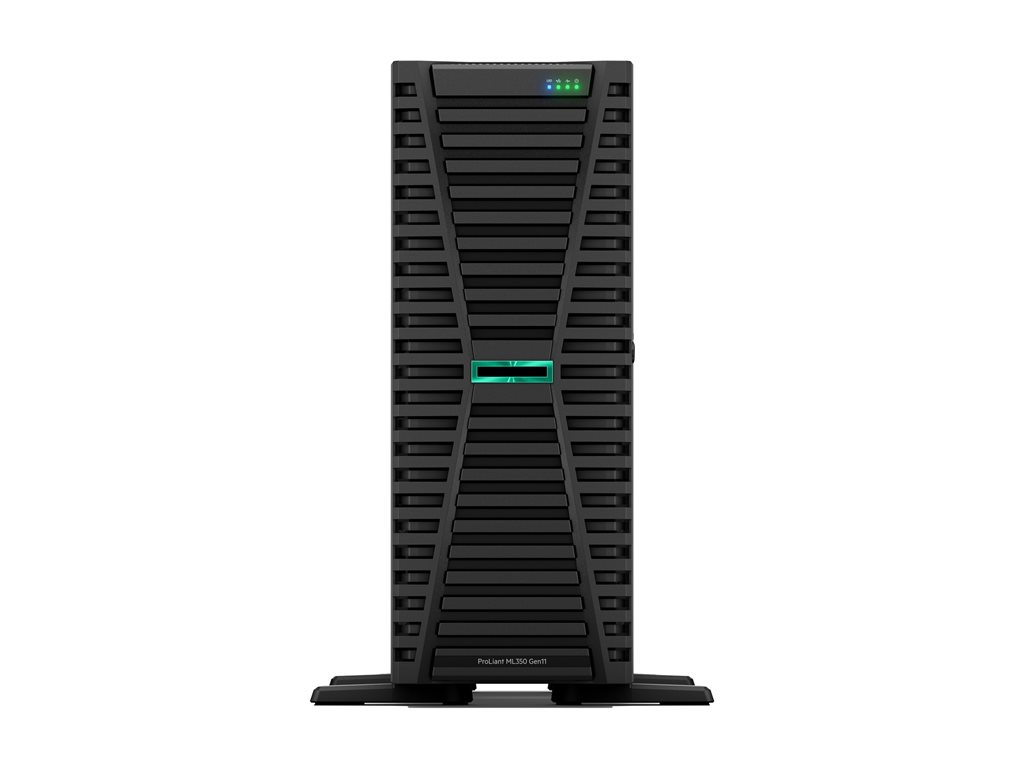

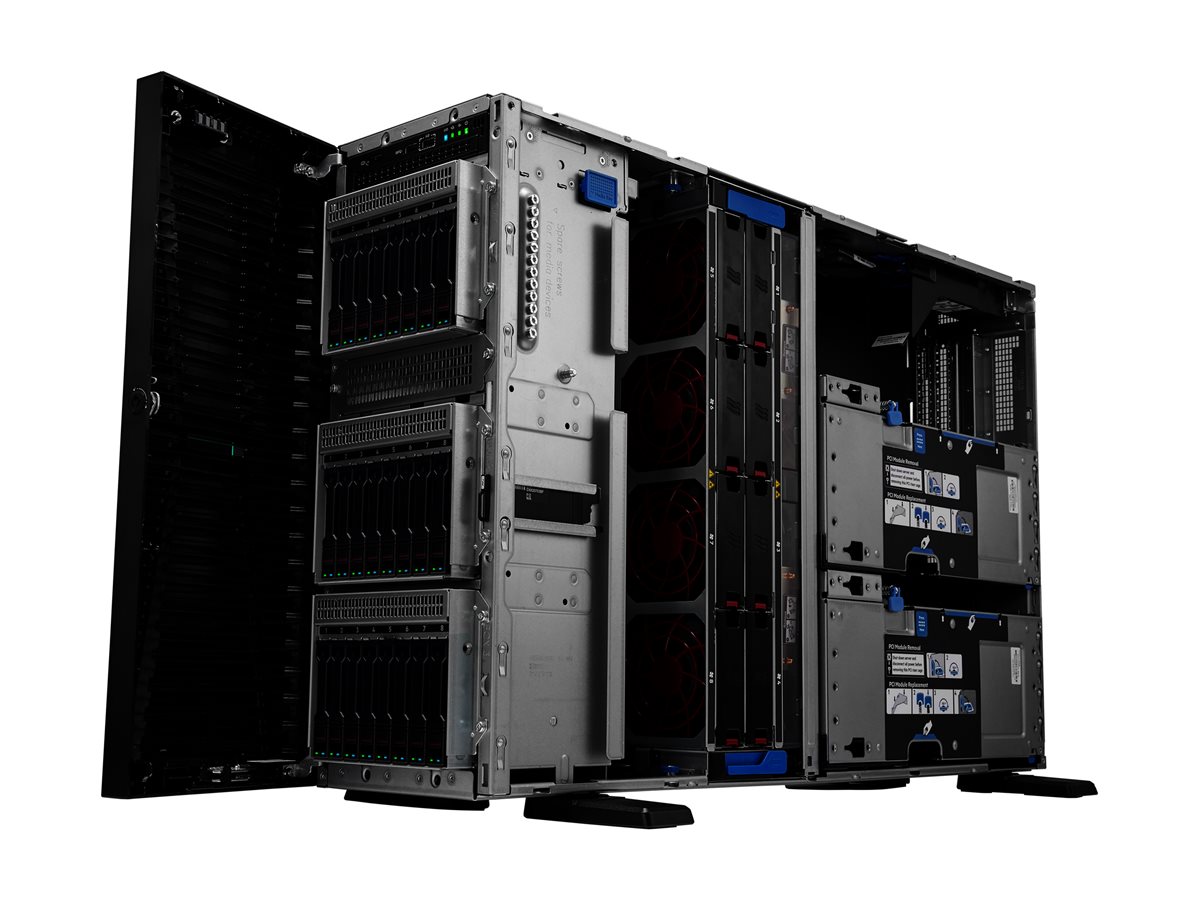

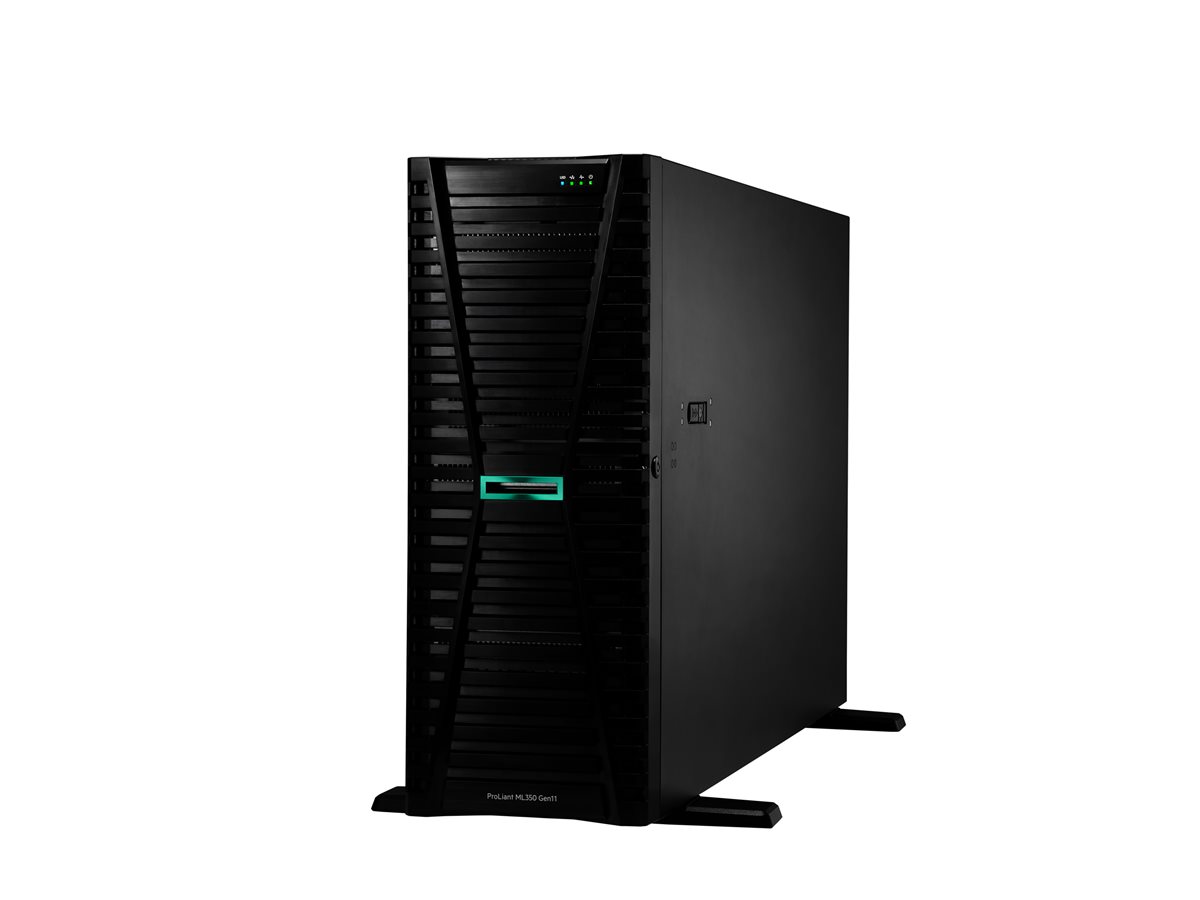

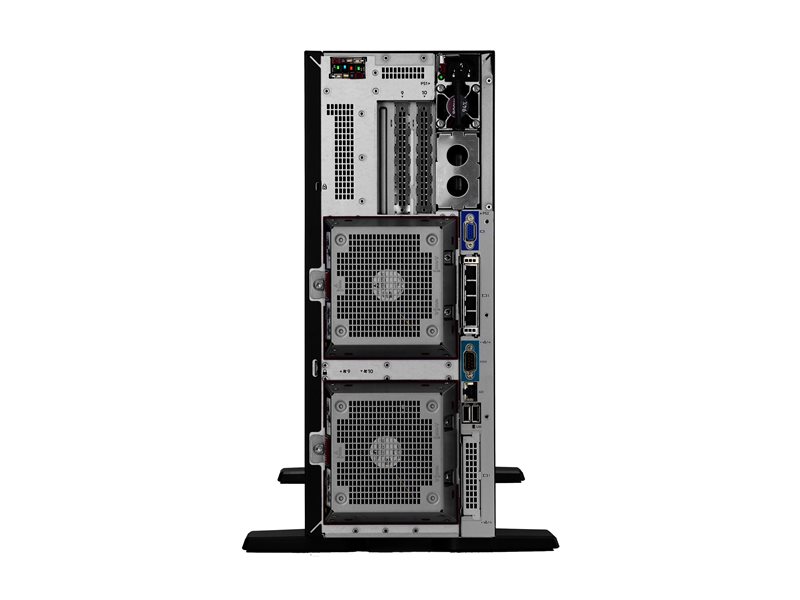

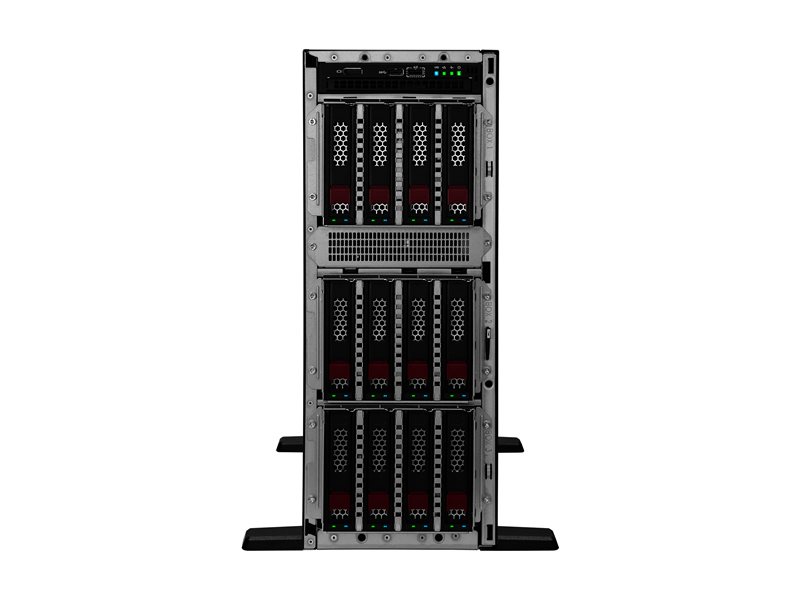

Server - tower 4U - 2-way - 1 x Xeon Silver 4510 / up to 4.1 GHz - RAM 32 GB - SATA - hot-swap 3.5" bay(s) - HDD 2 x 4 TB - Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant ML350 Gen11 Network Choice - tower Xeon Silver 4510 2.4 GHz - 32 GB - HDD 2 x 4 TB |
| Type | Server - tower |
| Height (Rack Units) | 4U |
| Localization | Region: North America |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Silver 4510 / 2.4 GHz (up to 4.1 GHz, (12-core) |
| Processor Socket | LGA4677 Socket-E |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | 2 x HDD 4 TB - SATA |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Yes |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Dimensions (WxDxH) | 6.9 in x 28 in x 18.2 in |
| Weight | 60.45 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 4 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 4 (total) / 2 (free) x hot-swap 3.5" LFF |
| Slots | 4 (total) / 4 (free) x PCIe 5.0 x16 (x8 mode) ¦ 1 (total) / 0 (free) x Open Compute Project mezzanine (OCP) (for OROC/NIC adapter) |
| Interfaces | 1 x VGA (1 rear) ¦ 1 x DisplayPort 1.1a (1 front) ¦ 1 x HPE iLO - Type A (1 in front) (service port) ¦ 1 x HPE iLO - RJ-45 (1 rear) (management port) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) ¦ 1 x USB 2.0 (1 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | CPU standard heatsink, 3 standard fans |
| Theft/Intrusion Protection | Padlock eye, security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ACPI 6.1, ASHRAE Class A3, ASHRAE Class A4, FIPS 140-3, ErP Lot 9, SMBIOS 3.1, UEFI 2.7, Redfish API, TLS v1.2, Active Directory v1.0 |
| RAM | |
| Installed Size | 32 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 31 (empty) |
| Features | HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only, registered |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V |
| Power Provided | 800 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Intel VROC SATA Software RAID |
| Channel Qty | 14 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | DisplayPort, VGA |
| Operating System / Software | |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Hard Drive | |
| Type | HDD |
| Capacity | 2 x 4 TB |
| Interface Type | SATA |
| Dimensions & Weight | |
| Width | 6.9 in |
| Depth | 28 in |
| Height | 18.2 in |
| Weight | 60.45 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4510 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| CPU Socket | LGA4677 Socket-E |
| Chipset Type | Intel C741 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
