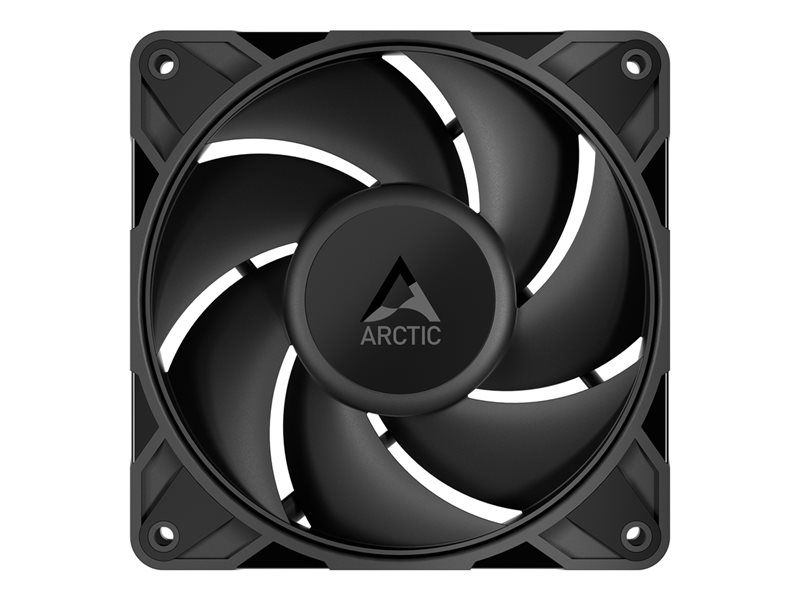

ARCTIC - ARCTIC P12 Pro PST
Case fan - with cable splitter - 120 mm - black (pack of 5)
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | ARCTIC P12 Pro PST - case fan - with cable splitter |
| Product Type | Case fan - with cable splitter |
| Packaged Quantity | 5 (specifications are for single item) |
| Package Content | 20 mounting screws |
| Color | Black |
| Fan Diameter | 120 mm |
| Fan Height | 0.98 in |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 600-3000 rpm |
| Air Flow | 77 cfm |
| Noise Level | 25 dBA |
| Power Connector | 4-pin connector + 4-pin socket |
| Rated Voltage | 12 V |
| Features | PWM control, daisy-chain design, Sealed Precision Fluid Bearing (FDB), automated balancing, reverse polarity protection, PWM Sharing Technology (PST), optimized bearing-shaft design |
| Dimensions (WxDxH) | 4.7 in x 4.7 in x 1 in |
| Weight | 6.52 oz |
| Manufacturer Warranty | 6-year warranty |
| General | |
| Packaged Quantity | 5 (specifications are for single item) |
| Product Type | Case fan - with cable splitter |
| Package Content | 20 mounting screws |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 1 in |
| Weight | 6.52 oz |
| Shipping Dimensions (WxDxH) / Weight | 4.9 in x 5.1 in x 4.8 in / 2.28 lbs |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 6 years |
| Miscellaneous | |
| Compliant Standards | EN 55035:2017/A11:2020, REACH 2006/1907/EC, RoHS 2011/65/EU, EN 55032:2015/A11:2020/A1:2020, UKCA, EMC 2014/30/EU, RoHS 2015/863/EU |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Heatsink & Fan | |
| Fan Diameter | 120 mm |
| Fan Height | 0.98 in |
| Fan Bearing | Fluid dynamic bearing |
| Rotation Speed | 600-3000 rpm |
| Air Flow | 77 cfm |
| Air Pressure | 6.9 mm |
| Noise Level | 25 dBA |
| Power Connector | 4-pin connector + 4-pin socket |
| Rated Voltage | 12 V |
| Start Voltage | 3.3 V |
| Rated Current | 0.33 A |
| Cable Length | 18.9 in |
| Features | PWM control, daisy-chain design, Sealed Precision Fluid Bearing (FDB), automated balancing, reverse polarity protection, PWM Sharing Technology (PST), optimized bearing-shaft design |
