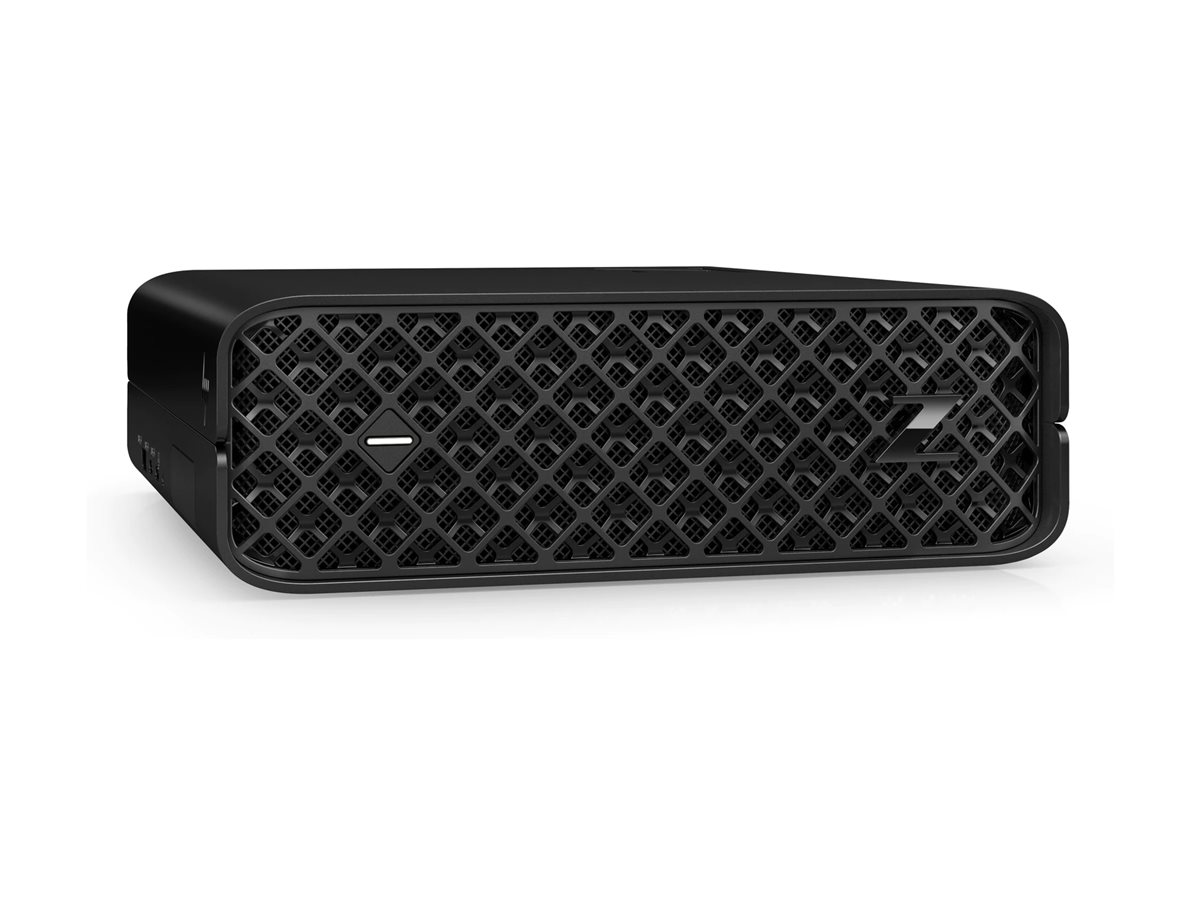

Bosch - Bosch DICENTIS DCNM-SERVER3
Mini 1 x Core i7 12700 / up to 4.9 GHz - RAM 16 GB - SSD 256 GB - UHD Graphics 770 - Gigabit Ethernet - Microsoft Windows Server 2022 for Embedded Systems - Telecommunications - monitor: none - with HP 3 years Next Business Day Onsite Hardware Support
Bosch
DCNM-SERVER3
0800549595216
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Bosch DICENTIS DCNM-SERVER3 - mini Core i7 12700 2.1 GHz - 16 GB - SSD 256 GB |
| Type | Workstation - mini |
| Bundled Services | HP 3 years Next Business Day Onsite Hardware Support |
| Processor | 1 x Intel Core i7 (12th Gen) 12700 / 2.1 GHz (up to 4.9 GHz, (12-core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 25 MB |
| Cache Per Processor | 25 MB |
| RAM | 16 GB DDR5 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express 4.0 x4 - M.2 2280 |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | Microsoft Windows Server 2022 for Embedded Systems - Telecommunications |
| Software Included | DICENTIS Conference System |
| Dimensions (WxDxH) | 8.3 in x 8.6 in x 2.7 in |
| Weight | 7.05 lbs |
| General | |
| Type | Workstation |
| Bundled Services | HP 3 years Next Business Day Onsite Hardware Support |
| Product Form Factor | Mini |
| Expansion / Connectivity | |
| Interfaces | 2 x LAN (Gigabit Ethernet) |
| RAM | |
| Installed Size | 16 GB |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | DHCP support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Efficiency | 89% |
| Power Factor Correction | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Cache Memory | |
| Installed Size | 25 MB |
| Cache Per Processor | 25 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 |
| Operating System / Software | |
| OS Provided | Microsoft Windows Server 2022 for Embedded Systems - Telecommunications |
| Software | DICENTIS Conference System |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 4.0 x4 |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 8.6 in |
| Height | 2.7 in |
| Weight | 7.05 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 12700 |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 4.9 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology |
