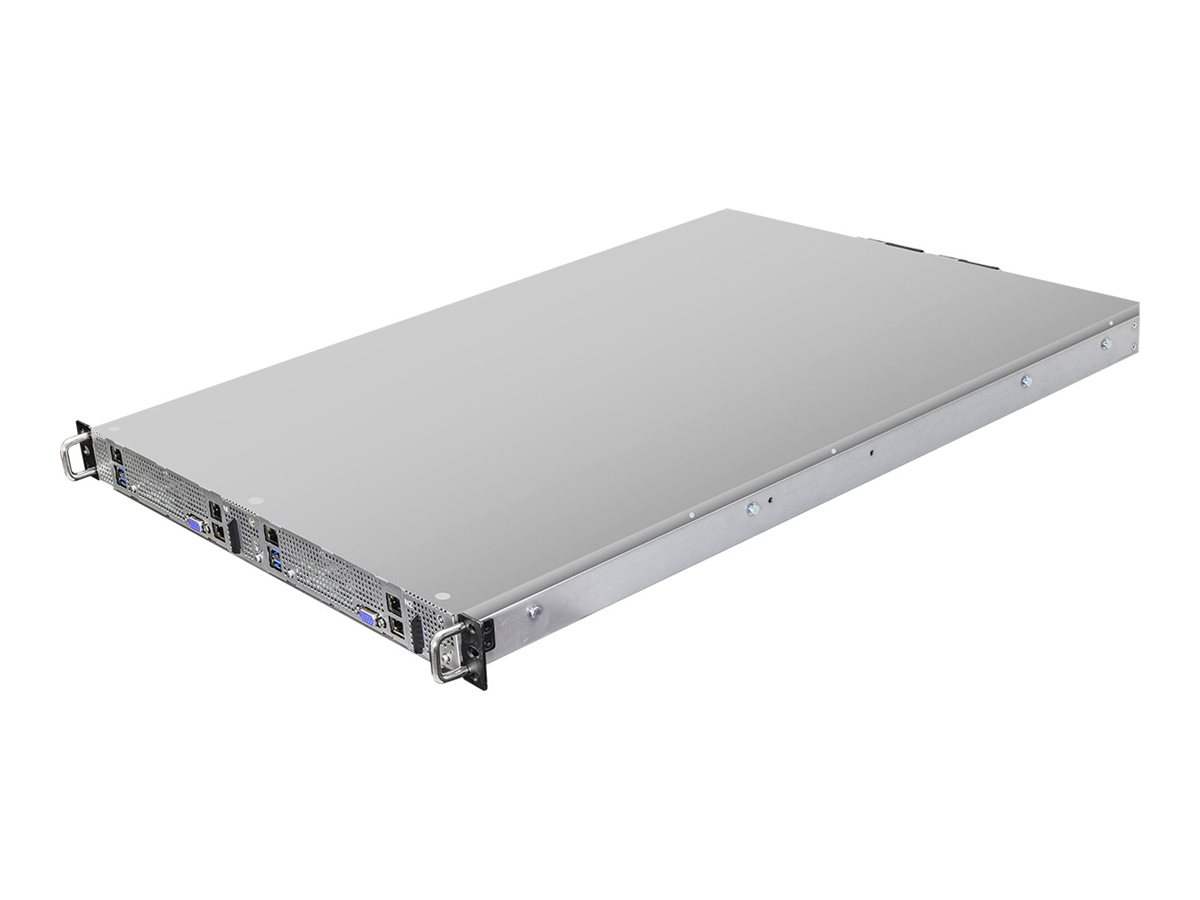

ASRock - ASRock Rack 1U2N2G-ROME/2T
Server - rack-mountable - 1U - 1-way - no CPU up to - RAM 0 GB - no HDD - AST2500 - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none
ASRock
1U2N2G-ROME/2T
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack 1U2N2G-ROME/2T - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | LGA4094 Socket |
| RAM | 0 GB (installed) / 256 GB (max) - DDR4 SDRAM |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Networking | 1GbE, 10GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.2 in x 25.6 in x 1.7 in |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel, 8 x fans |
| Sensors | Temperature |
| Server Scalability | 1-way |
| Internal Bays Qty | 1 |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal M.2 2280 |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (SATA/PCIe 4.0 x4 (NVMe)) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - full-height |
| Interfaces | 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x VGA |
| Miscellaneous | |
| Compliant Standards | Plug and Play, ACPI 2.0, SMBIOS 2.8.0 |
| RAM | |
| Installed Size | 0 GB (installed) / 256 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 4 (empty) |
| Features | Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM) |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8211E |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | Integrated BMC with IPMI |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V |
| Power Provided | 1600 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 25.6 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA4094 Socket |
| Motherboard Name | AsRock Rack ROMED4ID-2T |
