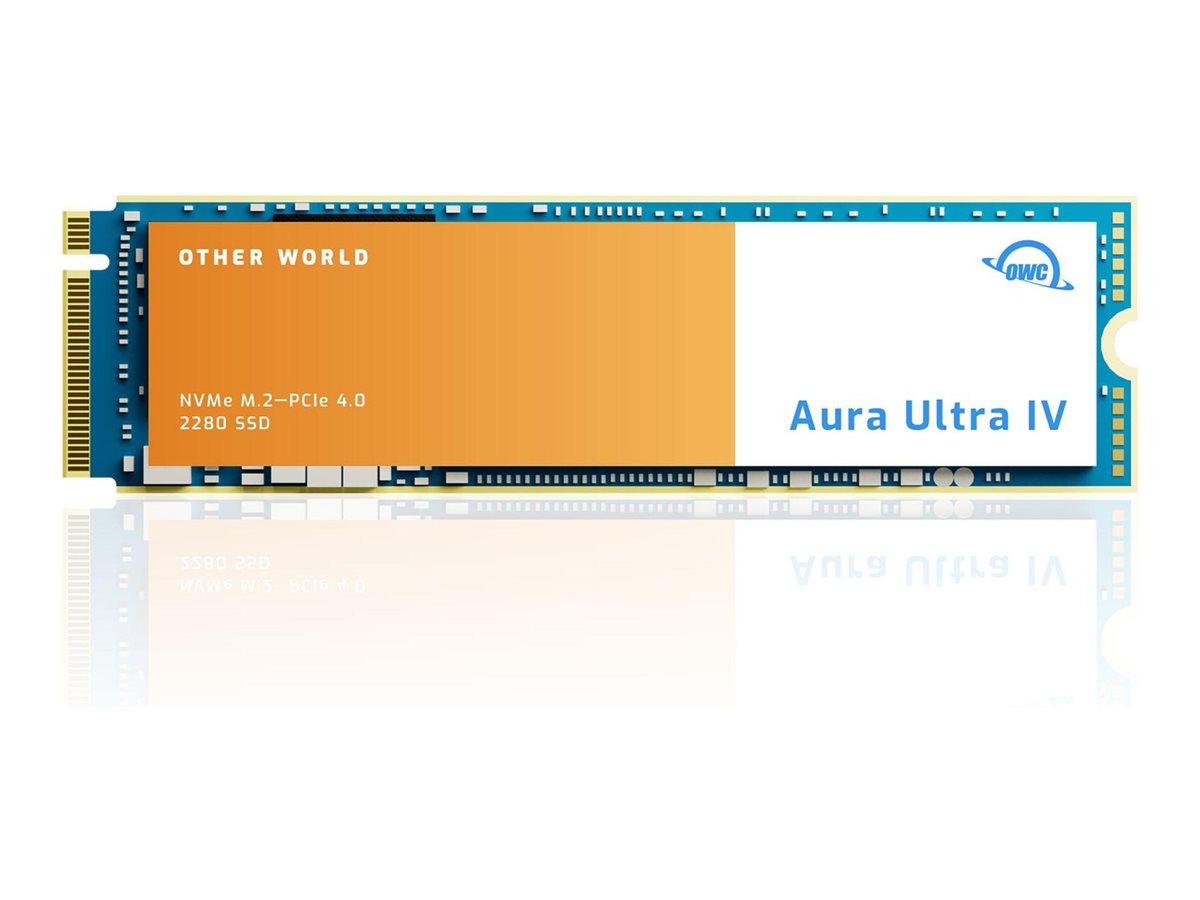

Other World Computing - OWC Aura Ultra IV
SSD - 4 TB - internal - M.2 2280 (double-sided) - PCIe 4.0 x4 (NVMe)
Other World Computing
OWCS3DIG3P4T40
0810100985738
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | OWC Aura Ultra IV - SSD - 4 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 4 TB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 (double-sided) |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | NVM Express (NVMe) 1.4, TRIM support, Secure Erase function, IG5236 controller, Native Command Queuing (NCQ), RAID ready, dynamic SLC caching, LDPC error correction, 3% over-provisioning, S.M.A.R.T. |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 4 TB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 (double-sided) |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | NVM Express (NVMe) 1.4, TRIM support, Secure Erase function, IG5236 controller, Native Command Queuing (NCQ), RAID ready, dynamic SLC caching, LDPC error correction, 3% over-provisioning, S.M.A.R.T. |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption | 9.1 Watt (write) ¦ 4.2 Watt (seek) ¦ 0.3 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Performance | |
| Drive Writes Per Day (DWPD) | 783 |
| SSD Endurance | 2000 TB |
| Internal Data Rate | 7337 MBps (read) / 6800 MBps (write) |
| 4KB Random Read | 730000 IOPS |
| 4KB Random Write | 1100000 IOPS |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
| Software & System Requirements | |
| OS Required | Microsoft Windows 11, Windows 10 (32/64 bits), Microsoft Windows Server 2019, Microsoft Windows Server 2022 |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 (double-sided) |
