Eaton - Eaton 9PX 9PX6KSP
UPS (rack-mountable / external) - AC 120/208 V - 4900 Watt - 5500 VA - 9 Ah - Ethernet 10/100, RS-232, USB - output connectors: 6 - 4U - 19" - black, silver
Eaton
9PX6KSP
0743172046147
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton 9PX 9PX6KSP - UPS - 4900 Watt - 5500 VA |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 19" - 4U |
| Weight | 157.41 lbs |
| Input Voltage | AC 120/208 V |
| Output Voltage | AC 120/208 V |
| Power Capacity | 4900 Watt / 5500 VA |
| Input Connectors | Power NEMA L14-30, terminal block |
| Output connectors | 1 x power NEMA L6-30 ¦ 1 x power NEMA L14-30 ¦ 6 x power NEMA 5-20 |
| Battery | Lead acid - 9 Ah |
| Battery Form Factor | Plug-in module |
| Batteries Qty | 2 |
| Run Time (Up To) | 5.4 min at full load |
| Networking | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP, HTTP |
| Included Accessories | Tower stand, rack mounting rails |
| Color | Black, silver |
| Dimensions (WxDxH) | 17.3 in x 27.6 in x 6.8 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS - rack-mountable / external |
| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 4U |
| Rack Size | 19" |
| Color | Black, silver |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years |
| Miscellaneous | |
| Included Accessories | Tower stand, rack mounting rails |
| Cables Included | USB cable - external - 6 ft |
| Rack Mounting Kit | Included |

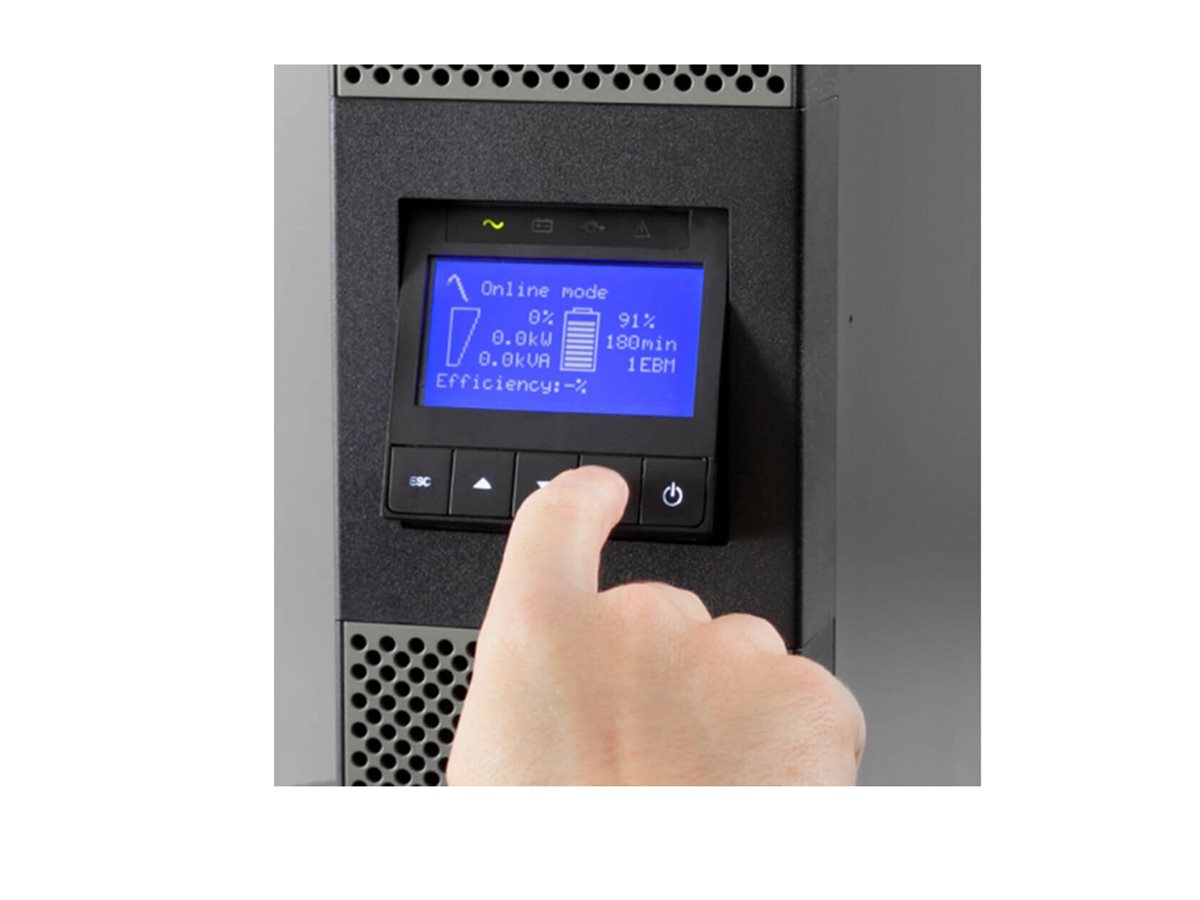

| Features | Advance Battery Management (ABM), LCD display, LED indicators |
| Compliant Standards | NOM, cULus |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP, HTTP |
| Software / System Requirements | |
| Software Included | Intelligent Power Manager (up to 10 nodes), Intelligent Power Software Suite |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Sound Emission | 45 dBA |
| Battery | |
| Quantity | 2 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120/208 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L14-30, terminal block |
| Power Output Connectors Details | 1 x power NEMA L6-30 ¦ 1 x power NEMA L14-30 ¦ 6 x power NEMA 5-20 |
| Output Voltage | AC 120/208 V 50/60 Hz |
| Power Capacity | 4900 Watt / 5500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 27.6 in |
| Height | 6.8 in |
| Weight | 157.41 lbs |
