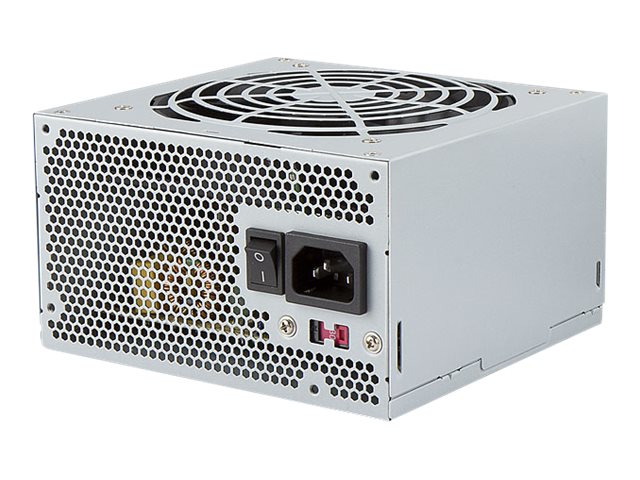

IN WIN - IN WIN IP-S-Series CQ IP-S350CQ2-0
Power supply (internal) - ATX12V 2.5 - AC 115/230 V - 350 Watt
IN WIN
IP-S350CQ2-0 H
0692567193914
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | IN WIN IP-S-Series CQ IP-S350CQ2-0 - power supply - 350 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.5 |
| Input Voltage | AC 115/230 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Output Current | +12V1 - 17 A ¦ +12V2 - 16 A ¦ +5V - 15 A ¦ +3.3V - 21 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Output connectors | 1 x power 24 pin ATX ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 4 pin internal power ¦ 1 x 4 pin mini-power connector ¦ 4 x 15 pin Serial ATA power ¦ 1 x 6 pin PCI Express power |
| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 5.9 in x 5.5 in x 3.4 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.5 |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Intel 4th-gen CPU (Haswell) compatible, Smart Thermal Control to Balance Noise & Cooling |
| Compliant Standards | CB, FCC, RoHS, TUV SUD, EAC, MIL-STD-217D/F |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Power Device | |
| Input Voltage | AC 115/230 V |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 4 pin internal power ¦ 1 x 4 pin mini-power connector ¦ 4 x 15 pin Serial ATA power ¦ 1 x 6 pin PCI Express power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Output Current | +12V1 - 17 A ¦ +12V2 - 16 A ¦ +5V - 15 A ¦ +3.3V - 21 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.5 in |
| Height | 3.4 in |
