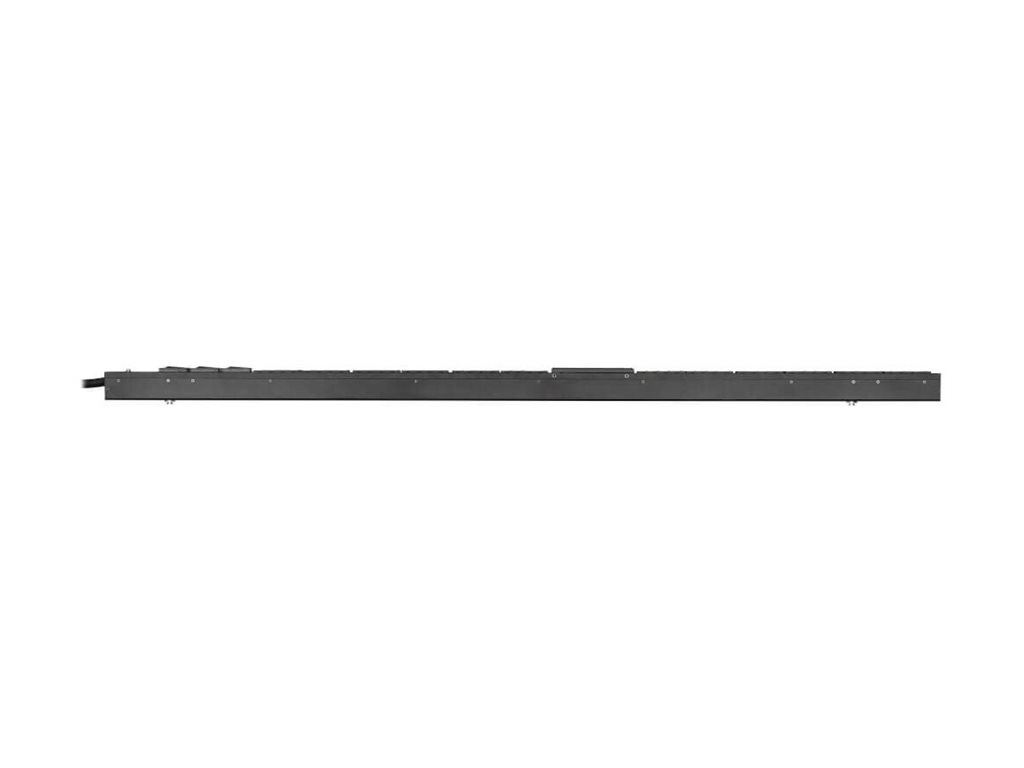

Eaton - Eaton G4 3-Phase Managed Rack PDU G4, 240/415V, 48 Outlets, 24A/32A, 17.3kW, 532P6W Input, 10 ft. Cord, 0U Vertical, TAA
Power distribution unit (rack-mountable) - managed - AC 240/415 V - 17.3 kW - 17300 VA - 3-phase - Ethernet 10/100/1000, USB - input: IEC 60309 532P6W - output connectors: 48 (24 x IEC 60320 C13, 24 x IEC 60320 C39) - 0U - 10 ft cord - black - TAA Compliant
Eaton
EVMAG332C
0786689795054
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton G4 3-Phase Managed Rack PDU G4, 240/415V, 48 Outlets, 24A/32A, 17.3kW, 532P6W Input, 10 ft. Cord, 0U Vertical, TAA - power distribution unit - managed - 17.3 kW - 17300 VA - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 19.4 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 240/415 V |
| Output Voltage | AC 208 V |
| Power Capacity | 17.3 kW / 17300 VA |
| Input Connectors | 1 x power IEC 60309 532P6W |

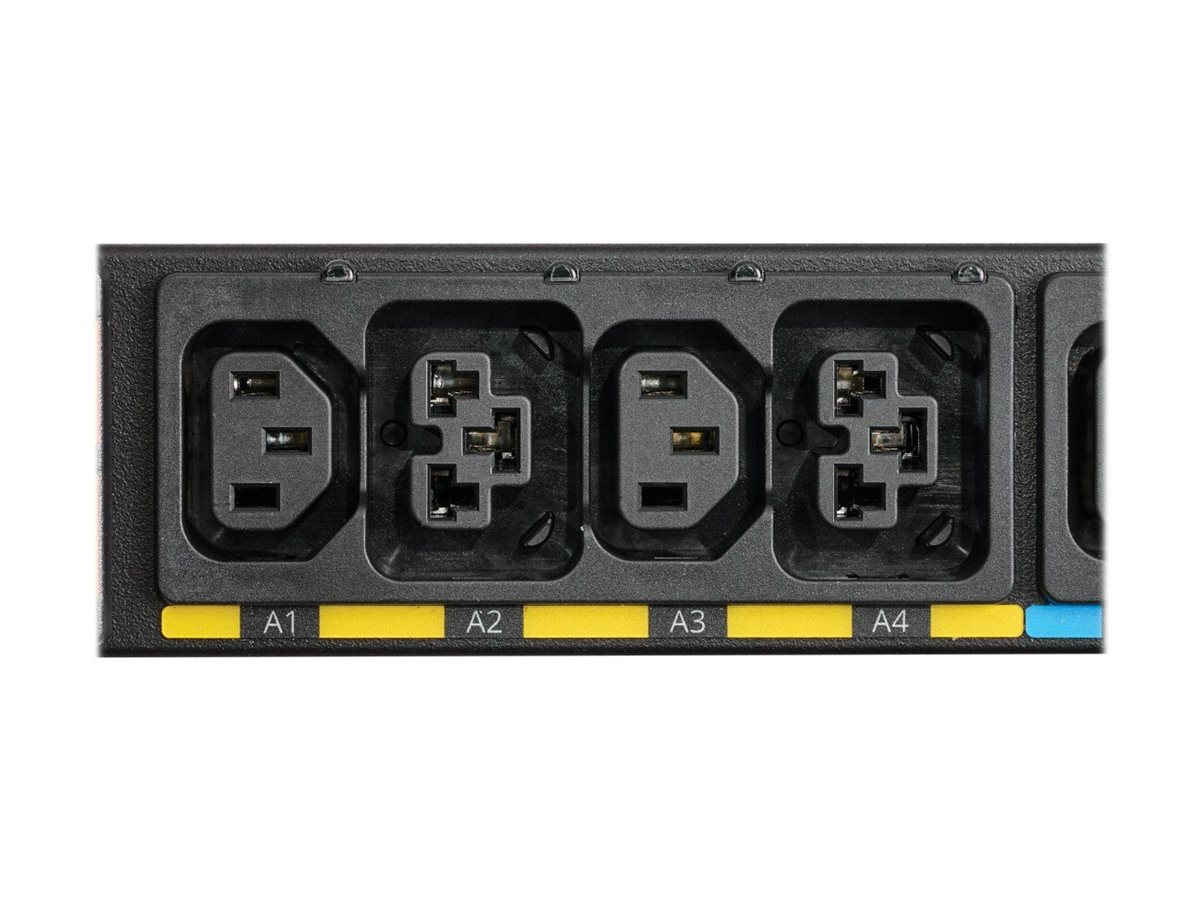

| Output connectors | 24 x power IEC 60320 C13 ¦ 24 x power IEC 60320 C39 |
| Networking | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP |
| Color | Black |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 2 in x 0.8 in x 74.8 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical mount, aluminum housing, Zero Touch Provisioning (ZTP), LCD display, 6 circuit breakers, LED indicators, cascadable, overload protection, daisy chain functionality |
| Compliant Standards | ICES, UL 62368-1, cTUVus, FCC Part 15 A, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 240/415 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 532P6W |
| Power Output Connectors Details | 24 x power IEC 60320 C13 ¦ 24 x power IEC 60320 C39 |
| Output Voltage | AC 208 V 50/60 Hz |
| Max Electric Current | 32 A |
| Power Capacity | 17.3 kW / 17300 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 0.8 in |
| Height | 74.8 in |
| Weight | 19.4 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.7 in |
| Shipping Depth | 8.3 in |
| Shipping Height | 81.5 in |
| Shipping Weight | 31.75 lbs |
