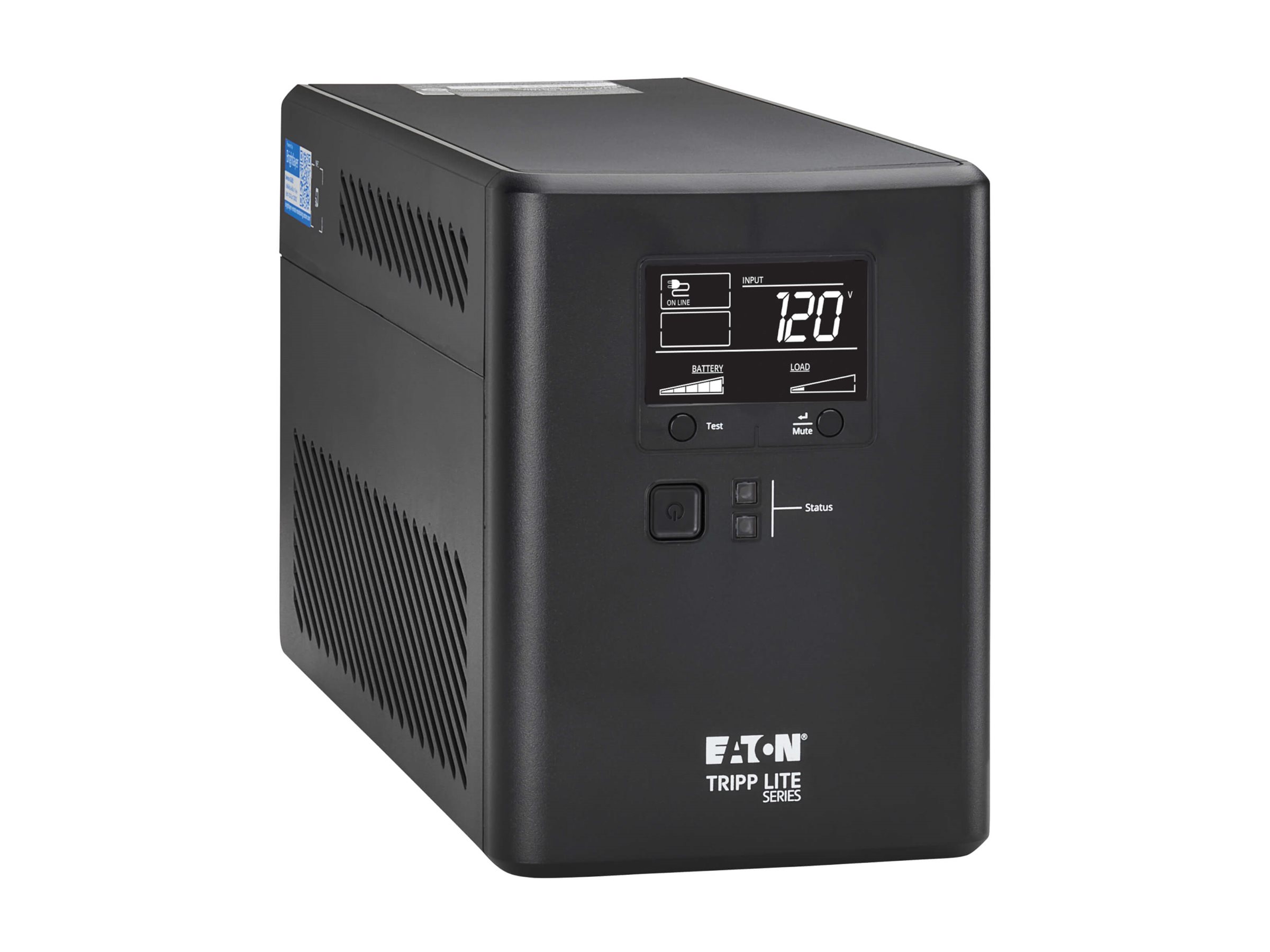

Eaton - Eaton Tripp Lite Series
UPS - AC 120 V - 750 Watt - 1000 VA - valve regulated lead-acid (VRLA) - RJ-45, NFC, USB - output connectors: 10 - 2U
Eaton
SMART1000LCDNC
0037332280114
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - UPS - 750 Watt - 1000 VA - VRLA |
| Device Type | UPS - external |
| Rack Size | 2U |
| Weight | 23.15 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% |
| Power Capacity | 750 Watt / 1000 VA |
| Input Connectors | 1 x power NEMA 5-15P |
| Output connectors | 10 x power NEMA 5-15R (UPS and surge) |
| Battery | Lead acid valve regulated lead-acid (VRLA) |
| Run Time (Up To) | 2 min at full load |
| Networking | RJ-45, NFC, USB |
| Remote Management Protocol | CLI |
| Dimensions (WxDxH) | 17.2 in x 8.3 in x 3.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 24 pin USB-C ¦ 1 x management (Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 5 ft |
| Features | Plastic housing, audible alarm, LCD display, LED indicators, cold-start function, Automatic Voltage Regulation (AVR) |
| Compliant Standards | CAN/CSA-C22.2 No. 107.3 (Canada), CEC, DOE, EMI FCC Class B, ICES (Canada), Mexico NOM, RoHS, UL 1778 |
| Networking | |
| Remote Management Interface | RJ-45, NFC, USB |
| Remote Management Protocol | CLI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Battery | |
| Technology | Valve regulated lead-acid (VRLA) lead acid |
| Run Time (Up To) | 2 min at full load ¦ 7 min at half load |
| Features | Hot-swappable |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 97 - 145 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 10 x power NEMA 5-15R (UPS and surge) |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Power Capacity | 750 Watt / 1000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 158 Joules |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 8.3 in |
| Height | 3.5 in |
| Weight | 23.15 lbs |
