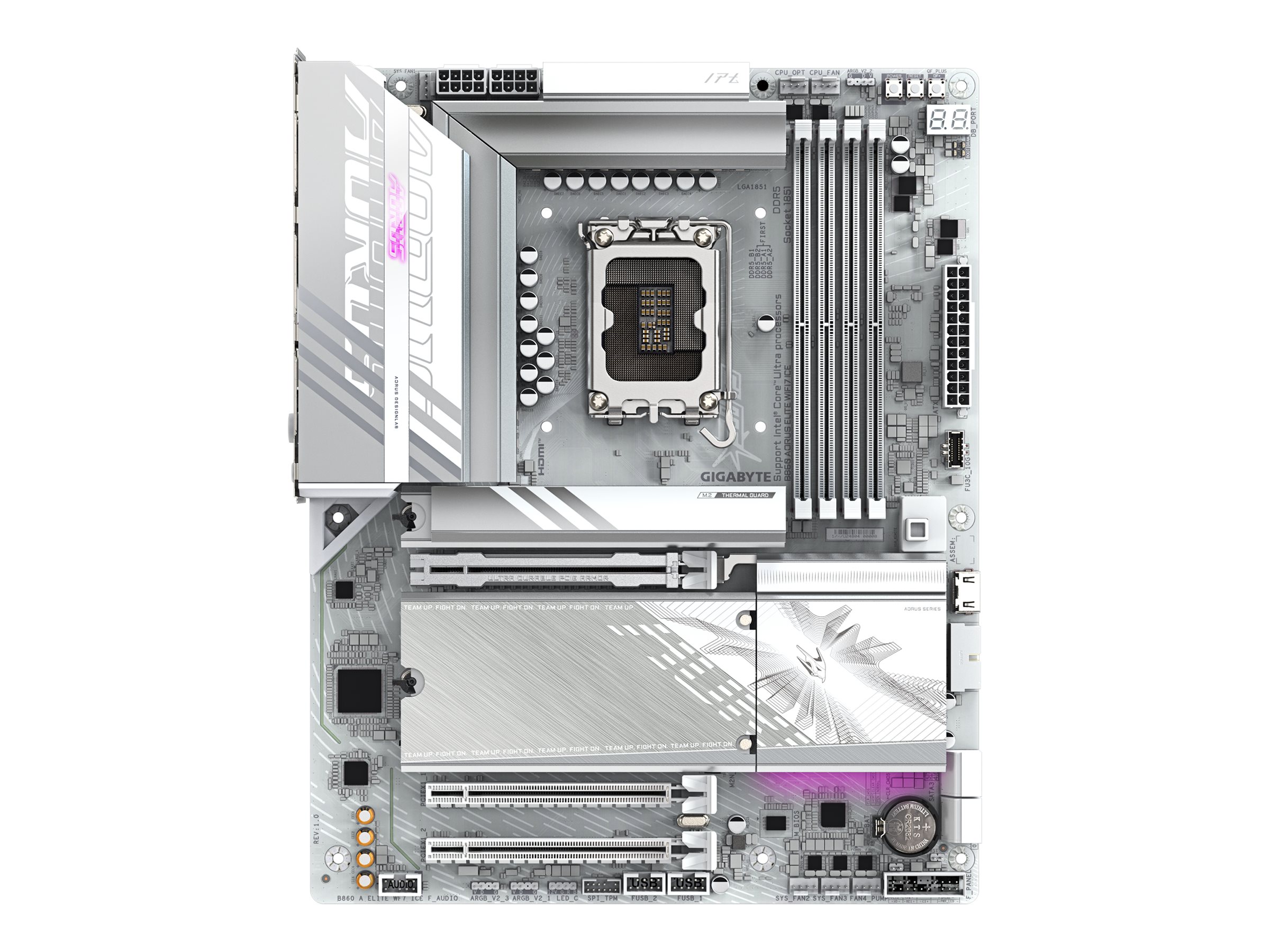

GIGABYTE - AORUS B860 ELITE WIFI7 ICE
Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Bluetooth, 2.5 Gigabit LAN, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio
GIGABYTE
B860 AORUS ELITE WIFI7 ICE
0889523046289
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AORUS B860 ELITE WIFI7 ICE - motherboard - ATX - LGA1851 Socket - B860 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B860 |
| Processor Socket | 1 x LGA1851 Socket |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC (operate in non-ECC mode), unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire Ports | 1 x USB4 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Audio | HD Audio |
| LAN | Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x M.2 socket (2280/25110 M.2 Key M slot) ¦ 2 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x USB4 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x antenna ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x speaker - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | Wi-Fi antenna, 2 x fan extension power cables, thermal pad for M.2 SSD, 1 x M.2 screw, computer case screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | Water cooling flow rate, temperature detection, fan speed detection, fan fail warning, system voltage, fan control |
| Hardware Features | 14+1+2 Phase Power Design, DIY Friendly Design, 6 Layer PCB, 2x Copper PCB, GIGABYTE Smart Fan 6, M.2 EZ Latch, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch click, RGB FUSION |
| LAN | |
| Network Controller | Realtek RTL8922AE |
| Network Interfaces | Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4600 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
