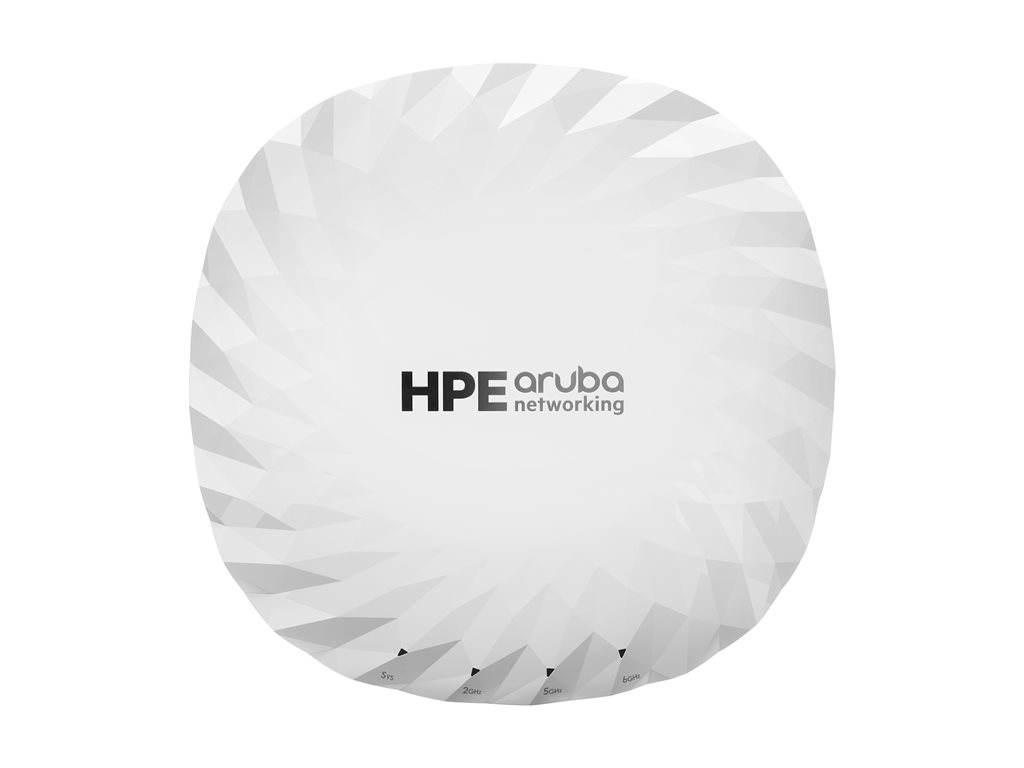

Hewlett Packard Enterprise - HPE Aruba Networking AP-735 (US)
Campus - wireless access point - ZigBee, Bluetooth 5.4 LE, Wi-Fi 7 - Wi-Fi 7 - 2.4 GHz, 5 GHz, 6 GHz - BTO ceiling mountable
Hewlett Packard Enterprise
S1G43A
0190017663807
N/A
New
Price: $1,553.00
MSRP: $1,995.00
Discount off MSRP: 22.16%
Total Available: 33
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking AP-735 (US) - Campus - wireless access point - Wi-Fi 7 |
| Device Type | Wireless access point |
| Form Factor | Ceiling mountable - indoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 LE, IEEE 802.11be (Wi-Fi 7) |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 2.9 Gbps ¦ Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (6 GHz): 5.8 Gbps ¦ Maximum tri-band aggregate data rate: 9.3 Gbps |
| Capacity | Spatial streams: 2 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| OS Required | ArubaOS 10.7.0.0 |
| Power Over Ethernet (PoE) Supported | PoE Class 5 |
| Pricing Type | BTO |
| Dimensions (WxDxH) | 9.4 in x 9.4 in x 2.2 in |
| Weight | 3.17 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Built-in Devices | GNSS receiver, barometric pressure sensor |
| Width | 9.4 in |
| Depth | 9.4 in |
| Height | 2.2 in |
| Weight | 3.17 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 2.5 GBase-T - RJ-45 ¦ 2 x USB 2.0 (host) - Type A ¦ 1 x console - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 635,000 hours |
| Compliant Standards | UL 2043, FCC, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, ETS 300 019 Class 2.3, RED 2014/53/EU, IEC/EN 62368-1, ETS 300 019 Class 3.2 |
| Pricing Type | BTO |
| Networking | |
| Form Factor | Ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, 4096 QAM, DSSS |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 LE, IEEE 802.11be (Wi-Fi 7) |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (5 GHz): 2.9 Gbps ¦ Maximum data rate (2.4 GHz): 688 Mbps ¦ Maximum data rate (6 GHz): 5.8 Gbps ¦ Maximum tri-band aggregate data rate: 9.3 Gbps |
| Capacity | Spatial streams: 2 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37 |
| Status Indicators | System, status, radio |
| Features | Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), packet aggregation A-MPDU, packet aggregation A-MSDU, Intelligent Power Monitoring (IPM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Target Wait Time (TWT), HPE SmartRate, 160MHz bandwidth support, Advanced IoT Coexistence (AIC), Multi-Link Operation (MLO), automatic thermal shutdown |
| Encryption Algorithm | WPA, WPA2, WPA3-Enterprise, WPA3-Enhanced Open, WPA2-MPSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, IEEE 802.11be |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE Class 5 |
| Software / System Requirements | |
| OS Required | ArubaOS 10.7.0.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.7 in |
| Shipping Depth | 10.2 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 4.03 lbs |
| Antenna | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
