StarTech.com - StarTech.com 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays
Backplane with Fans (4U2525-SAS-BACKPLANE) - Storage enclosure - 4 bays (PCIe (NVMe) / U.2)
StarTech.com
4U2525-SAS-BACKPLANE
0065030900133
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays - Backplane with Fans (4U2525-SAS-BACKPLANE) - storage enclosure |
| Device Type | Storage enclosure |
| Color | Black |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Supported Drives | PCIe (NVMe) / U.2 |

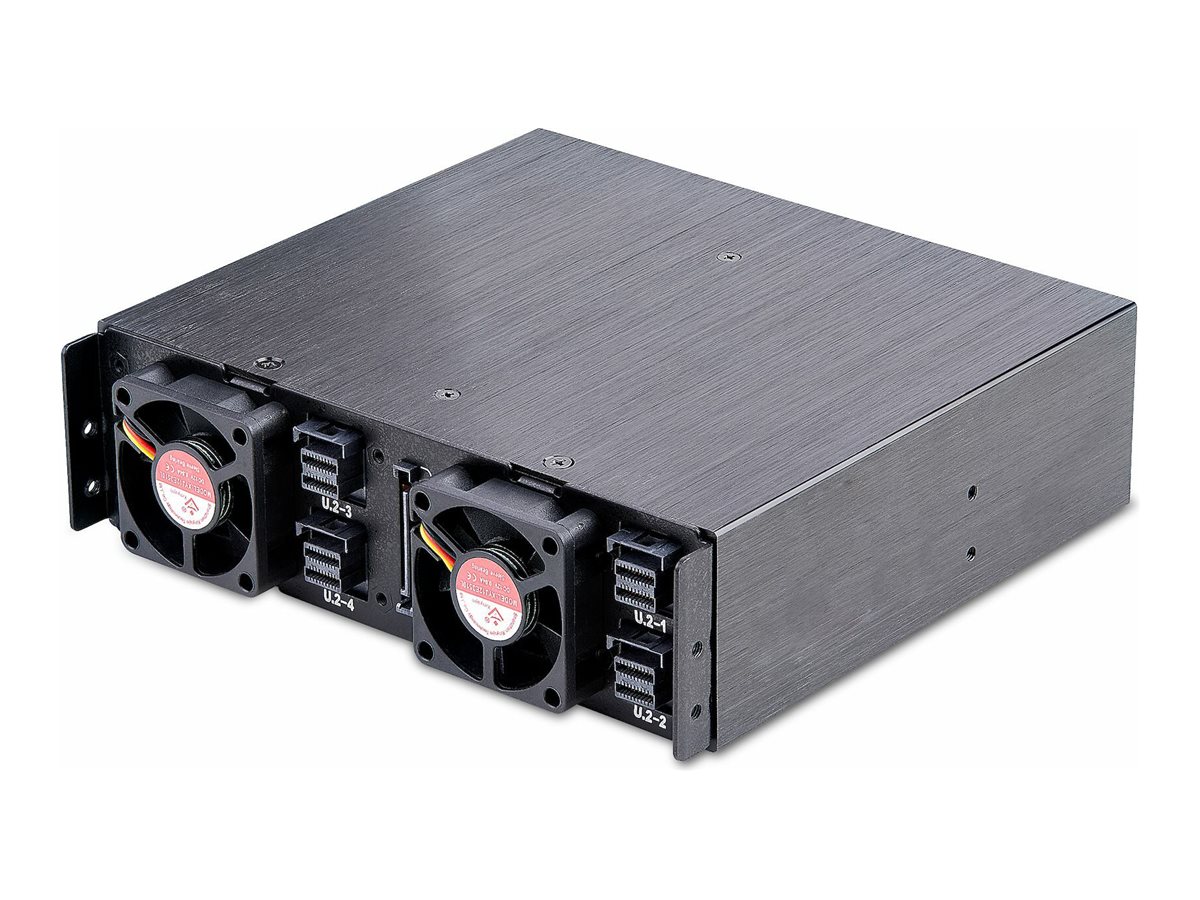

| Built-in Devices | 2 x 35 mm fans |
| Hard Drive | No HDD |
| Dimensions (WxDxH) | 5.5 in x 5.7 in x 1.7 in |
| Weight | 24.69 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Storage enclosure |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" |
| Interfaces | 4 x SAS - 36 pin Mini SAS ¦ 1 x SATA - 15 pin Serial ATA power |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Key lock, 2.47 CFM airflow, up to 32 Gbps data transfer, 4Kn drive compatible, 500 cycles insertion rating, aluminum housing, fan speed switch |

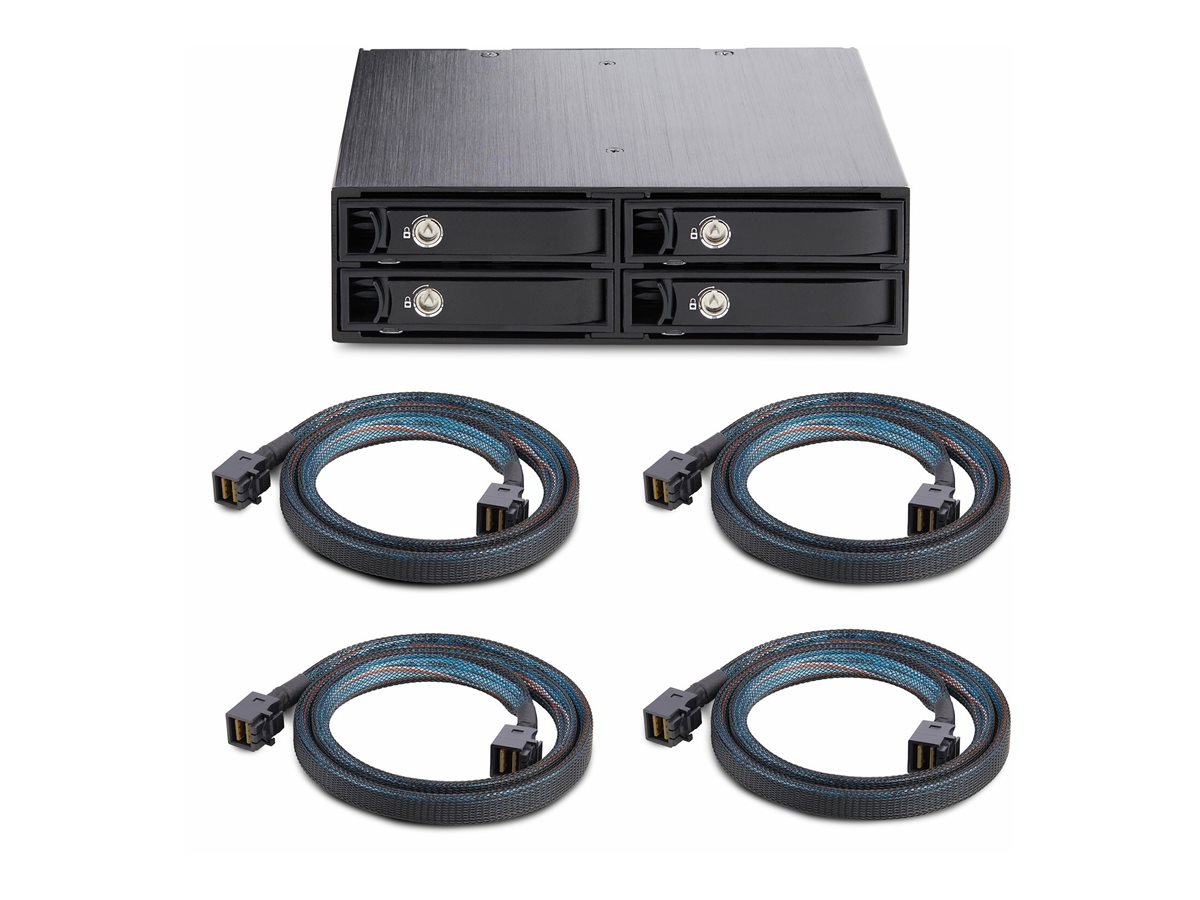

| Cables Included | 4 x mini SAS HD cable - 2 ft |
| MTBF | 30,000 hours |
| Compliant Standards | WEEE, RoHS |

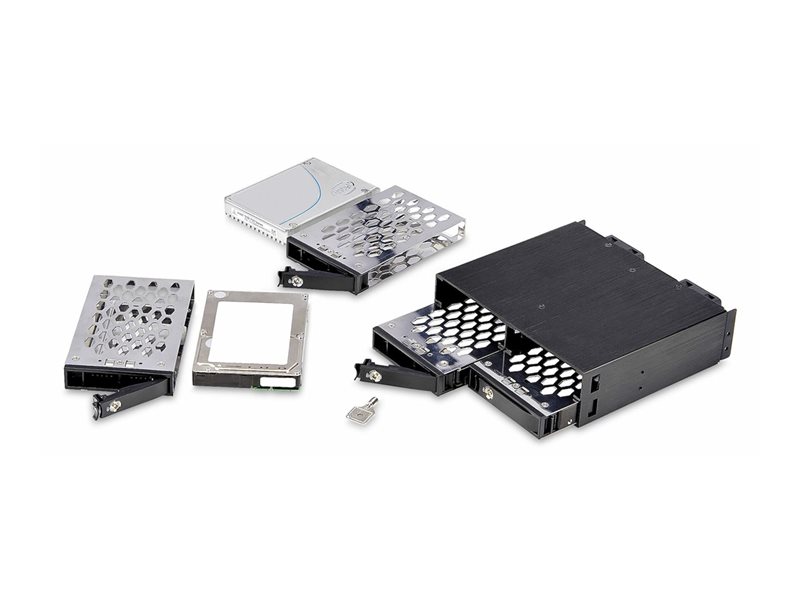

| Included Accessories | 2 x keys, 8 frame mounting screws, 16 drive mounting screws |
| Processor | |
| CPU | No CPU |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 65% RH (non-condensing) |
| Sound Emission | 21.3 dBA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 5.7 in |
| Height | 1.7 in |
| Weight | 24.69 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.3 in |
| Shipping Depth | 7.1 in |
| Shipping Height | 5.2 in |
| Shipping Weight | 2.43 lbs |
| Chassis | |
| Built-in Devices | 2 x 35 mm fans |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | PCIe (NVMe) / U.2 |
