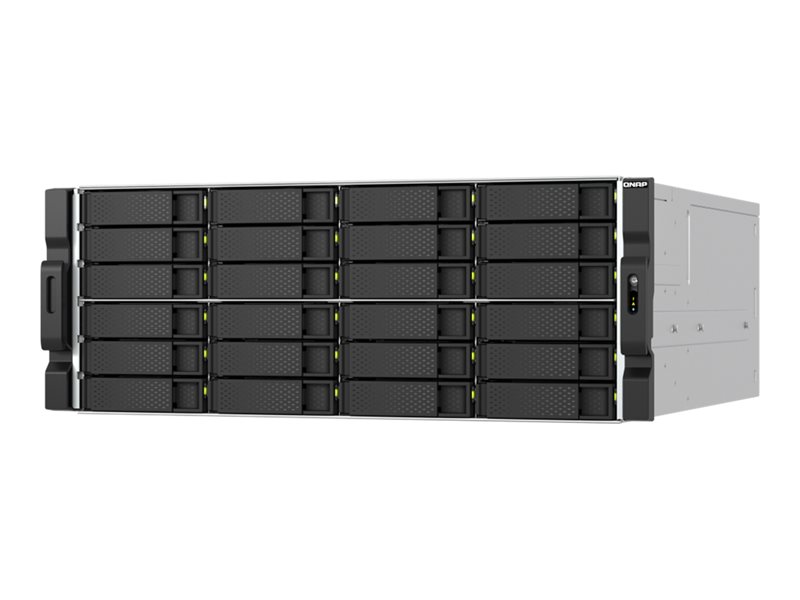

QNAP - QNAP TS-H2477AXU-RP
NAS server - 24 bays - rack-mountable - SATA 6Gb/s - HDD 0 - RAID 0, 1, 5, 6, 10, 50, 60, JBOD, RAID TP - RAM 32 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 4U
QNAP
TS-H2477AXU-RP-R7-32G
0885022032143
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | QNAP TS-H2477AXU-RP - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4U |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Dimensions (WxDxH) | 17 in x 20.1 in x 7 in |
| Weight | 41.05 lbs () |
| Localization | United States |
| Processor | 1 x AMD Ryzen 7 Pro 7000 (8-core) |
| Storage Controller | RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, 60, JBOD, RAID TP |
| Hard Drive | 0 |
| Networking | 1GbE, 2.5GbE, 10GbE |
| Performance | Concurrent connections (CIFS): 5000 ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum volume size: 250 TB ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 128 |
| RAM | 32 GB |
| Power | AC 100-240 V |
| Power Redundancy | Yes |
| Storage Operating System | QNAP QTS 5.2.6 |
| System Requirements | Apple macOS 10.10 or later, CentOS 7.0, IBM AIX 7, Microsoft Windows 7 / 8 / 10 / 11, SuSE Linux 12 or later, Ubuntu 14.04, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows Server 2025 |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4U |
| Total Storage Capacity | 0 TB |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Width | 17 in |
| Depth | 20.1 in |
| Height | 7 in |
| Weight | 41.05 lbs () |
| Built-in Devices | 3 x 60 mm fans, buzzer, LED panel |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 x PCI Express 4.0 x4 ¦ 1 x PCI Express 4.0 x8 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 4 x USB 3.2 Gen 2 - Type A ¦ 2 x Ethernet 10Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Network cable ¦ 2 x power cable |
| Included Accessories | 72 x flat head screws (for 2.5" HDD), 96 x flat head screws (for 3.5" HDD) |
| Networking | |
| Data Link Protocol | 1GbE, 2.5GbE, 10GbE |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Network Services Compatibility | Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP) |
| Performance | Concurrent connections (CIFS): 5000 ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum volume size: 250 TB ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 128 |
| Features | GPU pass-through, RAID Level Migration, RAID Hot Spare, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Secure Erase, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, LUN snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, External Device Management, MTP, user quota, group quota, folder quota, DHCP server, firewall protection, Qsirch, LDAP support |
| Encryption Algorithm | AES-NI |
| Compliant Standards | UPnP |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Power Provided | 800 Watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QTS 5.2.6 |
| OS Required | Apple macOS 10.10 or later, CentOS 7.0, IBM AIX 7, Microsoft Windows 7 / 8 / 10 / 11, SuSE Linux 12 or later, Ubuntu 14.04, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows Server 2025 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD, RAID TP |
| Hard Drive | |
| Type | HDD |
| Capacity | 0 |
| Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen 7 Pro 7000 |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 5.3 GHz |
| RAM | 32 GB (installed) / 192 GB (supported) - DDR5 |
| Flash Memory Installed | 5 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 61.16 lbs |
