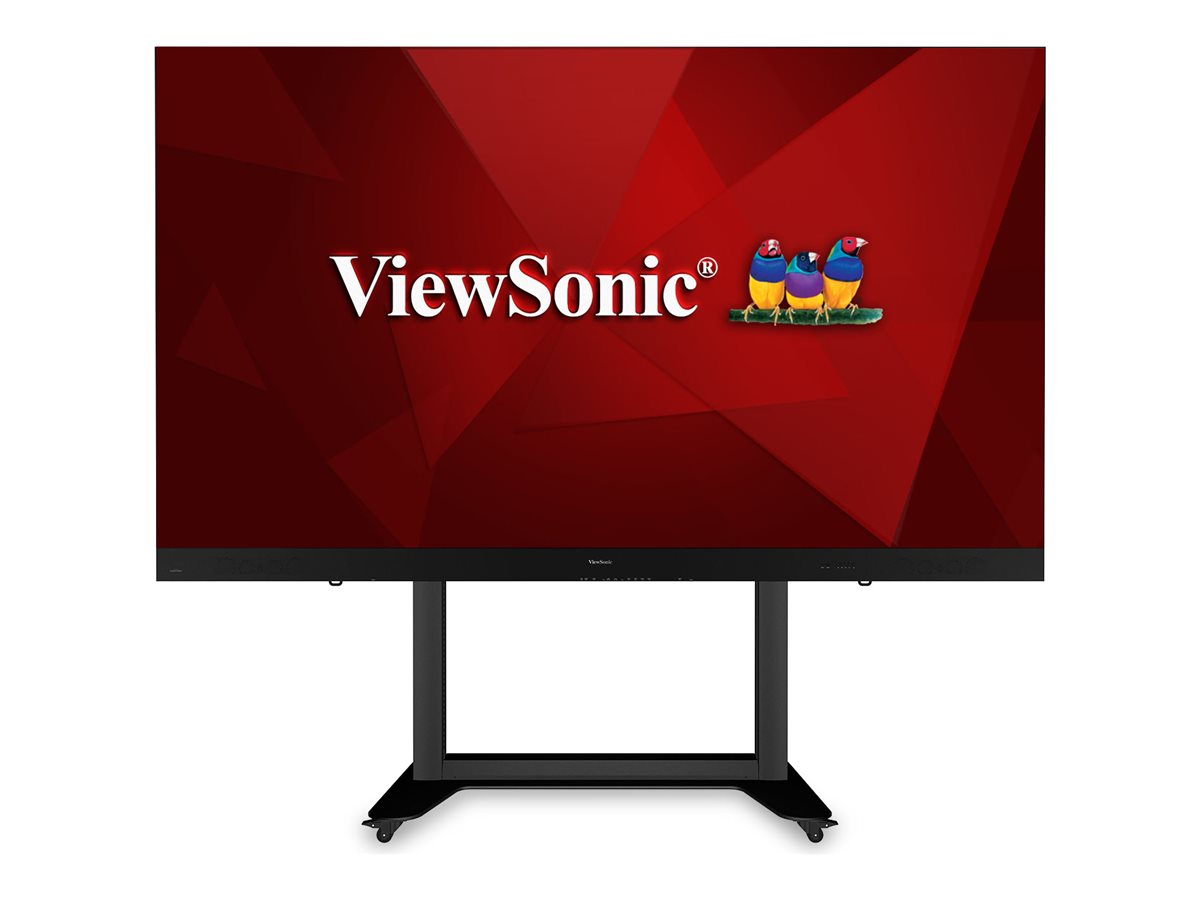

ViewSonic - ViewSonic LDS135-153
LED video wall - digital signage - 1920 x 1080 135" - 100 x - 3-in-1 SMD - Direct View LED
ViewSonic
LDS135-153
0766907028560
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ViewSonic LDS135-153 LED video wall - for digital signage |
| Product Type | LED video wall |
| Diagonal Size | 135" |
| Commercial Use | Yes - digital signage |
| Number of Screens | 100 |
| Video Wall Resolution | 1920 x 1080 |
| Input Video Formats | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160/60p |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 6 ports |
| Connectivity | LAN, Wi-Fi |
| PC Interface | USB-C, HDBaseT, serial RS-232 |
| LCD Backlight Technology | Direct View LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Picture Enhancements | 120% Rec.709 color gamut |
| Speaker System | 2 speakers |
| Video Wall Display Unit | 3-in-1 SMD |
| Storage Capacity | 64 GB (56 GB available) |
| USB | Yes |
| Included Accessories | Remote control, 7 x LED modules, remote control, maintenance tool, motorized floor stand, power cord |
| Voltage | AC 100-120 V (50/60 Hz) |
| Power Consumption Operational | 900 Watt |
| Dimensions (WxDxH) - with stand | 70.9 in x 29.9 in x 79.6 in |
| Weight | 548.95 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED video wall |
| Power Consumption (Max) | 2000 Watt |
| Power Consumption Operational | 900 Watt |
| Commercial Use | Yes - digital signage |
| Operating System | Android OS 9.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 6 ports |
| PC Interface | USB-C, HDBaseT, serial RS-232 |
| Modes | Landscape mode |
| Picture Enhancements | 120% Rec.709 color gamut |
| Design | Foldable, modular design |
| Dimensions | With stand |
| Width | 70.9 in |
| Depth | 29.9 in |
| Height | 79.6 in |
| Weight | 548.95 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 7 x LED modules, remote control, maintenance tool, motorized floor stand, power cord |
| Cables Included | CAT5A cable - 16 ft ¦ IR extender cable |
| Compliant Standards | IP54 front, cTUVus, FCC, RoHS |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-120 V (50/60 Hz) |
| Power Consumption Sleep | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | Direct View LED |
| Image Contrast Ratio | 6000:1 |
| Brightness | 450 cd/m² |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 170° |
| Additional Features | Glue-on-Board (GOB) surface treatment technology, 24/7 operation time, 14-bit LED grayscale, Fine Pixel Pitch LED |
| Connections | |
| Connector Type | 6 x HDMI input ¦ 3 x USB 2.0 ¦ Infrared input ¦ USB-C with Power Delivery ¦ Audio line-in ¦ HDBaseT input ¦ 2 x HDMI output ¦ Audio line-out ¦ USB (power only) ¦ RS-232 |
| Video Features | |
| Input Video Formats | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160/60p |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 40 Watt |
| Additional Features | Harman/Kardon Speaker System |
| Speakers | 2 x speaker - 20 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 74.8 in |
| Depth (Shipping) | 31.5 in |
| Height (Shipping) | 80.8 in |
| Weight (Shipping) | 939.16 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi |
| Stands & Mounts | |
| Stand | Included |
| Stand Design | Floor standing |
| Stand Color | Black |
| Stand Features | Built-in motorized height adjustment, 360° move around |
| Media Player | |
| USB Port | Yes |
| Configuration | MTK 9669 - 4 GB DDR4 - 64 GB (56 GB available) - Mali G51 MP2 |
| Video Wall Display Unit | |
| Pixel Pitch | 1.56 mm |
| LED Type | 3-in-1 SMD |
| LED Lifetime | 100000 hours |
| Maintenance | Front |
| Video Wall | |
| Resolution | 1920 x 1080 |
| Diagonal Size | 135" |
| Number of Screens | 100 |
