StarTech - Startech

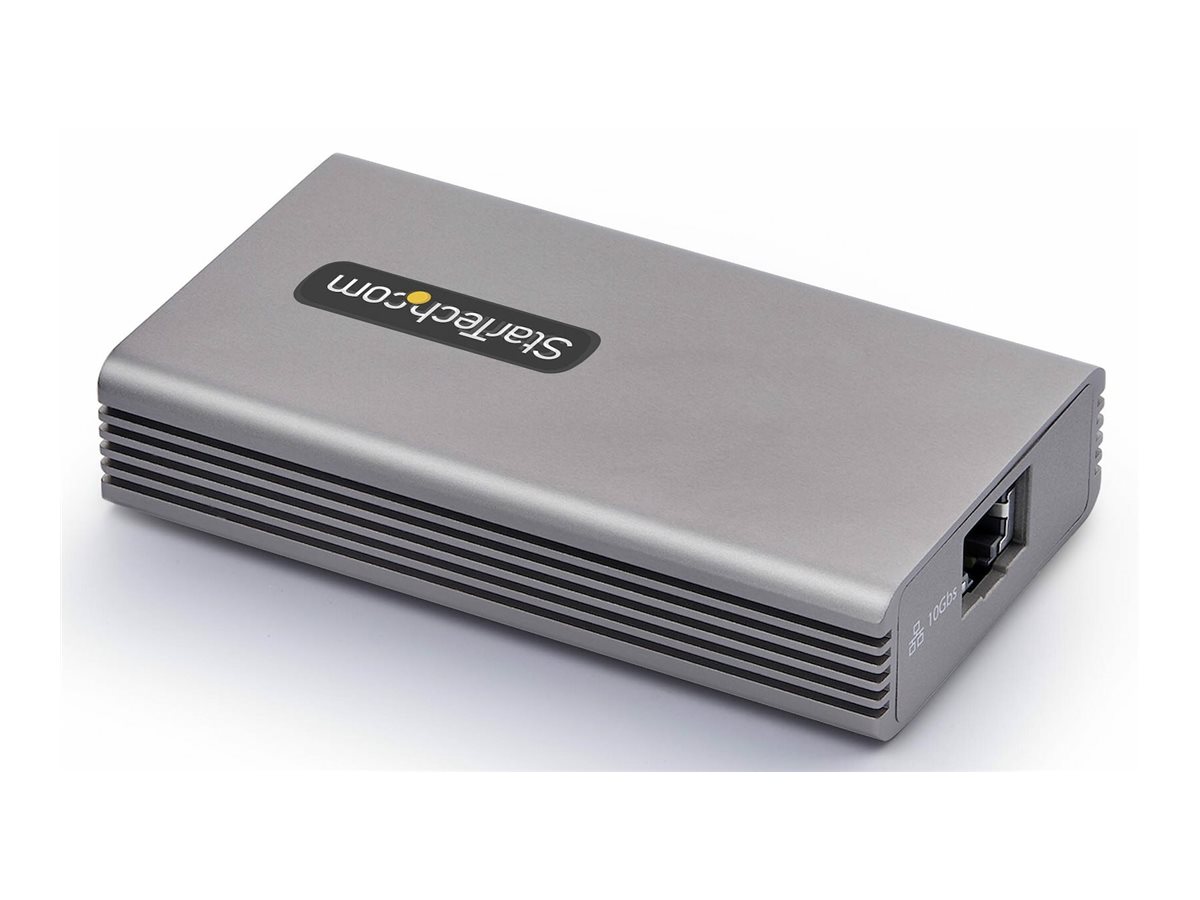

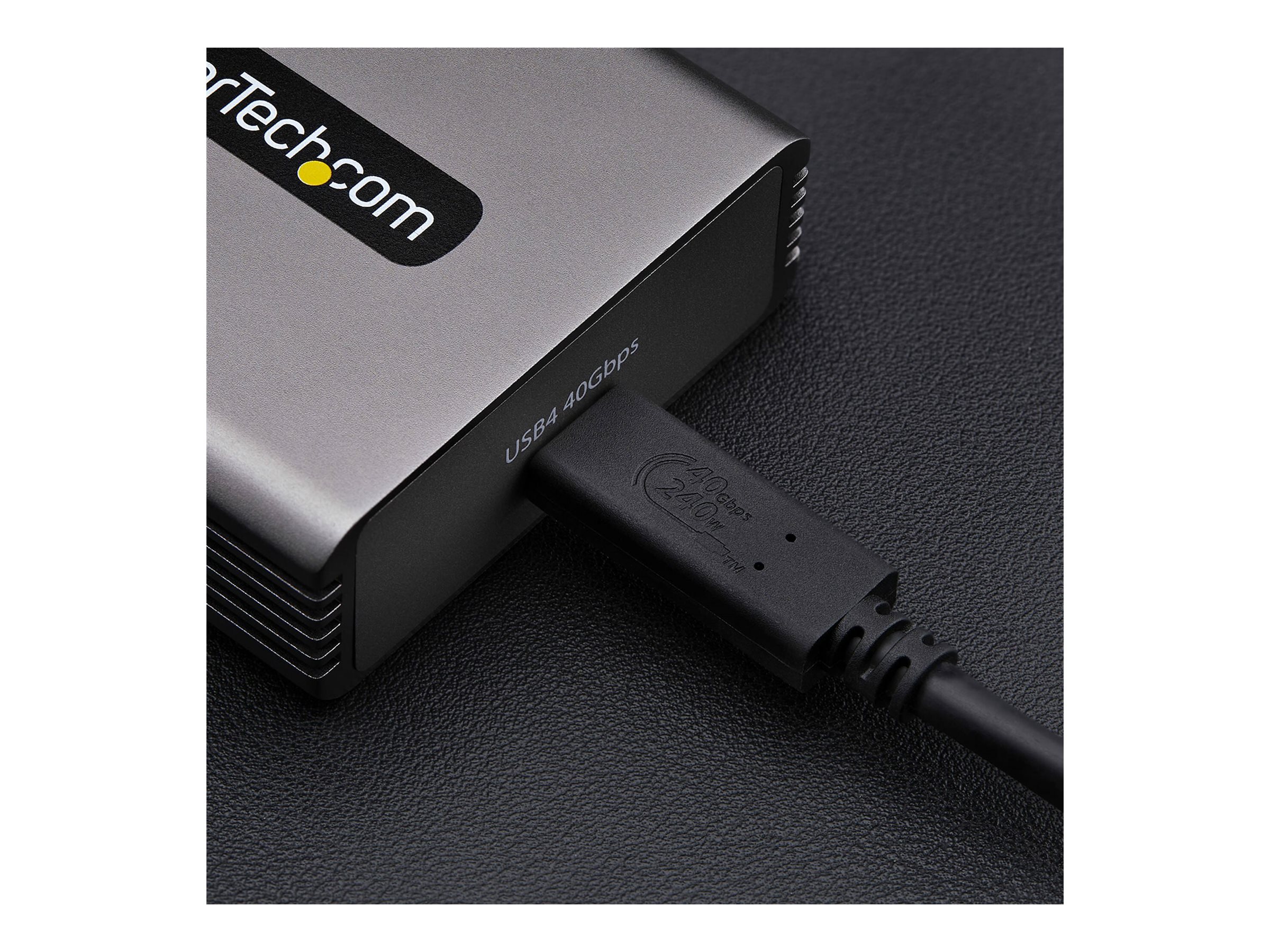

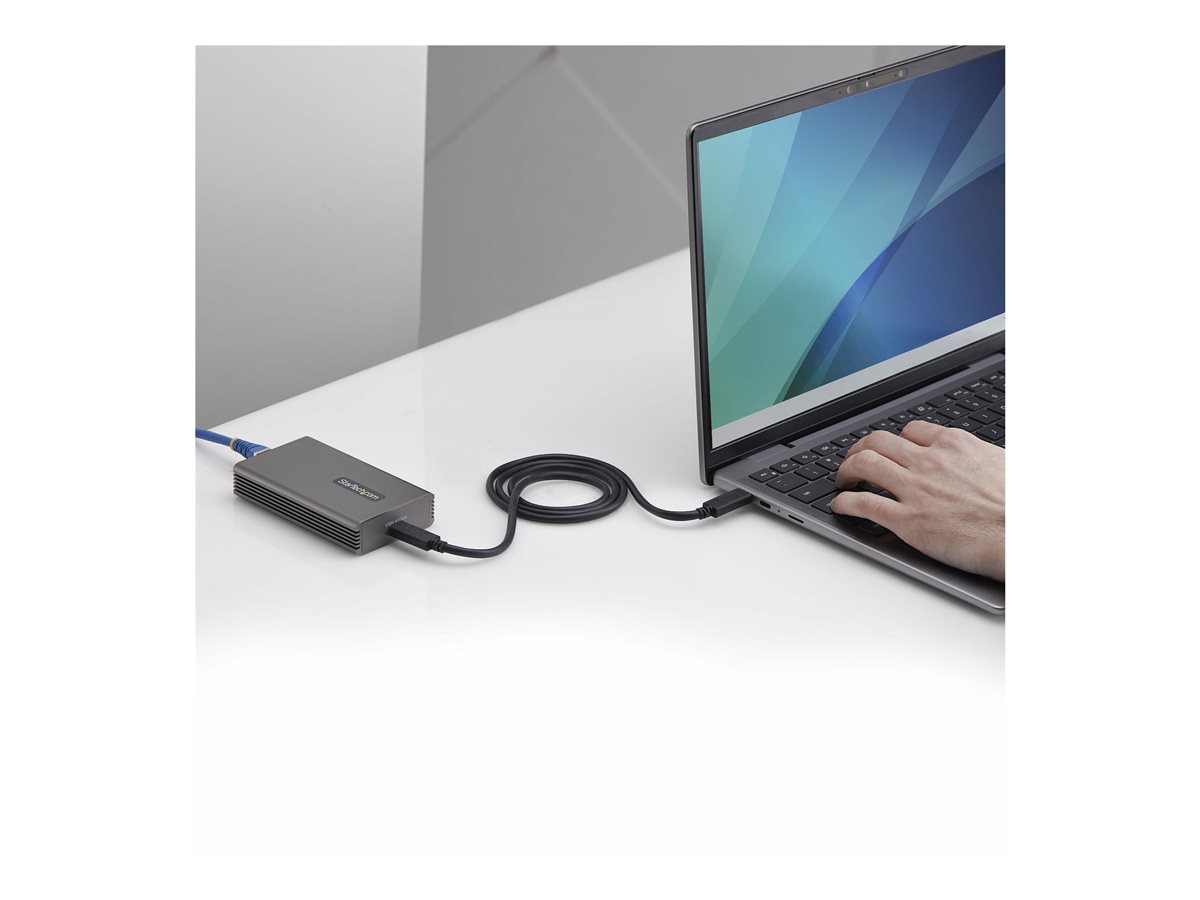

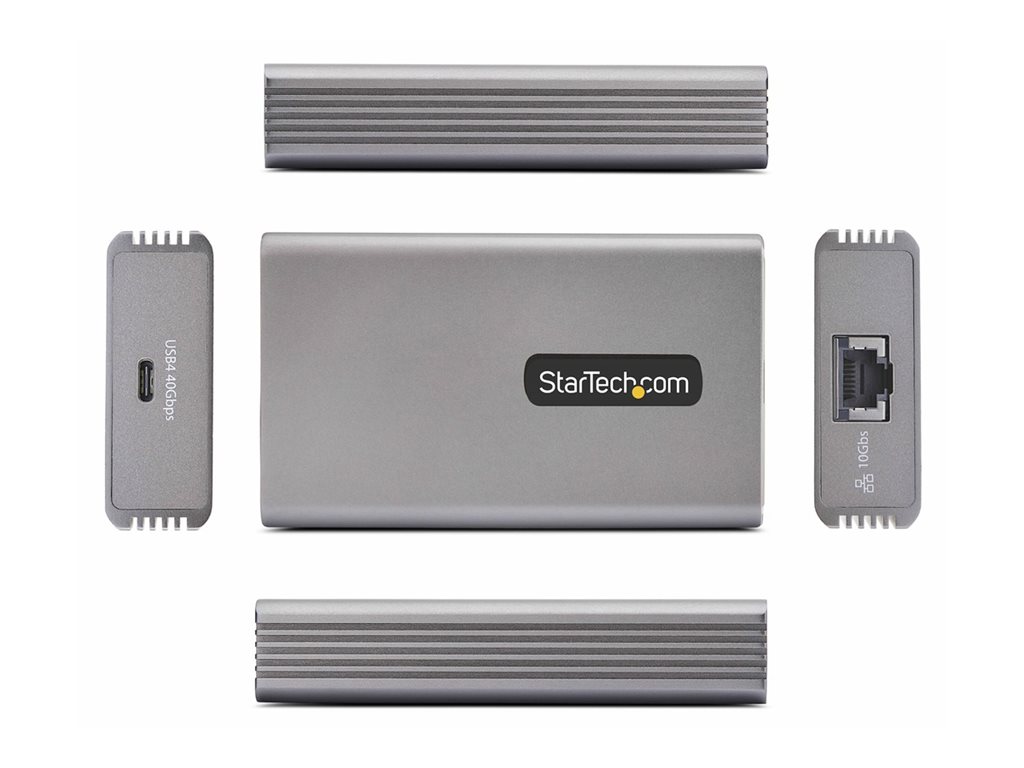

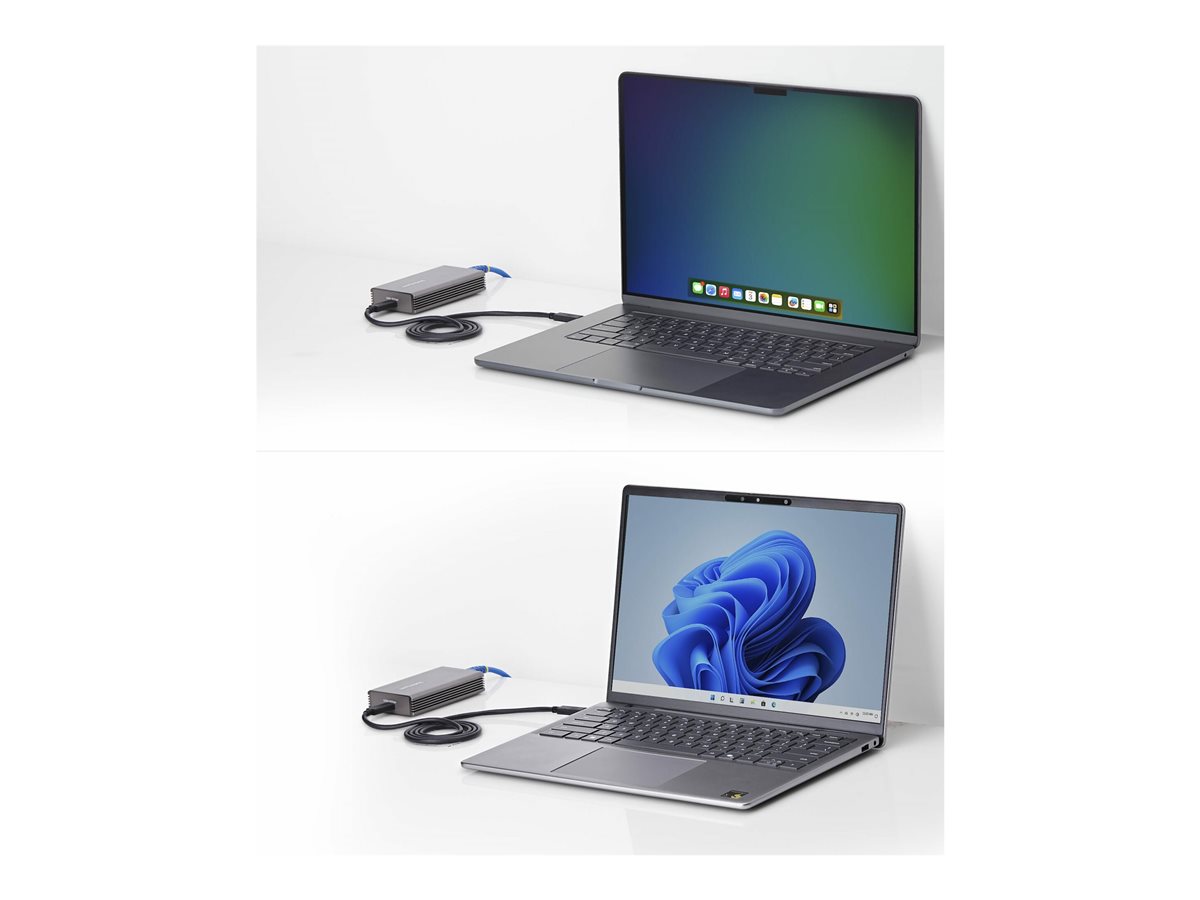

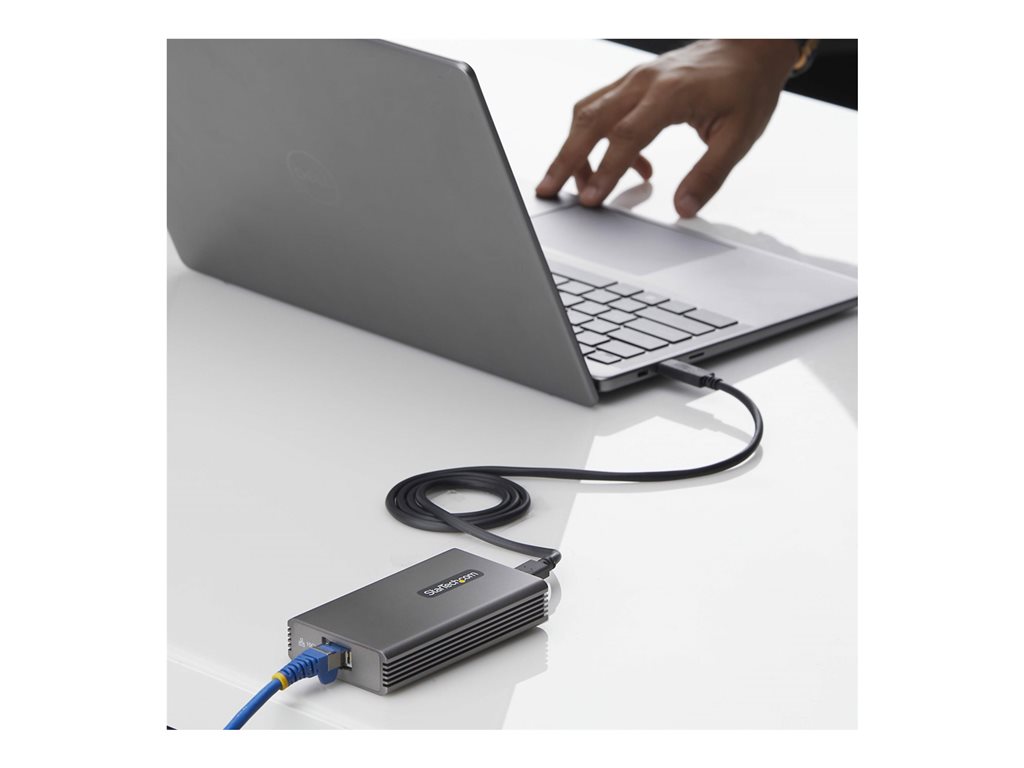

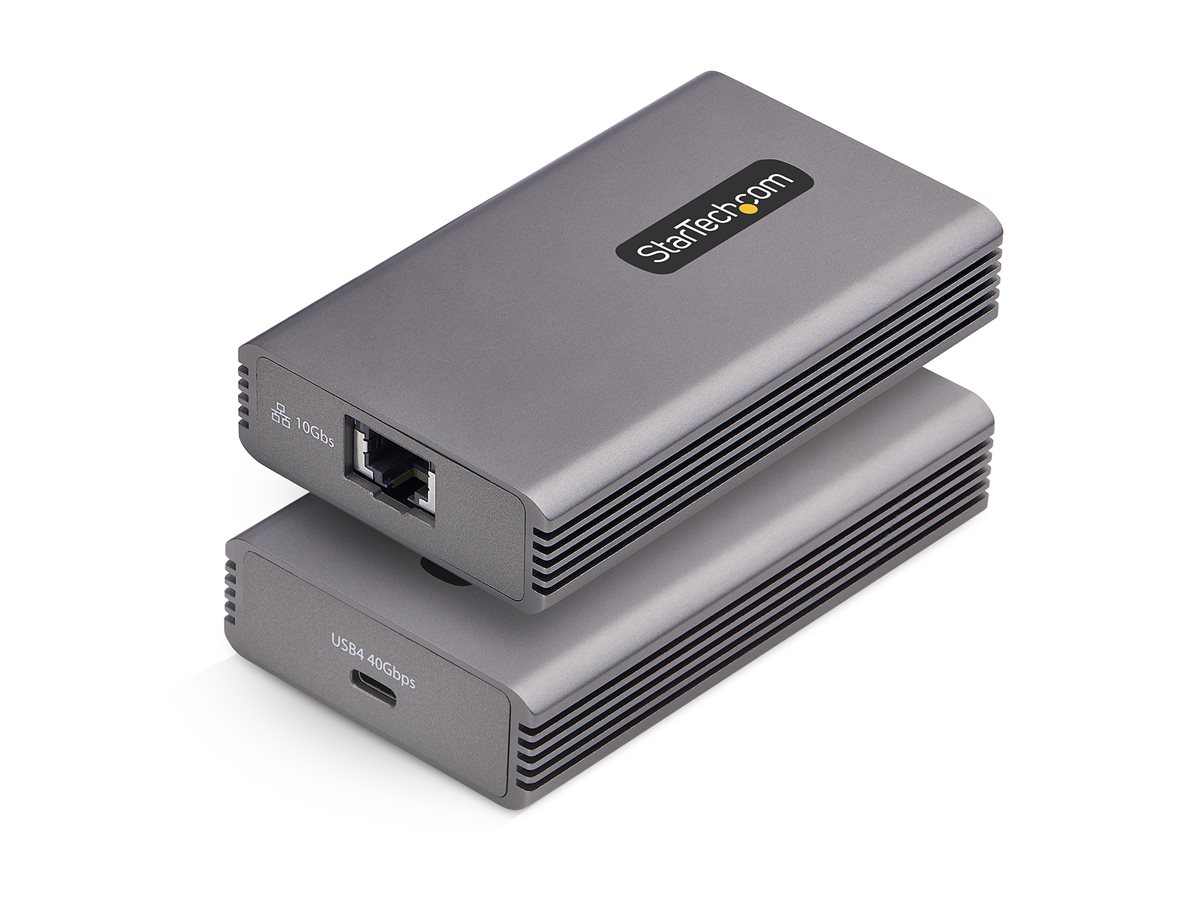

Network adapter - USB4 / Thunderbolt 5 - 1/2.5/5/10GBase-T x 1 - gray - TAA Compliant
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Startech - network adapter - USB4 / Thunderbolt 5 - 1/2.5/5/10GBase-T x 1 - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB4 / Thunderbolt 5 |
| Ports | 1/2.5/5/10GBase-T x 1 |
| Dimensions (WxDxH) | 3 in x 4.3 in x 1.1 in |
| Weight | 18.34 oz |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, NBase-T |
| Data Link Protocol | 100Mb LAN, 1GbE, 10GbE, 5GbE, 2.5GbE |
| Data Transfer Rate | 40 Gbps |
| Capacity | Jumbo frame size: 9000 bytes |
| Processor | ASMedia / Marvell ASM2464PDX / AQC113-B1 |
| Compliant Standards | IEEE 802.11ax, IEEE 802.11be |
| Color | Gray |
| System Requirements | Microsoft Windows 10 / 11, Apple macOS 14.2 or later |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB4 / Thunderbolt 5 |
| Expansion / Connectivity | |
| Interfaces | 1 x 10GBase-T - RJ-45 - female ¦ 1 x Thunderbolt 5 - 24 pin USB-C - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

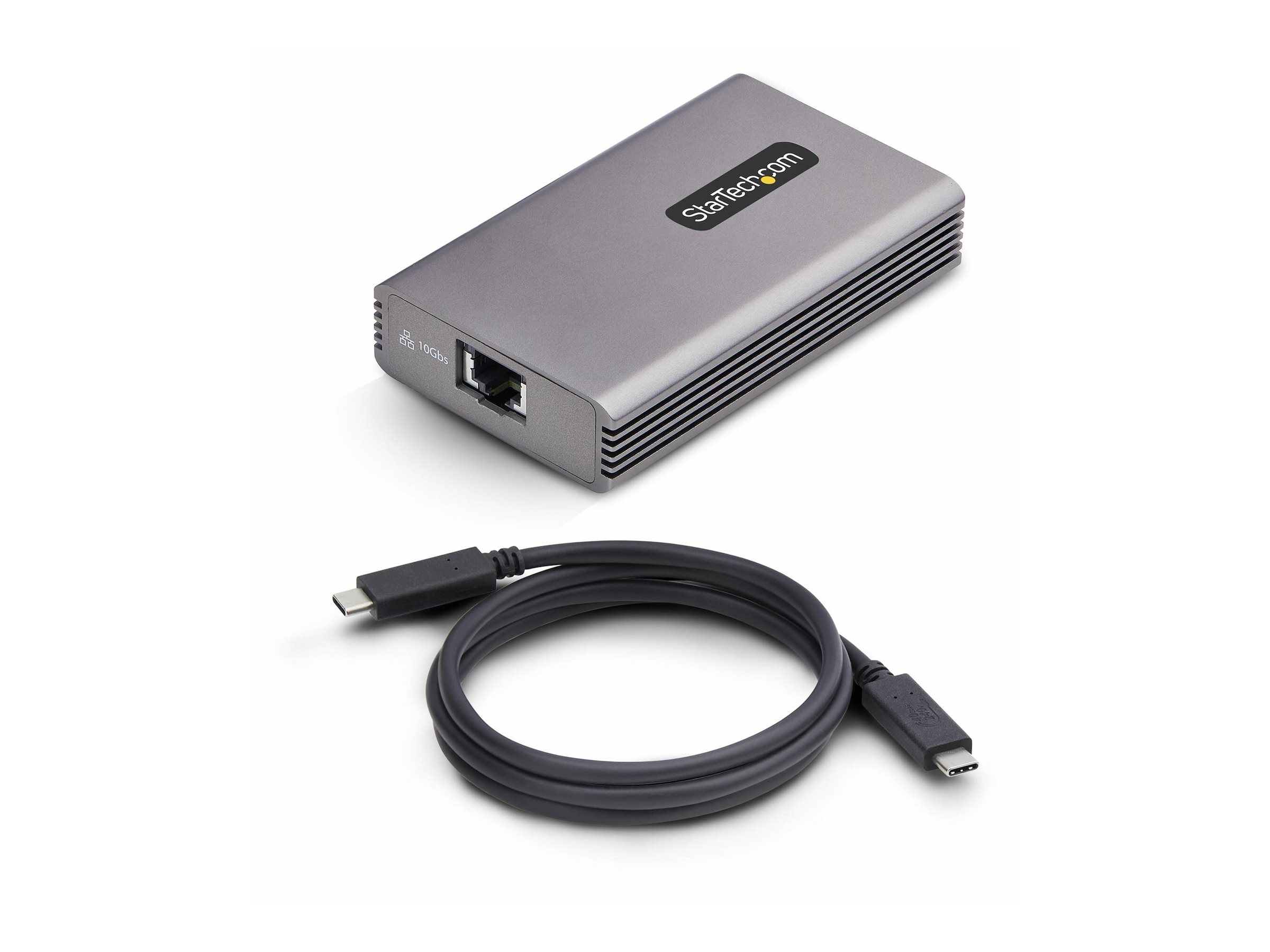

| Cables Included | 1 x network adapter (external) ¦ 1 x USB4 cable (external) - 1.6 ft |
| MTBF | 50,000 hours |
| Compliant Standards | Plug and Play, RoHS, WEEE, RCM |
| Color | Gray |
| TAA Compliant | Yes |
| Networking | |
| Ports | 1/2.5/5/10GBase-T x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T, NBase-T |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 40 Gbps |
| Capacity | Jumbo frame size: 9000 bytes |
| Status Indicators | Link/activity |
| Features | Auto-negotiation, WOL, auto-uplink (auto MDI/MDI-X), USB powered, PXE support, promiscuous mode, aluminum housing, passive cooling |
| Compliant Standards | IEEE 802.11ax, IEEE 802.11be |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Apple macOS 14.2 or later |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 20 - 80% RH |
| Processor / Memory | |
| Processor | ASMedia / Marvell ASM2464PDX / AQC113-B1 |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 4.3 in |
| Height | 1.1 in |
| Weight | 18.34 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.7 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 2.9 in |
