Planar - Planar VPI-1.9

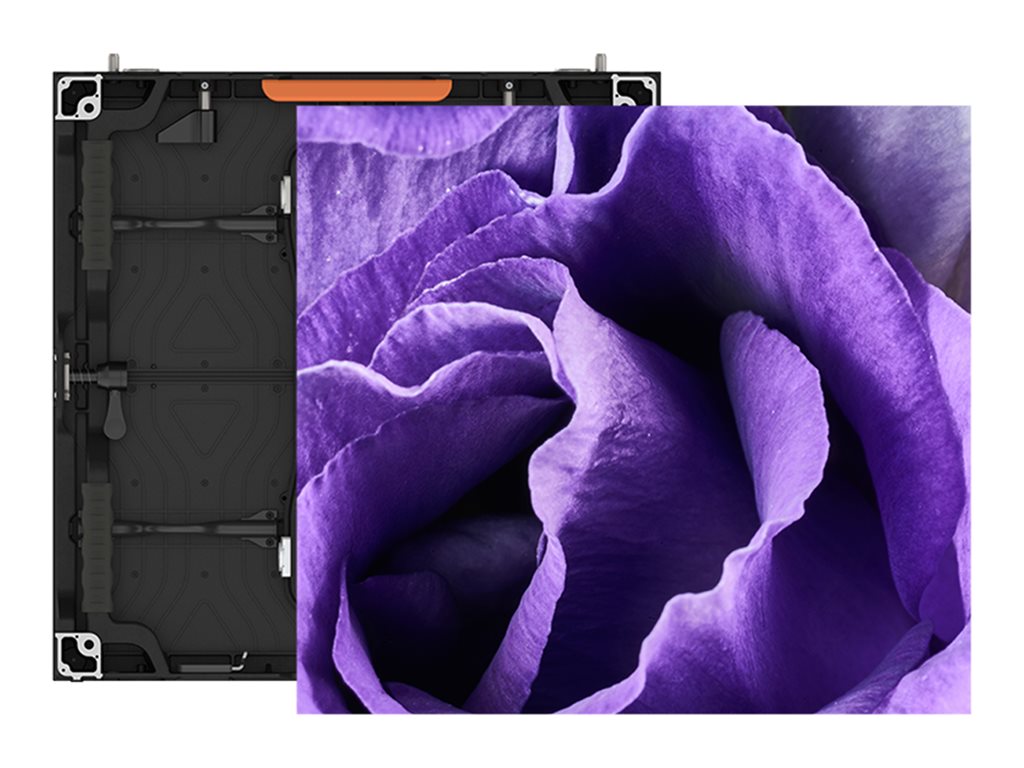

Venue Pro Series LED display unit - digital signage 27.83" 128 x 128 (LED unit) / 256 x 256 (cabinet) per unit
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Planar VPI-1.9 Venue Pro Series LED display unit - for digital signage |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 3840 Hz Refresh Rate |
| TV Tuner | No tuner |
| Commercial Features | Constant current drive, quick-lock system, magnetically-attachable cabinets |
| Video Wall Display Unit | 27.83" 128 x 128 (LED unit) / 256 x 256 (cabinet) |
| Voltage | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) - display unit | 9.8 in 9.8 in |
| General | |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Series | Venue Pro Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Dimensions | Display unit |
| Width | 9.8 in |
| Height | 9.8 in |
| Miscellaneous | |
| Compliant Standards | IP30 |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Video Wall Display Unit Power Consumption (Max) | 160 W |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Display | |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 3840 Hz Refresh Rate |
| Color Temperature | 3000 - 10000K |
| Image Contrast Ratio | 6000:1 |
| Brightness | 1000 cd/m² |
| Viewing Angle | 150° |
| Viewing Angle (Vertical) | 130° |
| Commercial Features | Constant current drive, quick-lock system, magnetically-attachable cabinets |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Display unit - 9.8 in 9.8 in ¦ Cabinet - 19.7 in x 2.9 in x 19.7 in x 17.6 lbs |
| Video Wall Display Unit | |
| Pixel Pitch | 1.95 mm |
| Pixel Density | 262144 pixels/m² |
| Resolution | 128 x 128 (LED unit) / 256 x 256 (cabinet) |
| LED Lifetime | 100000 hours |
| Maintenance | Front or rear |
| Cabinet Diagonal Size | 27.83" |
| Modules Configuration (Per Cabinet) | 2x2 |
