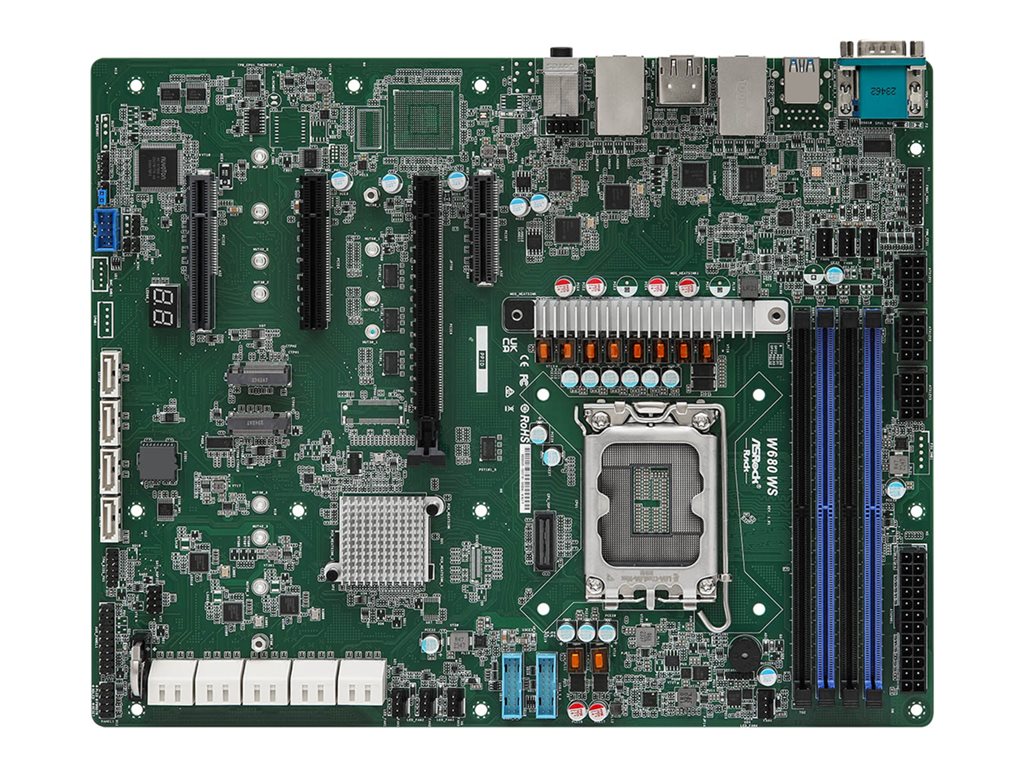

ASRock - ASRock Rack W680 WS
Motherboard - ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1 - 4 x Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock
W680 WS
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack W680 WS - motherboard - ATX - LGA1700 Socket - W680 |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W680 |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size | 192 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC, unbuffered |
| Storage Ports | 14 x SATA-600 (RAID) |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (4 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 4 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W680 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.1 V) ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x8 ¦ 2 x PCIe 4.0 x4 ¦ 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 14 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 1 x SPI - header ¦ 1 x VGA - header ¦ 1 x speaker - header ¦ 1 x SGPIO - header ¦ 1 x audio - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | 2 x M.2 screws, IO shield |
| Cables Included | 1 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | SPI BIOS flashing, ACPI 6.4 support, SMBIOS 2.8 support, UEFI BIOS |
| Hardware Monitoring | Temperature detection, CPU core temperature, chassis fan tachometer, fan speed detection, system voltage |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Intel I210 |
| Network Interfaces | 4 x Gigabit Ethernet |
| Supported RAM | |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 4400 MT/s, 4000 MT/s, 3600 MT/s (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
