Sharp - Sharp XP-V801U-W
3LCD projector - 8000 lumens - WUXGA (1920 x 1200) - 16:10 - 4K - no lens - LAN - white - with NEC InstaCare Next Business Day Exchange
Sharp
XP-V801U-W
0074000704596
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Sharp XP-V801U-W - 3LCD projector - no lens - LAN - white |
| Device Type | 3LCD projector - 4K |
| Color | White |
| Bundled Services | NEC InstaCare Next Business Day Exchange |
| Brightness | 8000 lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Color Support | 1.07 billion colors |
| Lens | No lens |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode |
| Video Input | LAN |
| Video Modes | 480i, 480p, 576p, 576i, 720p, 1080i, 1080p, 4K |
| Platform | AMX, Crestron |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 467 Watt |
| Dimensions (WxDxH) | 19.8 in x 16.2 in x 6.6 in |
| Weight | 24.69 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | 3LCD projector - 4K |
| Bundled Services | NEC InstaCare Next Business Day Exchange |
| Networking | Ethernet |
| Enclosure Color | White |
| Expansion / Connectivity | |

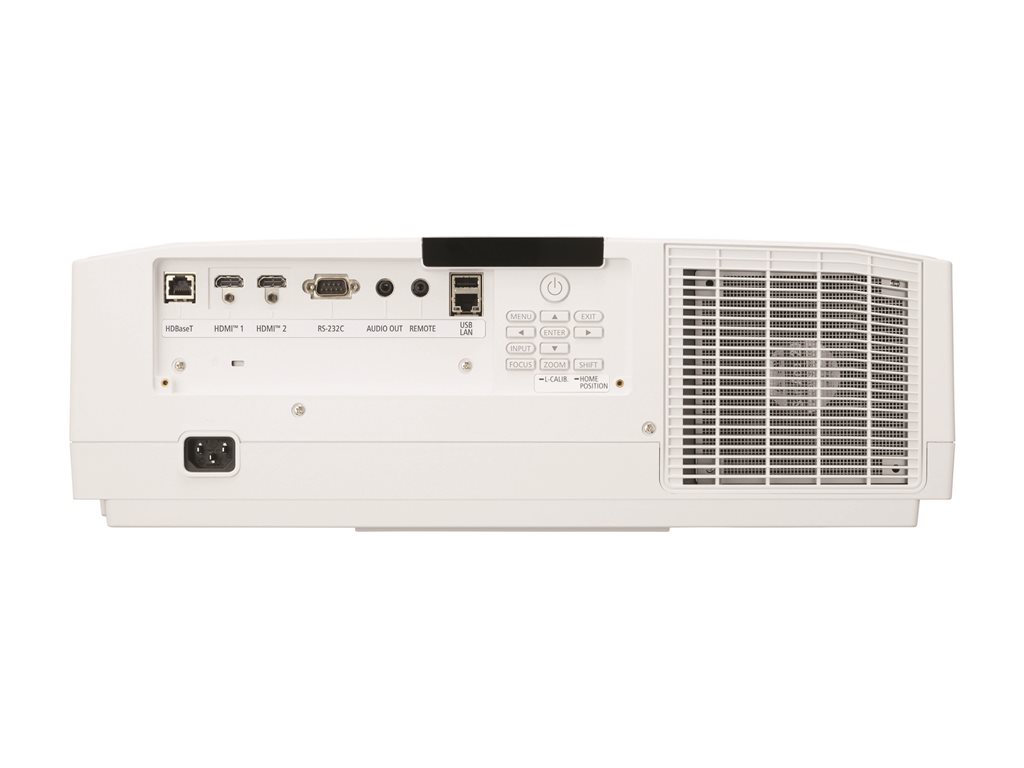

| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x HDBaseT input - RJ-45 ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ 1 x USB 2.0 - 9 pin USB Type A (management) ¦ 1 x remote control - mini-phone stereo 3.5 mm (management) ¦ 1 x network - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 5 years - 20000 hours |
| Miscellaneous | |
| Included Accessories | Remote control, batteries, lens hole cover, lens anti-theft screw, security sticker |
| Cables Included | Power cable |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | HDCP 2.2, UL 62368-1 Third Edition, FCC Part15 Subpart B Class B (U.S.A.), CAN/CSA C22.2 No. 62368-1-19, ICES-003 issue 7 |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 467 Watt |
| Power Consumption Stand by | 0.6 Watt |
| Power Consumption Sleep | 0.17 Watt |
| Software / System Requirements | |
| Software Included | ProAssist Software |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 43 dB |
| Sound Emission (Economic Mode) | 32 dB |
| Video Input | |
| Video Interfaces | HDBaseT, HDMI, VGA |
| Video Modes | 480i, 480p, 576p, 576i, 720p, 1080i, 1080p, 4K |
| Dimensions & Weight | |
| Width | 19.8 in |
| Depth | 16.2 in |
| Height | 6.6 in |
| Weight | 24.69 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.3 in |
| Shipping Depth | 19.3 in |
| Shipping Height | 10.2 in |
| Shipping Weight | 29.54 lbs |
| Projector | |
| Brightness | 8000 lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Projection Distance | 2.4 ft - 69 ft |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 4096 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Display Format | 2,304,000 pixels (1920 x 1200) x 3 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 85 Hz x 153 kHz |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode |
| Controls & Adjustments | Keystone correction, zoom, focus, pincushion |
| Features | PJlink, Geometric Correction, Edge blending, Stacking Function, NaViSet Administrator 2 |
| Lens | |
| Type | No lens |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | AMX, Crestron |
