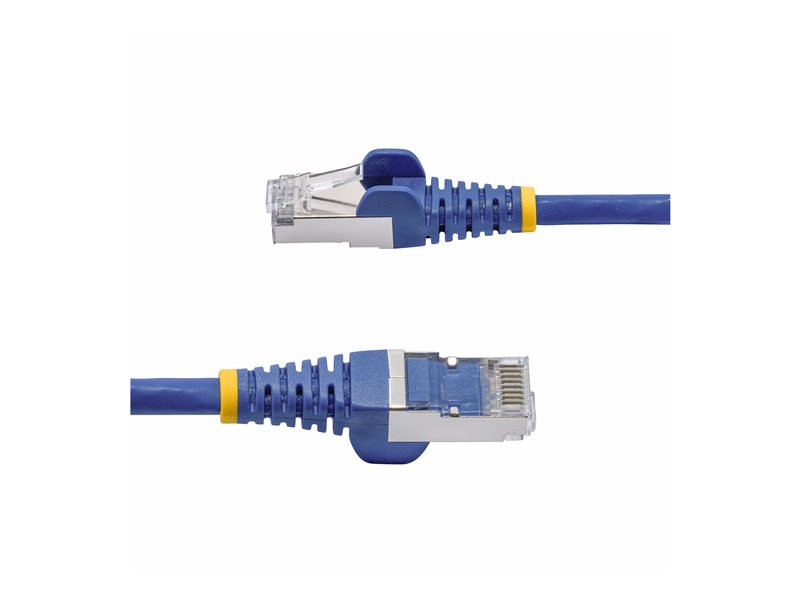

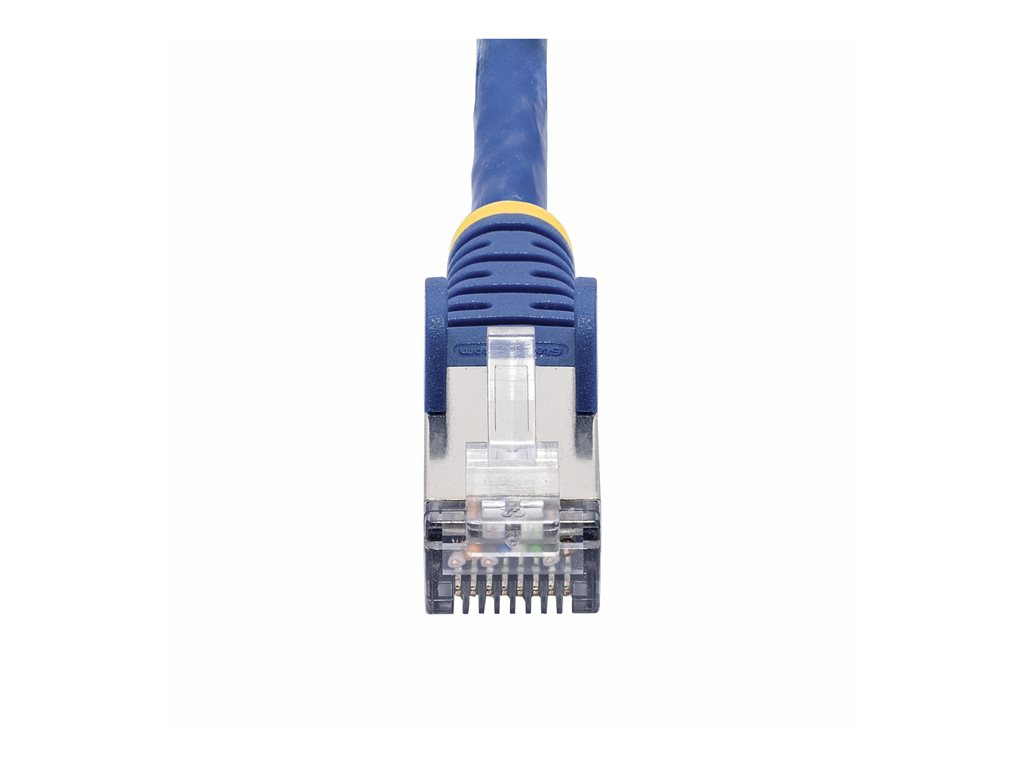

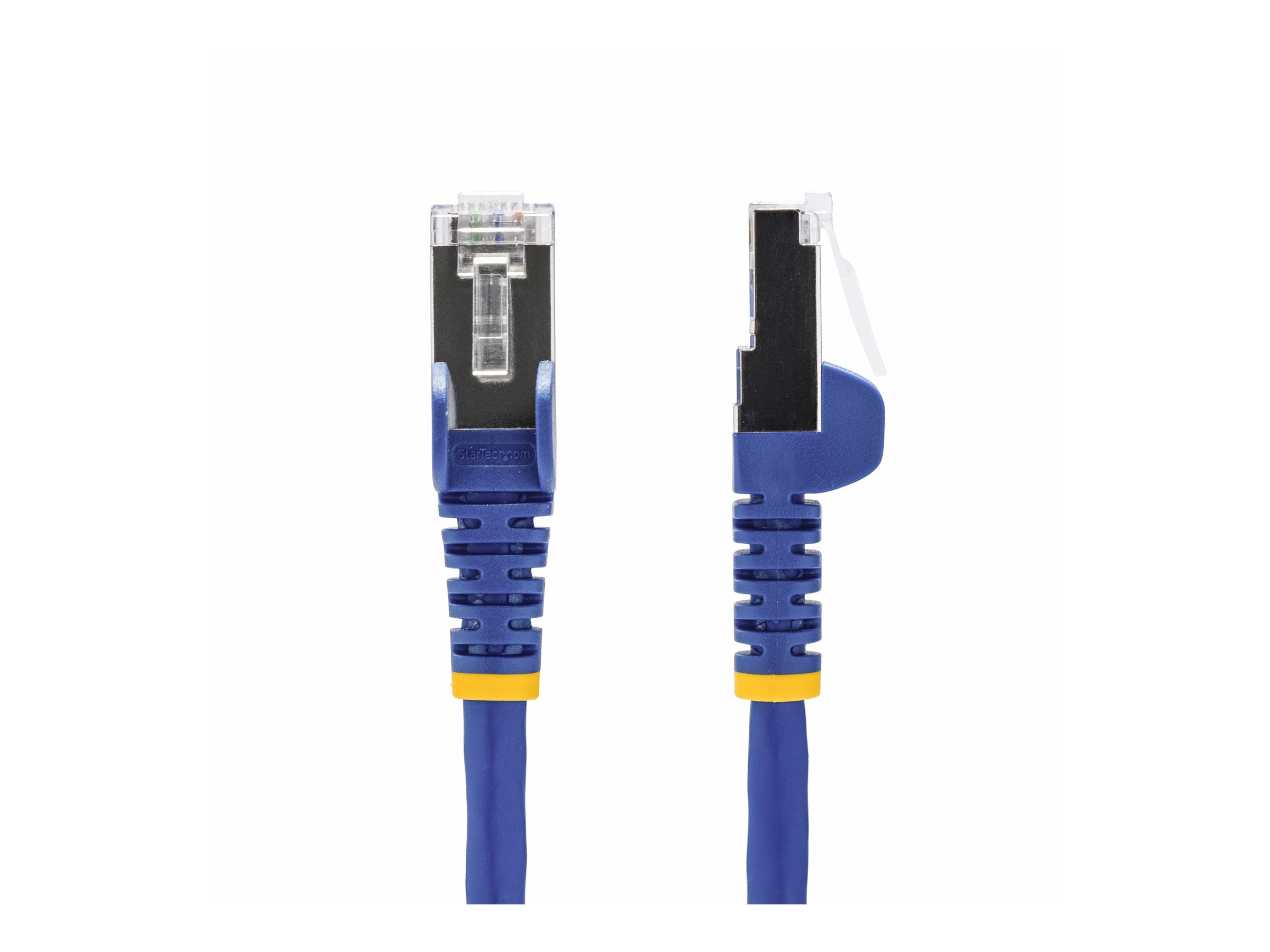

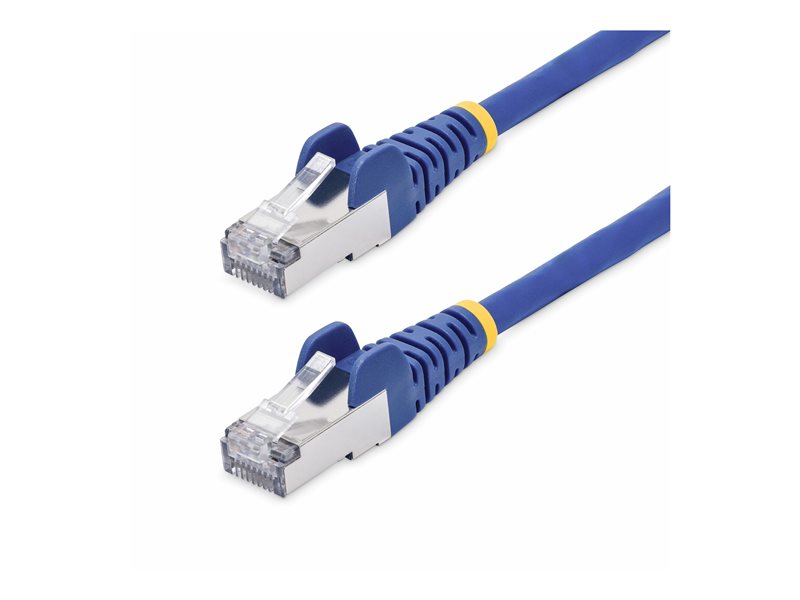

StarTech - Startech 1ft Blue CAT8 Ethernet Cable, Snagless, S/FTP, 25G/40G
Patch cable - RJ-45 (M) to RJ-45 (M) - 30 cm - 0.2 in - S/FTP - 50 micron - CAT 5/5e/6/6a/8 - IEEE 802.3bt/IEEE 802.3ba - halogen-free, passive, snagless - blue
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Startech 1ft Blue CAT8 Ethernet Cable, Snagless, S/FTP, 25G/40G - patch cable - 30 cm - blue |
| Type | Patch cable - CAT 5/5e/6/6a/8 - IEEE 802.3bt/IEEE 802.3ba |
| Technology | S/FTP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminum mylar foil with tinned copper braid |
| Wires per Cable | 8 wires |
| Features | Halogen-free, passive cable, snagless, flame retardant, strain relief, pure bare copper conductors, up to 40 Gbps, 750 mating cycles, EMI protection, 100W PoE++ support, bending radius 90mm |
| Cable Length | 30 cm |
| Diameter | 0.2 in |
| Core / Cladding Diameter | 50 micron |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Blue |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 5/5e/6/6a/8 - IEEE 802.3bt/IEEE 802.3ba |
| Technology | S/FTP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminum mylar foil with tinned copper braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 26 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Core / Cladding Diameter | 50 micron |
| Plated Connector | Gold |
| Features | Halogen-free, passive cable, snagless, flame retardant, strain relief, pure bare copper conductors, up to 40 Gbps, 750 mating cycles, EMI protection, 100W PoE++ support, bending radius 90mm |
| Cable Length | 30 cm |
| Diameter | 0.2 in |
| Color | Blue |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | WEEE, TIA/EIA T568B - up to 2000 MHz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.7 in |
| Shipping Depth | 7.9 in |
| Shipping Height | 0.2 in |
| Shipping Weight | 1.06 oz |
